Installation

6 3A1189G

General Installation Information

• The Typical Installation illustrations provided on

pages 4 - 5 are only guidelines for installing system

components. Contact your Graco distributor for

assistance in planning a system to suit your needs.

• To ensure your system is compatible with fluids

being pumped, always use genuine Graco replace-

ment parts and accessories.

• Tighten all connections firmly to avoid air and/or

fluid leaks.

• Storage tanks should be securely anchored to pre-

vent shifting or tipping when empty or full.

Identification Label for CE Mark

Locate the Diesel Exhaust Fluid (DEF) System identifi-

cation label adhered to the mounting bracket.

Use a permanent marker or ink pen to write the installa-

tion date in the space provided and circle the Part Num-

ber for the model you ordered.

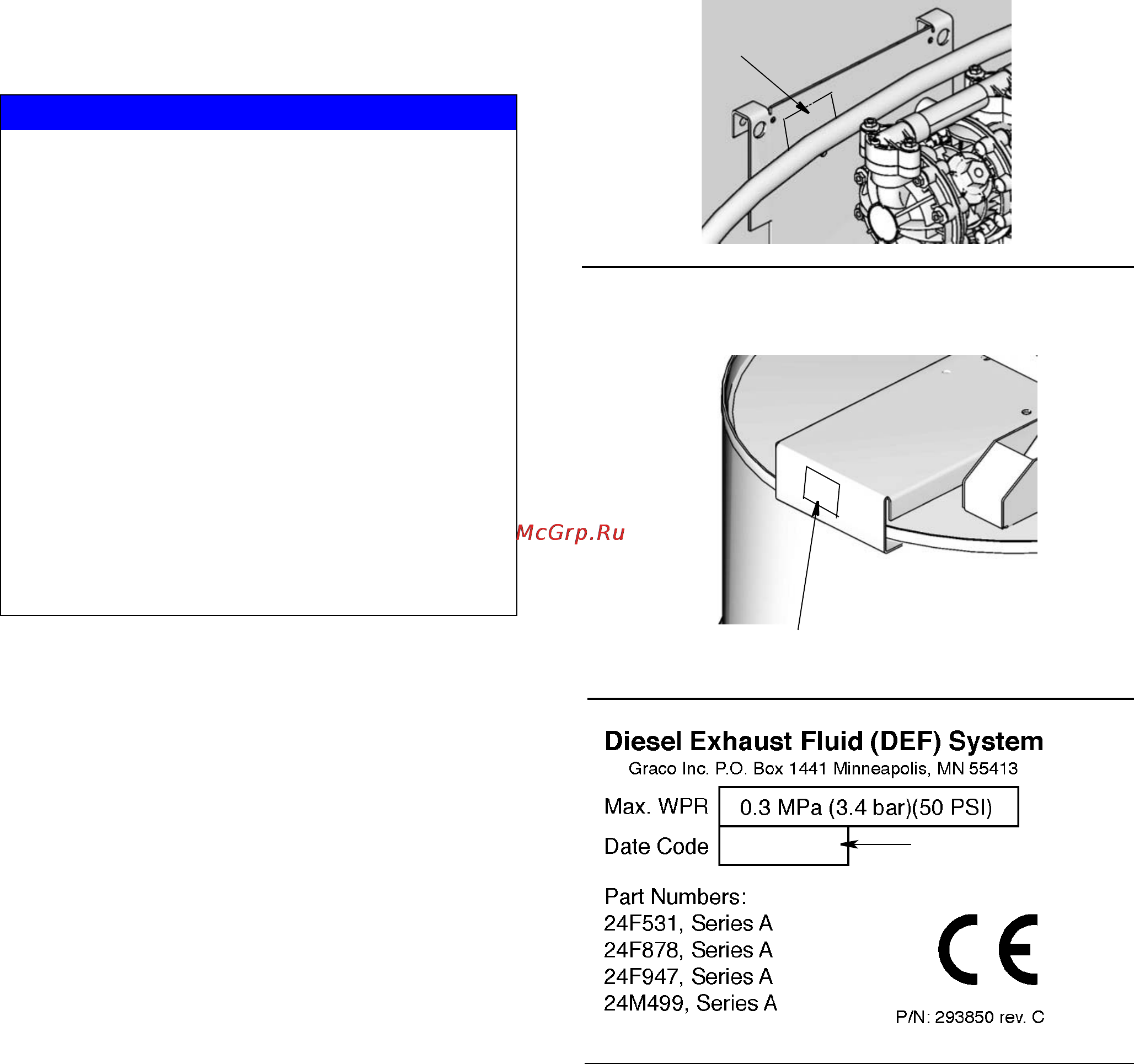

IG. 3 is provided to assist you in finding the location of

this label on the bracket and the Date Code field on the

label.

NOTICE

To maintain the integrity and purity of the AUS32

(Aqueous Urea Solution 32.5%) and ensure proper

operation of equipment:

• Once the system is assembled it must remain

sealed to insure the integrity of the fluid. Break-

ing the seal on the system can lead to fluid con-

tamination.

• After dispensing DEF, drain all the fluid from the

nozzle, making sure it is pointing downward

when stored in the nozzle holder. DEF remaining

in the nozzle tip and exposed to air will crystallize

and can plug the nozzle.

• DO NOT lay the dispensing nozzle on the ground

or on any surface that may contaminate the noz-

zle tip and compromise the purity of the DEF.

FIG. 3

Installation Date

Drum Bracket Label

Wall Bracket Label
