Graco D200si [11/42] S20 3 in single post and d60 3 in dual post
![Graco D200si [11/42] S20 3 in single post and d60 3 in dual post](/views2/1193758/page11/bgb.png)

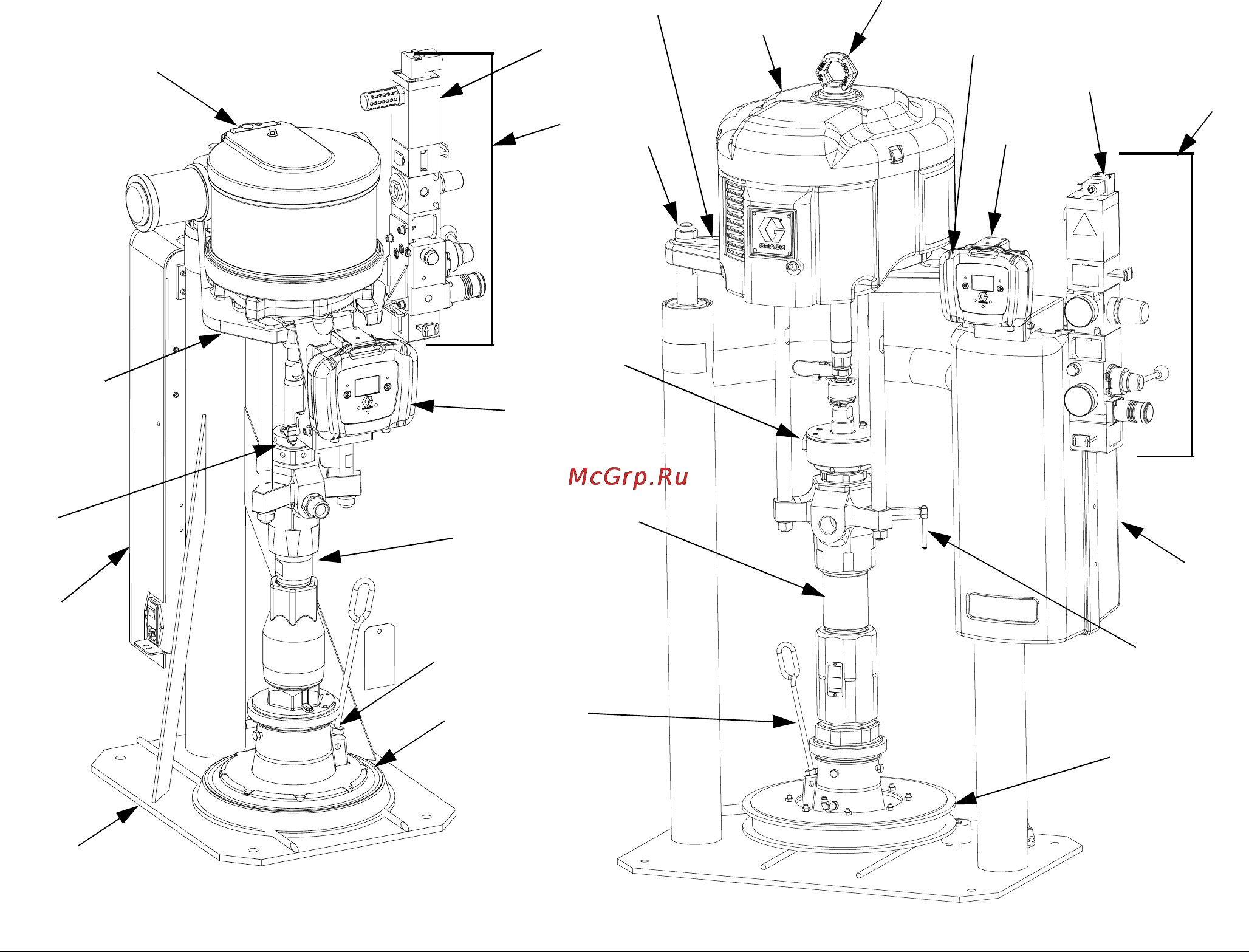

Component Identification
313526L 11
S20 3 in. Single Post and D60 3 in. Dual Post
Key:
ARam Assembly
B Air Motor
C Displacement Pump
DPlaten
F Remote DataTrak (single ram systems) or
Display Module (tandem systems)
G Integrated Air Controls (see F
IG
. 3)
H Lift Ring
J Platen Bleed Port
K Power Supply Box (under shrouding)
P Pump Bleed Valve
R Enclosed Wet Cup
S Fluid Line (not supplied, see F
IG
. 1)
T Air Line (not supplied, see F
IG
. 1)
U Air Line Drain Valve (not supplied, see F
IG
. 1)
V Air Filter (not supplied, see F
IG
. 1)
W Bleed Type Air Shutoff Valve (not supplied, see F
IG
. 1)
X Air Motor Solenoid
F
IG
. 2
B
A
F
G
K
D
J
R
C
X
(Note: Do not use motor
lift ring to lift entire
system.)
Lift Location
Lift Location
r_255648_313527_6a
Model CM9HLB Shown Model CM2MRY Shown
r_255648_313527_5a
G
F
B
J
D
K
R
C
X
A
Lift
Location
H
P
