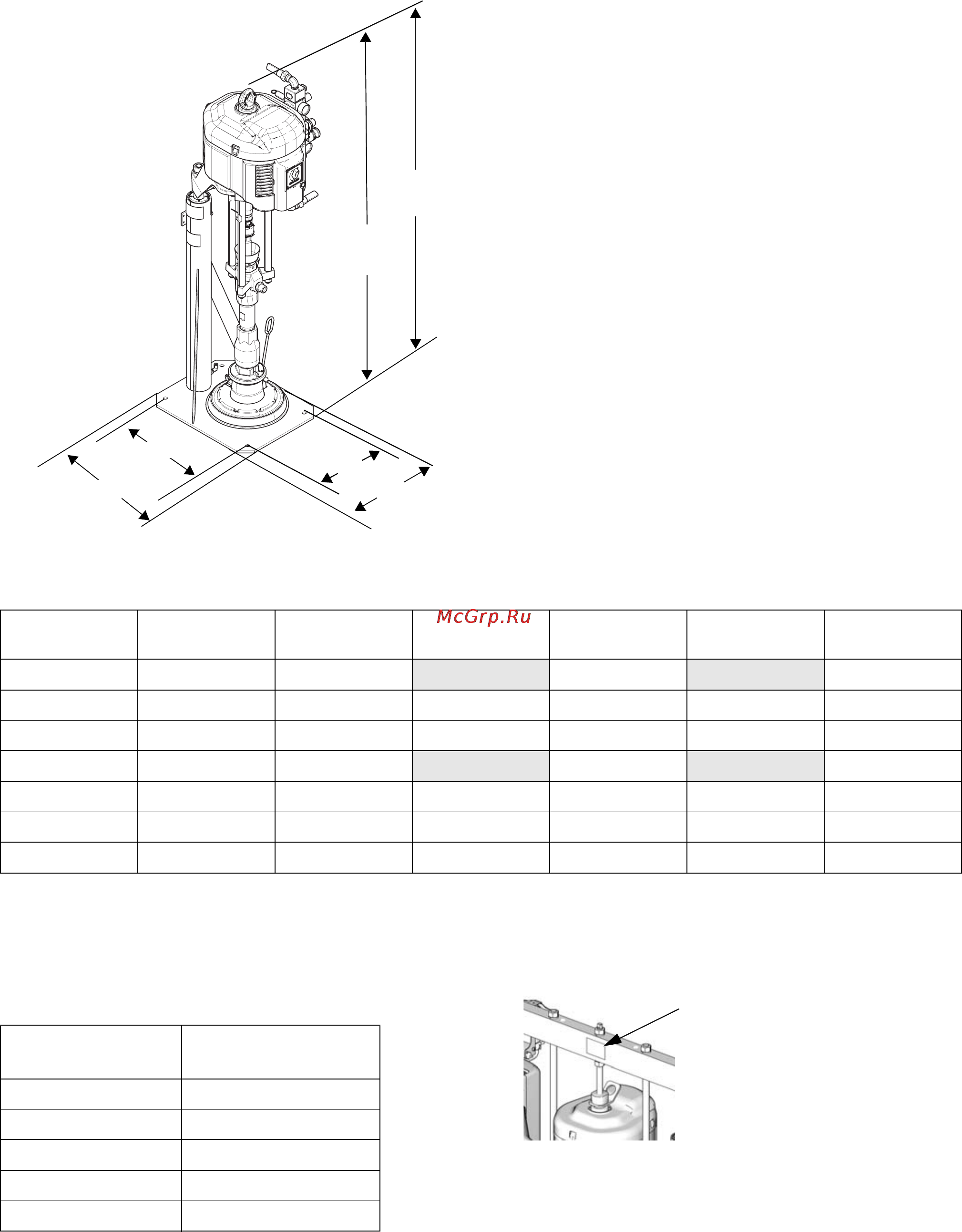

Dimensions
313526L 35
Dimensions
Weight
Use the table below to identify the maximum weight for
each available platen size.
See the identification plate (ID) for the weight of your
supply system.
WLD
S30
(ram up)
A
(ram down)
B
E
F
C
D
S20
(NXT)
Ram Model
A
in. (mm)
B
in. (mm)
C
in. (mm)
D
in. (mm)
E
in. (mm)
F
in. (mm)
L20c
69 (1752.6) 44 (1117.6) 21 (533.4) 22 (558.8)
S20 (NXT)
84 (2133.6) 59 (1498.6) 16 (406.4) 19 (482.6) 11 (279.4) 17 (431.8)
S20
59.3 (1506) 35.8 (909) 16 (406.4) 19 (482.6) 11 (279.4) 17 (431.8)
S20c
90 (2286) 65 (1651) 26.0 (661) 22.1 (562)
D60
89 (2260.6) 59 (1498.6) 14 (355.6) 18 (457.2) 24 (609.6) 28 (711.2)
D200
102.3 (2599) 64.8 (1646) 21.0 (533) 25.0 (635) 38.0 (965) 42.0 (1067)
D200s
109 (2769) 68.2 (1732) 23.0 (584) 25.0 (635) 45.0 (1143) 48.0 (1219)
Platen Size
Gallons (Liters)
Maximum Weight
lbs (kg)
55 (200)
51 (23)
30 (115)
44 (20)
16 (60)
25 (11.3)
8 (30)
21 (9.5)
5 (20)
19 (8.7)
ID
ti11157a
