Remote DataTrak Operation
313526L 27
Runaway Cycle Rate/Enable Runaway
Protection
Displacement Pump Volume
Press to scroll through the available displace
ment pump volumes (PV) in cc per cycle. set the
values to the pump size installed. Refer to manual
312375 or the marking on the displacement pump
cylinder.
Flow Rate Units
Press to scroll through the available flow rate
units. See Key on page 24. The selected units will
be used to display flow rate and volume on the main
Run screen and most of the setup values.
Drum Size
Use DS to enter the size of the container.
Drum Fill Volume
Use the Drum Fill Volume field (DF) to enter the
exact volume of material in the drum. Contact sup
plier for exact volume. This value is used to deter
mine the remaining volume in the drum.
4. To move to Setup screen 2, move the cursor to the
Drum Fill Volume field (DF), then press once
more.
Setup Screen 2
Use Setup screen 2 to set the maintenance counter set
point (MC), reset the maintenance counter, enable/dis
able diagnostic codes (EC), and choose whether the E7
drum icon (DL) will indicate when the drum is low or
when the drum is completely empty.
1. Press to toggle from field to field through the
screen.
2. Press to scroll through available values for each
field.
3. Press again to set the value and move the cur
sor to the next data field.
Maintenance Counter
Use the maintenance counter setpoint (MS) to set
the maintenance schedule based on the units dis
played. Press and hold for 3 seconds when the
entire MS field is highlighted to reset the MC value.
Graco recommends setting runaway
cycle rate (RS) to 60 or less. Choose
a value that is just above the maxi
mum cycle rate of the application.
When runaway protection is enabled (RT), a ✓ will
appear on the setup screen. See F
IG
. 22.
Initially, choose units that will allow easy definition
of the setup values (e.g. drum volume in gallons).
Then, return and select the flow rate unit to display
on the Run screen. The defined setup values will
convert automatically.

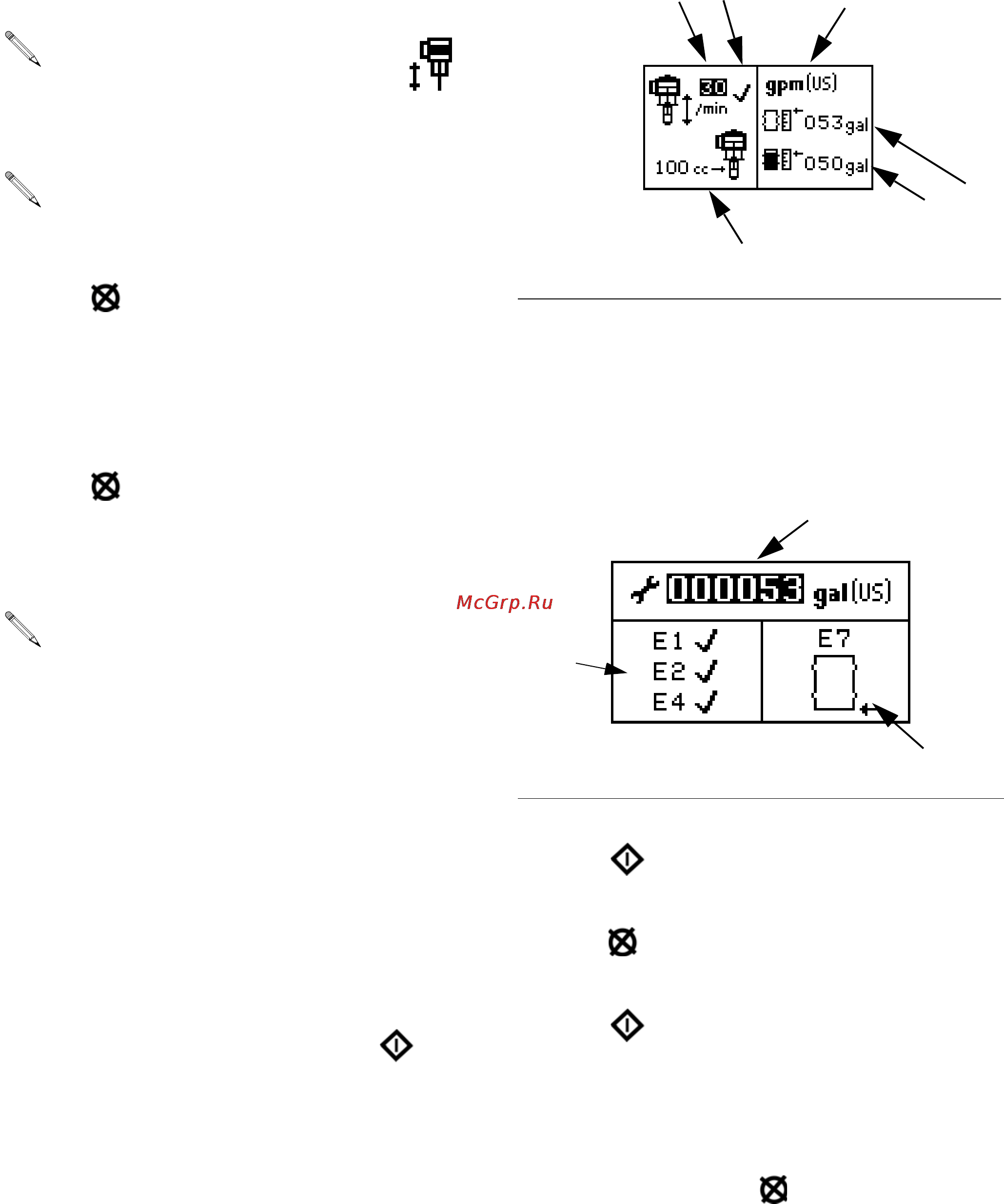

F
IG
. 22: Setup Screen 1
F
IG
. 23: Setup Screen 2
RT
DF
PV
FR
DS
RS
{
EC
DL
MC
