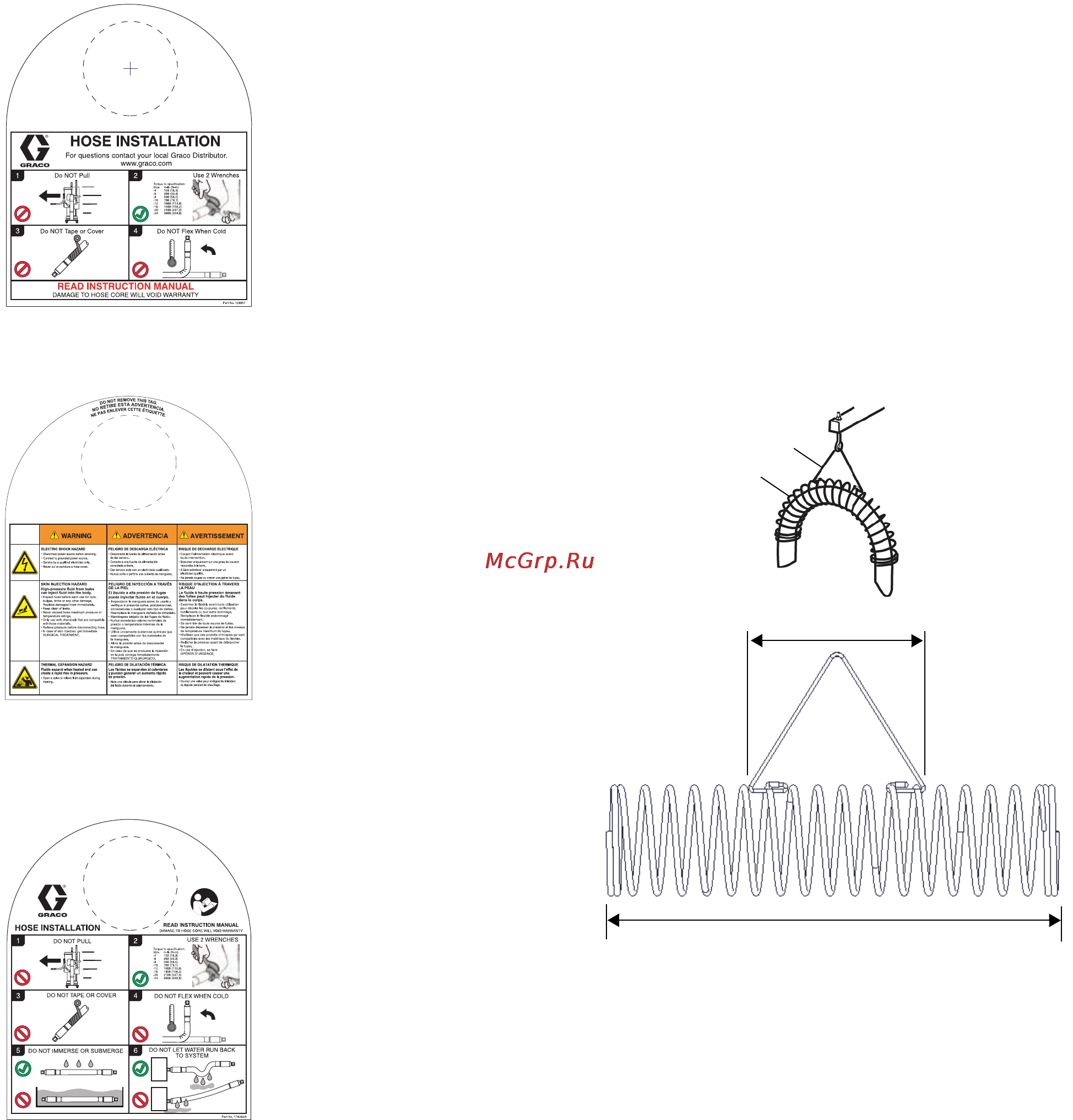

Parts
12 332072M
Parts
Replacement Warning labels, signs, tags, and cards are
available at no cost.
Heated Hose Instruction Tag, 120051
Heated Hose Warning Label, 196694
Water-wash Heated Hose
Instruction Tag, 17A202
Accessories
Self-Sealing Silicone Rubber Tape,
16Y938 (12 yd / 11 m roll)
Wrap around Water-wash cable connectors to provide
an extra level of protection.
Instructions: Remove plastic backing and wrap tightly
around electrical cable connectors. Silicone rubber tape
will adhere to itself and fuse with a cure time 24 hours at
room temperature to provide a strong, fluid-tight seal.
Hose Hanger Spring Kit, 253283
Use spring kit to hang hose overhead without kinking.
READ INSTRUCTION MANUAL
DAMAGE TO HOSE CORE WILL VOID WARRANTY
For questions contact your local Graco Distributor.
www.graco.com
HOSE INSTALLATION
12
34
Part No. 120051
Do NOT Pull
Use 2 Wrenches
Do NOT Tape or Cover Do NOT Flex When Cold
Torque to specification:
Size in-lb (N-m)
-4 150 (16.9)
-6 300 (33.9)
-8 500 (56.5)
-10 700 (79.1)
-12 1000 (113.0)
-16 1400 (158.2)
-20 2100 (237.3)
-24 3000 (339.0)
Ref. Part Description Qty.
1 C34132 HANGER 1
2 119958 SPRING, hose hanger 1
1
2
7 in.
18 in.
