Overview
332072M 5
Overview
Each hose assembly must be used with and controlled
by a Graco temperature controller. See system manual
for Graco temperature controller part number.
The heated hose maintains proper fluid temperature
while dispensing.The hose has two electrical connectors
with cables, each extending from the end of the hose.
The large round connector is the melter end and has
2 feet (0.6 m) of cable (see Fig. 1). The small round con
nector is the gun end and has 2 feet (0.6 m) of cable
(see Fig. 2).

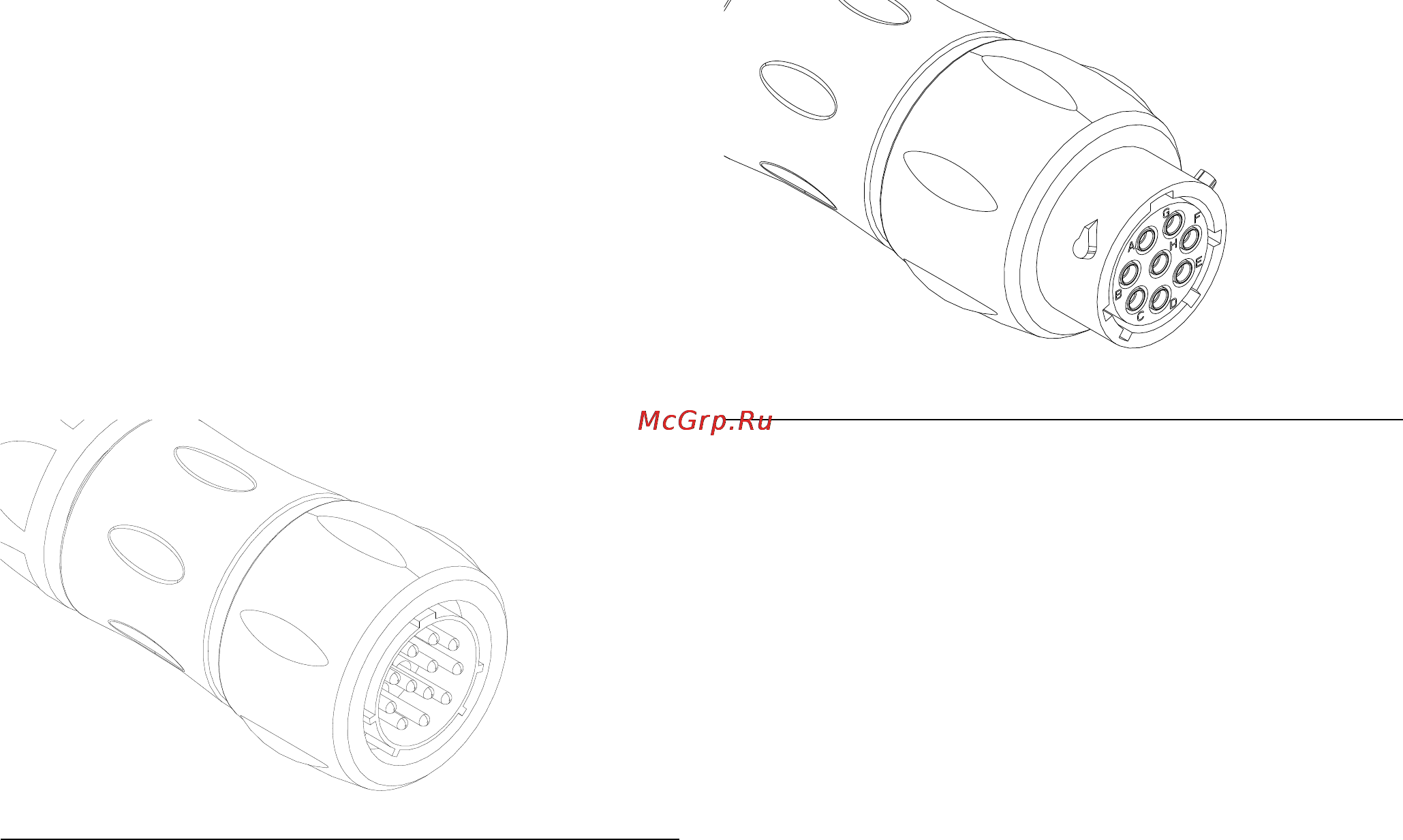

FIG. 1: Melter Connection
FIG. 2: Gun Connection
