Maintenance
332072M 9
Maintenance
If the hose is not heating, be sure the connector at the
hose control box is firmly plugged in. If that does not cor
rect the problem, relieve the fluid pressure in the pump
and hoses as instructed in your system operation man
ual. If the problem is not corrected, replace the hose.
See Troubleshooting on page 10 for electrical mea
surements.

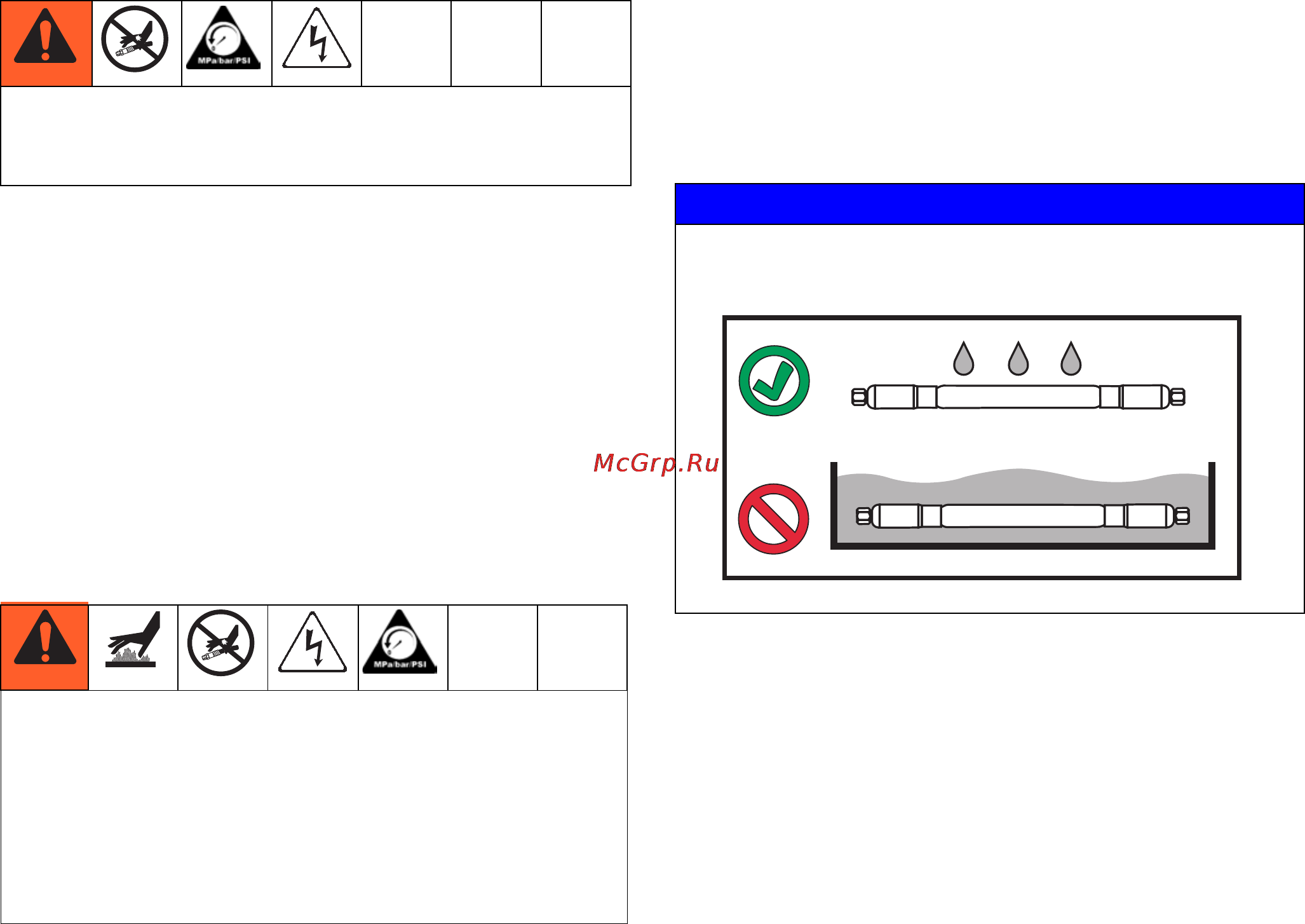

Washing Instructions
(Water-wash Hoses only)
Clean hoses by spraying low pressure water onto the
surface of the hose. The hoses are not intended to be
immersed or submerged.
NOTE: Water-wash hoses are IPx6 rated.
Do not mend or repair any part of a hose assembly. If
the hose is damaged, replace it immediately to avoid
serious injury from fluid injection and electric shock.
To help prevent serious injuries such as burns, skin
injection, and electric shock, always perform the
following before washing the hose:
• Disconnect power to InvisiPac System.
•Perform Pressure Relief Procedure, page 8.
• Allow hose to cool.
NOTICE
Do not immerse or submerge any part of the hose.
Damage to equipment can occur.
ti23414a
