- 14 -

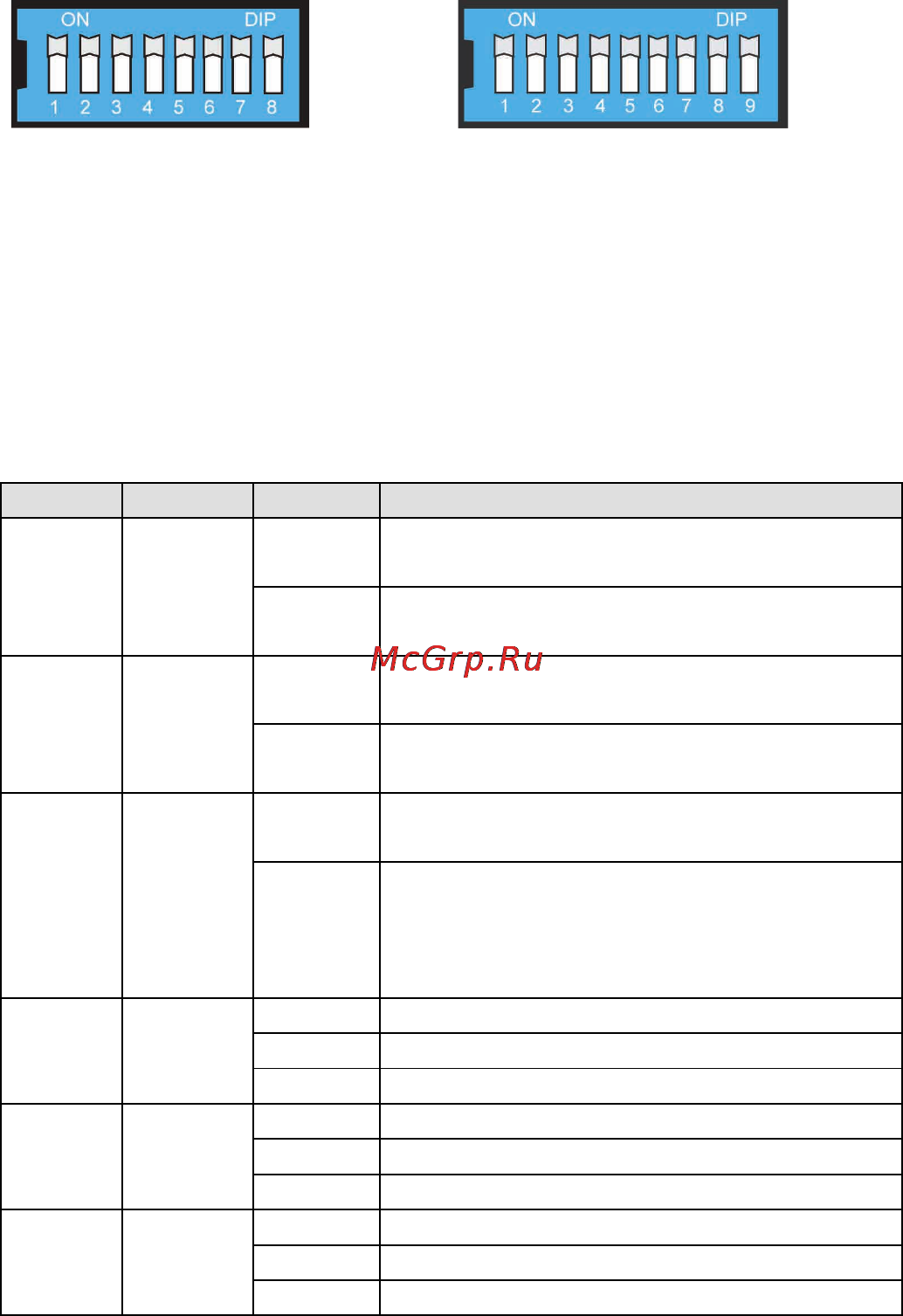

DIP Switch Settings
EDS-308 Series DIP Switches
EDS-309 Series DIP Switches
ON:
Enables the corresponding PORT Alarm. If the port’s link fails, the
relay will form an open circuit and the fault LED will light up.
Off:
Disables the corresponding PORT Alarm. The relay will form a
closed circuit and the Fault LED will never light up.
LED Indicators
The front panel of the Moxa EtherDevice Switch contains several LED
indicators. The function of each LED is described in the table below.
LED
Color
State
Description
PWR1 AMBER
On
Power is being supplied to power input
PWR1
Off
Power is not being supplied to power
input PWR1
PWR2 AMBER
On
Power is being supplied to power input
PWR2
Off
Power is not being supplied to power
input PWR2
FAULT RED
On
When the corresponding PORT alarm is
enabled, and the port’s link is inactive.
Off
When the corresponding PORT alarm is
enabled and the port’s link is active, or
when the corresponding PORT alarm is
disabled.
10M GREEN
On
TP port’s 10 Mbps link is active
Blinking
Data is being transmitted at 10 Mbps
Off
TP Port’s 10 Mbps link is inactive
100M
(TP)
GREEN
On
TP port’s 100 Mbps link is active
Blinking
Data is being transmitted at 100 Mbps
Off
100BaseTX Port’s link is inactive
100M
(FX)
GREEN
On
FX port’s 100 Mbps is active
Blinking
Data is being transmitted at 100 Mbps
Off
100BaseFX port is inactive
Auto MDI/MDI-X Connection
The Auto MDI/MDI-X function allows users to connect EDS-308’s
10/100BaseTX ports to any kind of Ethernet device, without needing to
pay attention to the type of Ethernet cable being used for the connection.
This means that you can use either a straight-through cable or cross-over
cable to connect EDS-308/309 to Ethernet devices.
