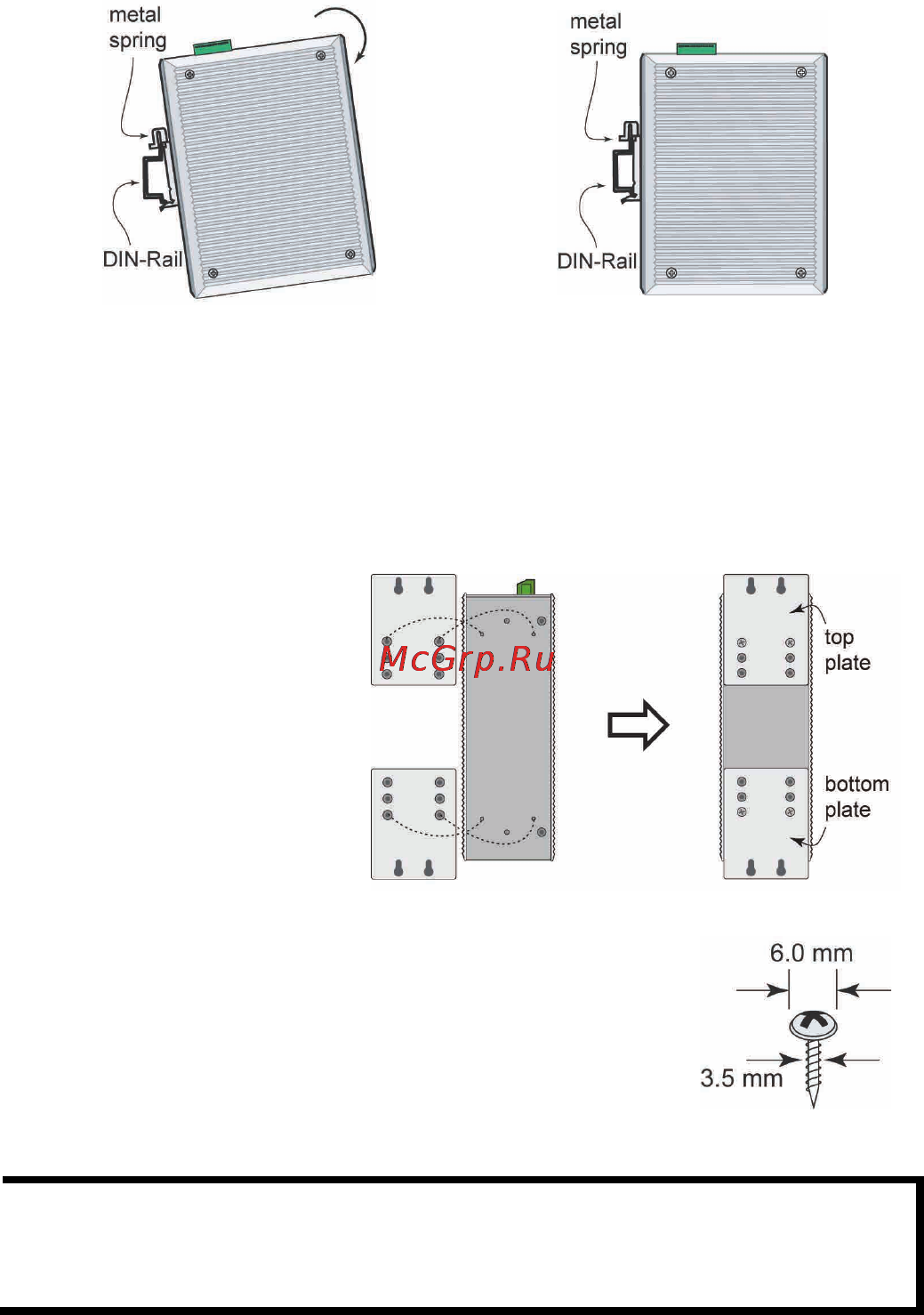

DIN-Rail Mounting
The aluminum DIN-Rail attachment plate should already be fixed to the
back panel of EDS-308/309 when you take it out of the box. If you need
to reattach the DIN-Rail attachment plate, make sure the stiff metal
spring is situated towards the top, as shown in the figures below.
STEP 1:
Insert the top of the DIN
-Rail into
the slot just
below the stiff metal
spring.
STEP 2:
The DIN
-Rail attachment unit will
snap into place as shown below.
To remove Moxa EtherDevice Switch from the DIN-Rail, simply reverse
Steps 1 and 2 above.
Wall Mounting (optional)
For some applications, you will find it convenient to mount EDS-308/309
on the wall, as illustrated below.
STEP 1:
Remove the aluminum
DIN
-Rail attachment plate
from EDS
-308/309’s rear
panel, and then attach the
wall mount plates, as shown
in the diagram below.
STEP 2:
Mounting
EDS-308/309
on the wall requires 4 screws.
Use the switch, with wall mount plates attached, as a
guide to mark the correct locations of the 4 screws.
The heads of the screws should be less than 6.0 mm in
diameter, and the shafts should be less than 3.5 mm
in
diameter, as shown in the figure at the right.
NOTE
Before tightening screws into the wall, make sure the screw head
and shank size are suitable by inserting the screw into one of the
keyhole-shaped apertures of the Wall Mounting Plates.
Do not screw the screws in all the way—leave about 2 mm to allow room
for sliding the wall mount panel between the wall and the screws.
