- 5 -

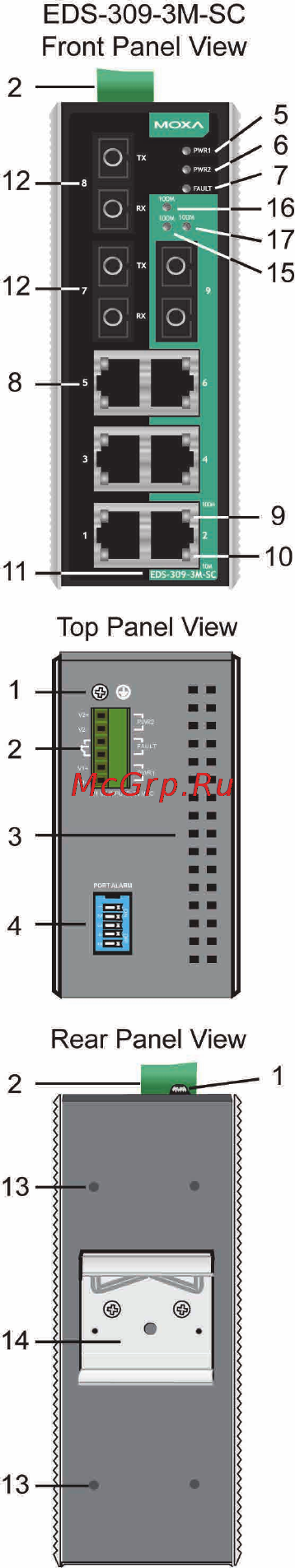

EDS-309 Panel Layout (SC-type)

1. Grounding screw

2. Terminal block for power inputs

PWR1/PWR2 and relay output

3. Heat dissipation orifices

4. DIP switches

5. Power input PWR1 LED

6. Power input PWR2 LED

7. Fault LED

8. 10/100BaseT(X) Port

9. TP port’s 100 Mbps LED

10.

TP port’s 10 Mbps LED

11.

Model Name

12.

100BaseFX Port

13.

Screw holes for wall mounting kit

14.

DIN-Rail Kit

15.

100 Mbps LED for FX port 7

16.

100 Mbps LED for FX port 8

17.

100 Mbps LED for FX port 9
