- 10 -

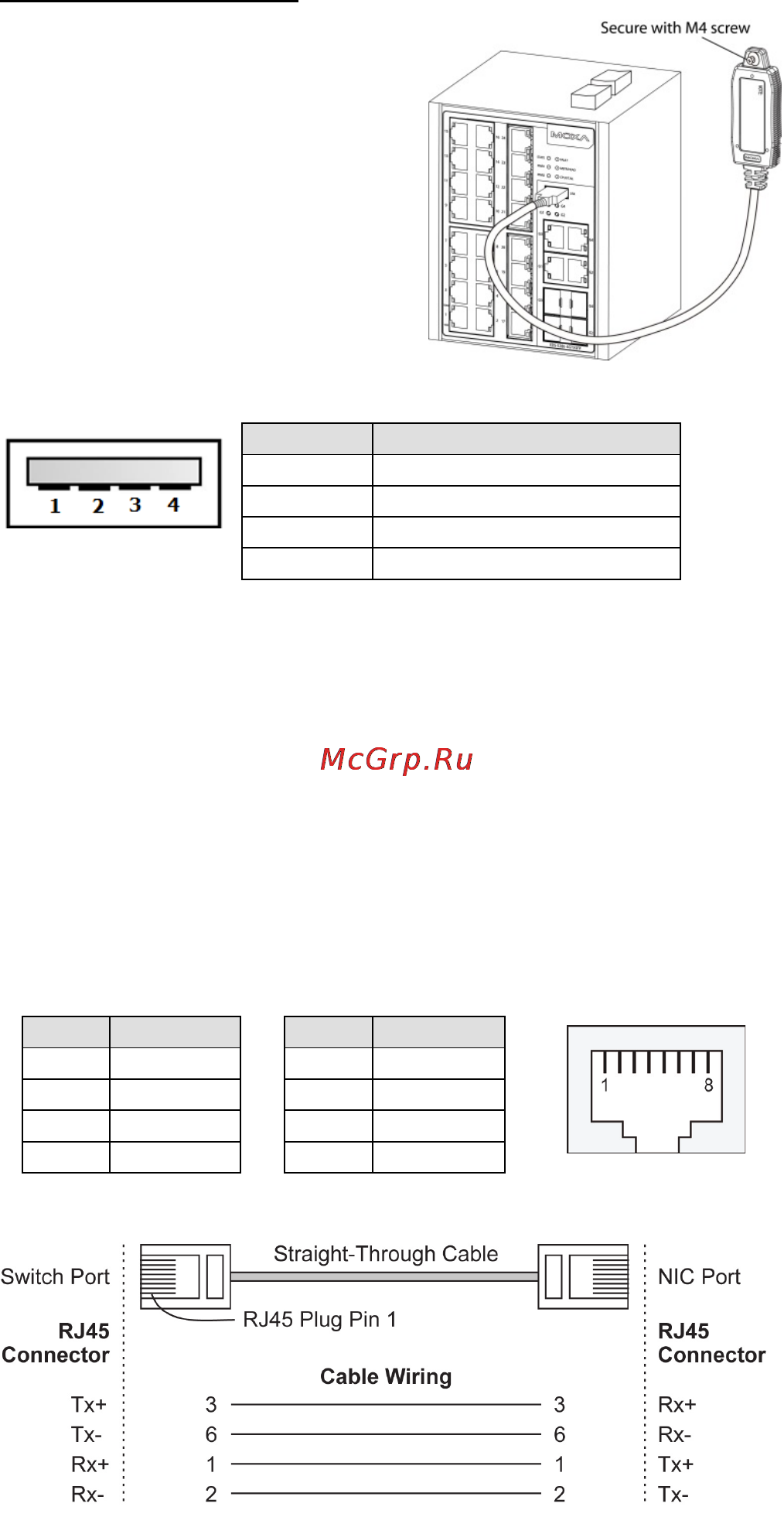

ABC-02-USB Installation

Plug the ABC-02-USB into the USB

storage port of the Moxa EDS-528E.

The ABC-02-USB can be secured to

the wall with an M4 screw.

USB Storage Port (Type A Connector) Pinouts

Description

VCC (+5V)

D– (Data–)

D+ (Data+)

GND (Ground)

10/100BaseT(X) Ethernet Port Connection

The 10/100BaseT(X) ports located on the EDS-528E’s front panel are

used to connect to Ethernet-enabled devices. Most users will choose to

configure these ports for Auto MDI/MDI-X mode, in which case the port’s

pinouts are adjusted automatically depending on the type of Ethernet

cable used (straight-through or cross-over), and the type of device

(NIC-type or HUB/Switch-type) connected to the port.

In what follows, we give pinouts for both MDI (NIC-type) ports and MDI-X

(HUB/Switch-type) ports. We also give cable wiring diagrams for

straight-through and cross-over Ethernet cables.

10/100Base T(x) RJ45 Pinouts

MDI Port Pinouts

MDI-X Port Pinouts

8-pin RJ45

Signal

Tx+

Tx-

Rx+

Rx-

Signal

Rx+

Rx-

Tx+

Tx-

RJ45 (8-pin) to RJ45 (8-pin) Straight-Through Cable Wiring
