Wall Mounting (Optional)
For some applications, you will find it convenient to mount the Moxa
EDS-528E on a wall, as shown in the following illustrations:

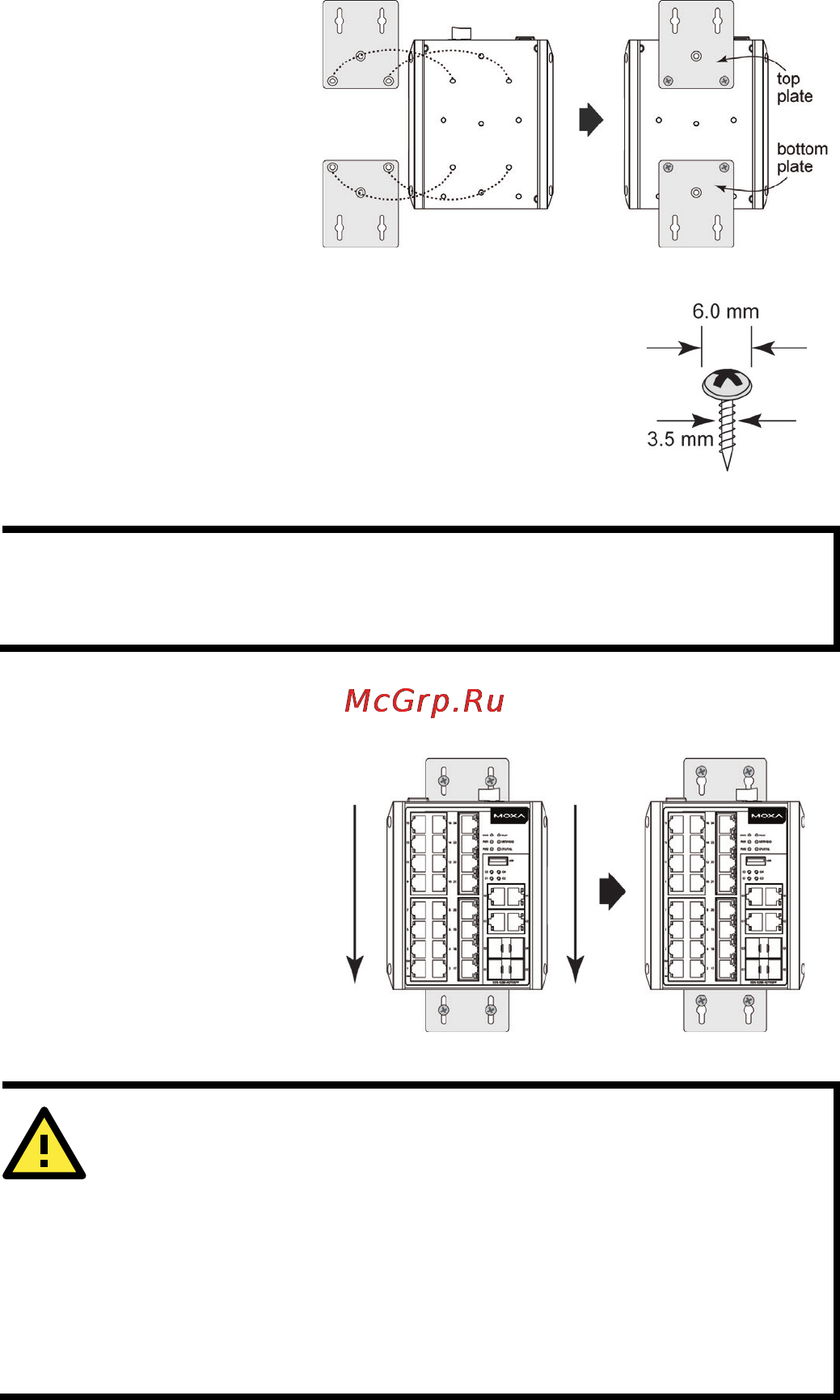

STEP 1: Remove the
aluminum DIN
-rail
attachment plate from the
rear panel
of the
EDS
-528E, and then
attach the wall mount
plates
with M3 screws
, as
shown
in the figure at
the
right.
STEP 2:
Mounting the EDS-528E series on a wall
requires 4 screws. Use the
EDS-528E
, with wall mount
plates attached, as a guide to mark the correct
locations of the 4 screws. The heads of the screws
should be less than 6.0 mm in diameter, and the shafts
should be less than 3.5
mm in diameter, as shown in
the figure on at the right.
NOTE
Before tightening the screws into the wall, make sure the screw
head and shank size are suitable by inserting the screw through
one of the keyhole-shaped apertures of the wall mount plates.
Do not screw the screws in all the way—leave about 2 mm to allow room
for sliding the wall mount panel between the wall and the screws.
STEP 3:
Once the screws
are fixed
to the wall, insert
the four screw heads
through the wide parts of
the keyhole
-shaped
apertures, and then slide
the
EDS-528E downwards,
as in
dicated in the figure at
the right. Tighten the four
screws for greater stability.
WARNING
1. EXPLOSION HAZARD—
Do not disconnect equipment unless
power has been removed or the area is known to be
non-hazardous.
2. EXPLOSION HAZARD—
Substitution of any components may
impair suitability for Class I, Division 2.
3. EXPOSURE TO SOME CHEMICALS MAY DEGRADE THE
SEALING PROPERTIES OF MATERIALS USED IN THE RELAY.
