DIN-Rail Mounting

The metal DIN-rail kit is fixed to the back panel of the EDS-528E when

you take it out of the box. Mount the EDS-528E on corrosion-free

mounting rails that meet the EN 60715 standard.

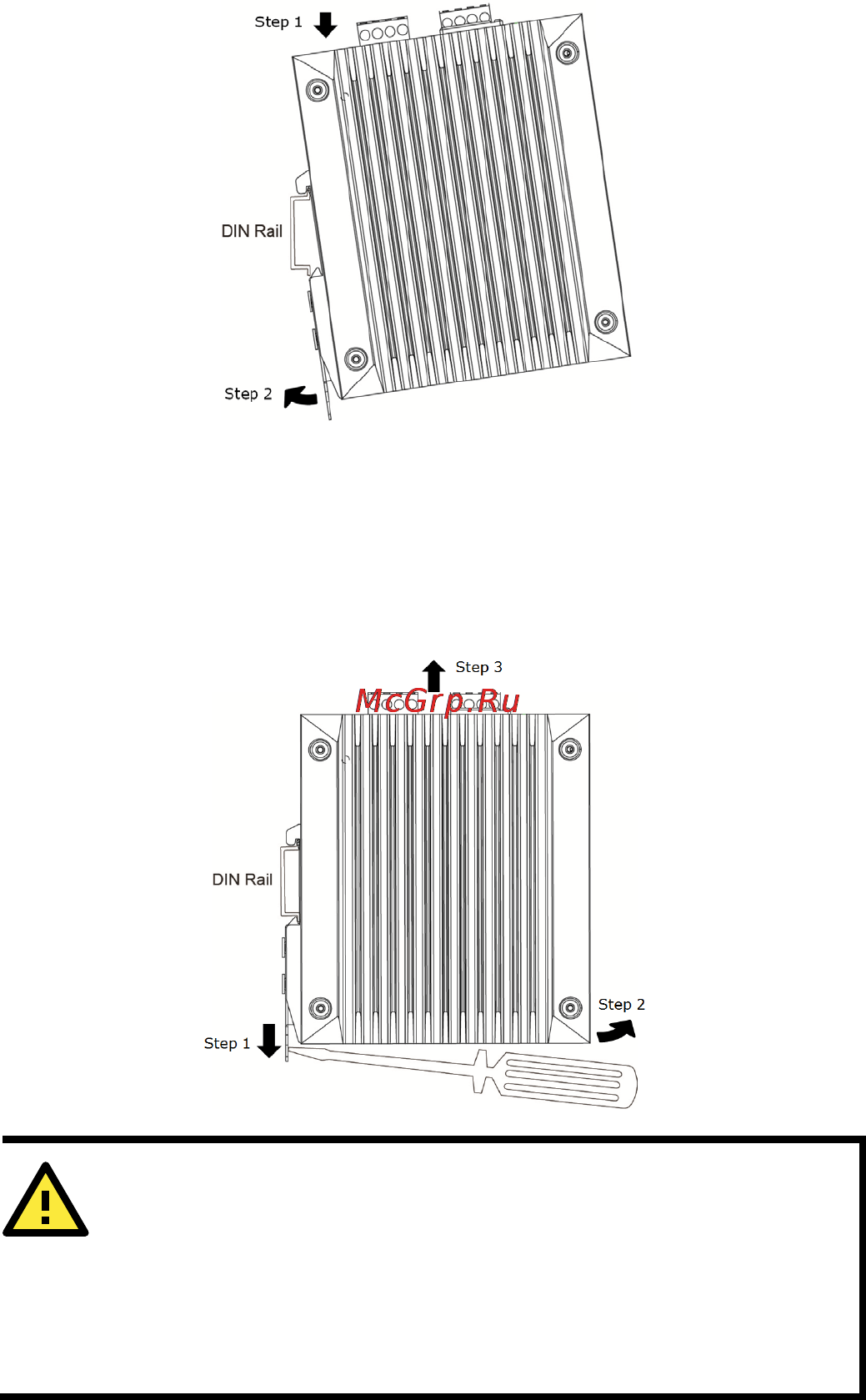

Installation

STEP 1: Insert the upper lip of the DIN rail into the DIN-rail mounting kit.

STEP 2: Press the EDS-528E series towards the DIN rail until it snaps into

place.

Removal

STEP 1: Pull down the latch on the mounting kit with a screwdriver.

STEPS 2 & 3: Pull the EDS-528E forward slightly and then lift up to

remove it from the DIN rail.

ATTENTION

1. These devices are open-type devices that are to be

installed

in an enclosure with tool removable cover or door suitable

for the environment at that location.

2. This equipment is suitable for use in Class I, Division 2,

Groups A, B, C, and D or non-hazardous locations only.
