- 11 -

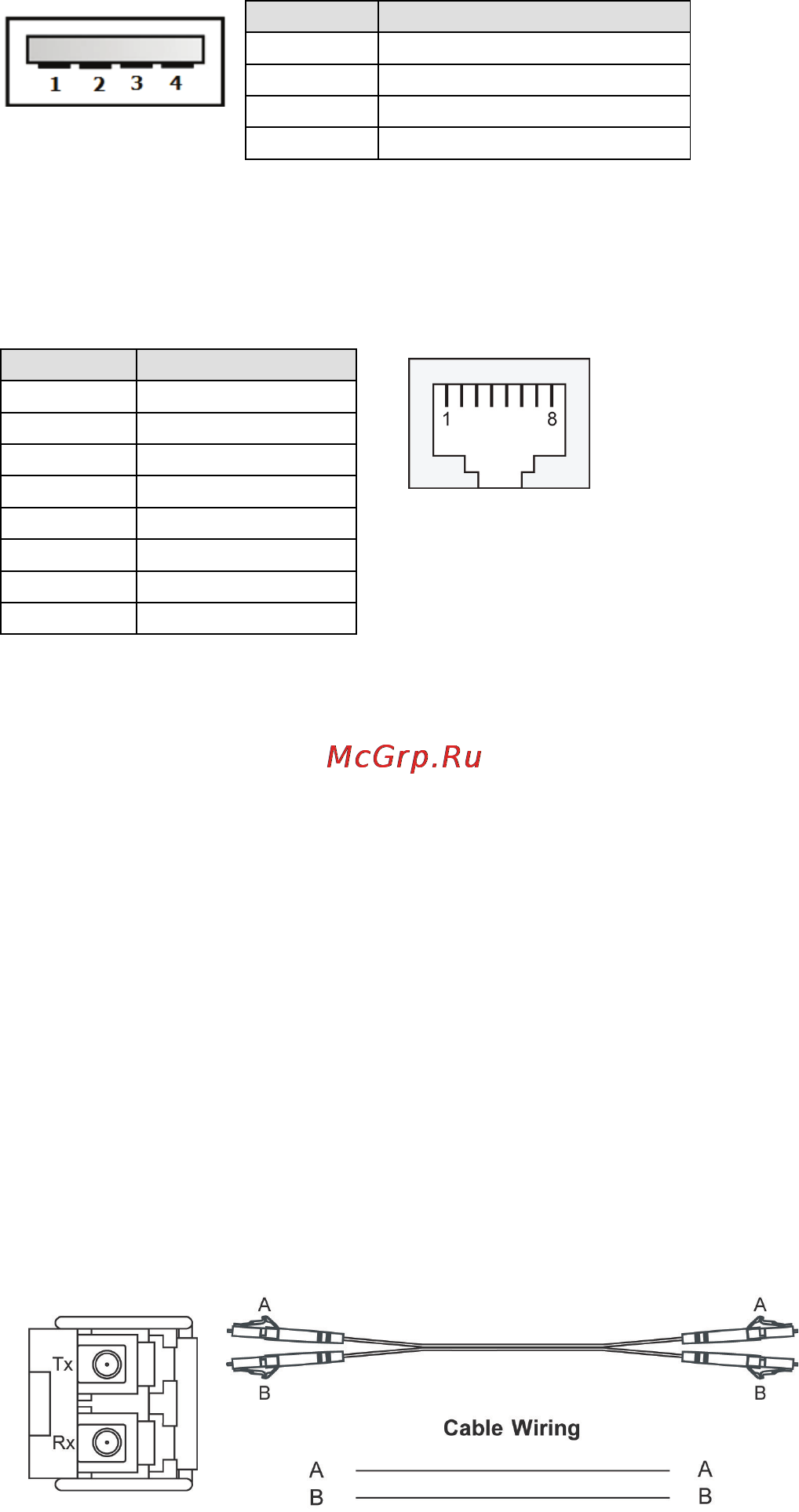

USB Storage Port (Type A Connector) Pinouts

Description

VCC (+5V)

D– (Data -)

D+ (Data+)

GND (Ground)

1000BaseT Ethernet Port Connection

1000BaseT data is transmitted on differential TRD+/- signal pairs over

copper wires.

MDI/MDI-X Port Pinouts

Signal

TRD(0)+

TRD(0)-

TRD(1)+

TRD(2)+

TRD(2)-

TRD(1)-

TRD(3)+

TRD(3)-

100/1000BaseSFP (mini-GBIC) Fiber Port

The Gigabit Ethernet ports on the EDS-G500E series are

100/1000BaseSFP Fiber ports, which require using the 100M or 1G

mini-GBIC fiber transceivers to work properly. Moxa provides completed

transceiver models for different distance requirement.

The concept behind the LC port and cable is quite straightforward.

Suppose that you are connecting devices I and II; contrary to electrical

signals, optical signals do not require a circuit in order to transmit data.

Consequently, one of the optical lines is used to transmit data from device

I to device II, and the other optical line is used transmit data from device

II to device I, for full-duplex transmission.

Remember to connect the Tx (transmit) port of device I to the Rx (receive)

port of device II, and the Rx (receive) port of device I to the Tx (transmit)

port of device II. If you make your own cable, we suggest labeling the two

sides of the same line with the same letter (A-to-A and B-to-B, as shown

below, or A1-to-A2 and B1-to-B2).

LC-Port Pinouts LC-Port to LC-Port Cable Wiring
