- 7 -
Wall Mounting (Optional)
For some applications, you will find it convenient to mount Moxa EDS-
G500E series on the wall, as shown in the following illustrations:

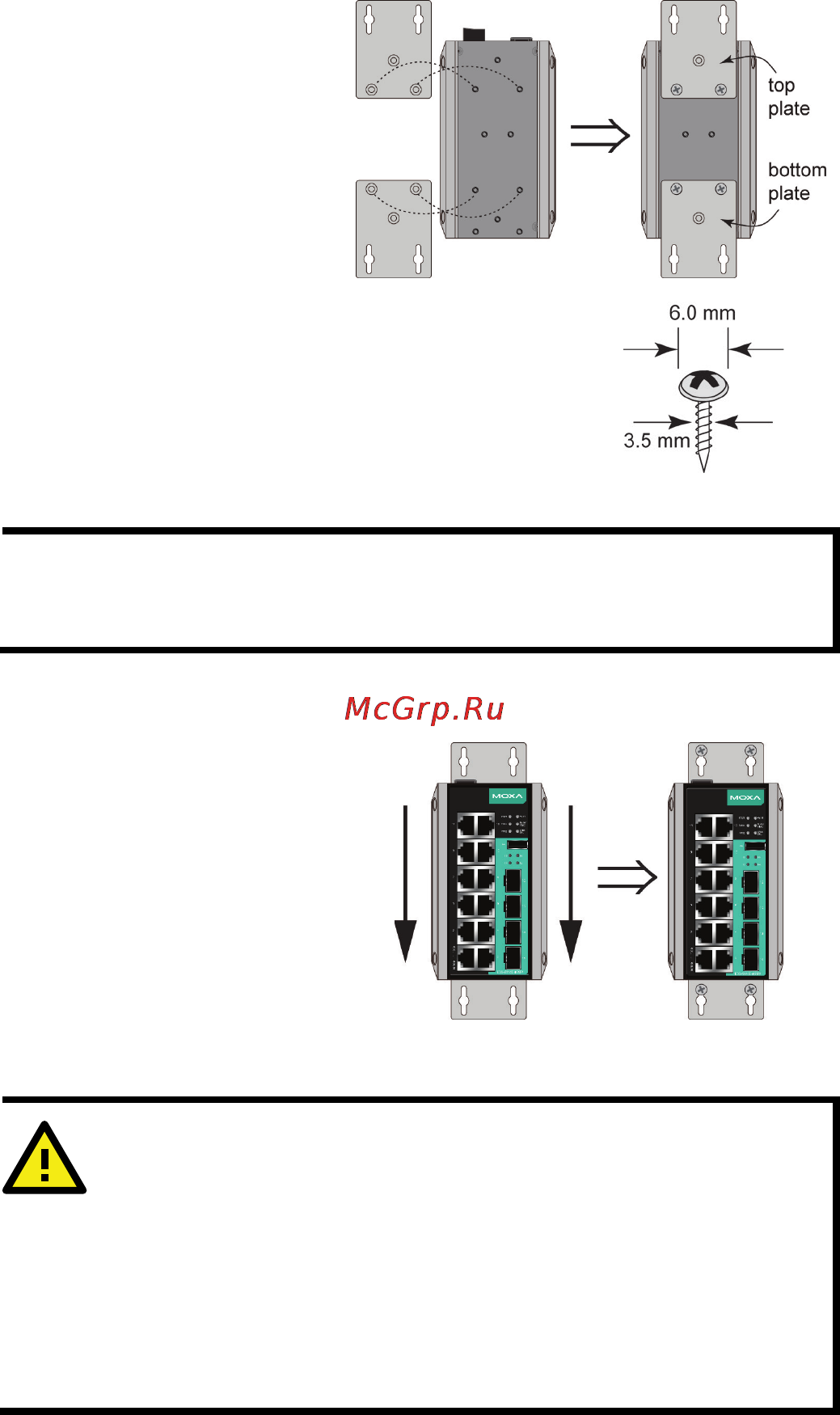

STEP 1—Remove the
aluminum DIN rail attachment
plate from the rear panel
of
the EDS
-G500E series, and
then attach the wall mount
plates
with M3 screws, as
shown
in the figure at the
right.
STEP 2—Mounting the EDS-G500E series on the
wall requires 4 screws. Use the
EDS-G500E series
,
with wall mount plates attached, as a guide to
mark the correct locations of the 4 screws. The
heads of the screws should be less than 6.0 mm in
diameter, and the shafts sh
ould be less than 3.5
mm in diameter, as shown in the figure on at right.
NOTE
Before tightening the screws into the wall, make sure the screw
head and shank size are suitable by inserting the screw through
one of the keyhole-shaped apertures of the Wall Mounting Plates.
Do not screw the screws in all the way—leave about 2 mm to allow room
for sliding the wall mount panel between the wall and the screws.
STEP 3—Once the screws are
fixed
to the wall, insert the
four screw heads through the
wide parts o
f the
keyhole
-shaped apertures,
and then slide
the EDS-
G500E
downwards, as indicated
in
the figure
at
the right. Tighten
the four screws for
more
stability.
WARNING
1. EXPLOSION HAZARD -
Do not disconnect equipment unless
power has been removed or the area is known to be
non-hazardous.
2. EXPLOSION HAZARD -
Substitution of any components may
impair suitability for Class I, Division 2.
3. EXPOSURE TO SOME CHEMICALS MAY DEGRADE THE
SEALING PROPERTIES OF MATERIALS USED IN THE RELAY.
