DIN-Rail Mounting

The metal DIN-rail kit is fixed to the back panel of the EDS-G500E series

when you take it out of the box. Mount the EDS-G500E series on

corrosion-free mounting rails that meet the EN 60715 standard.

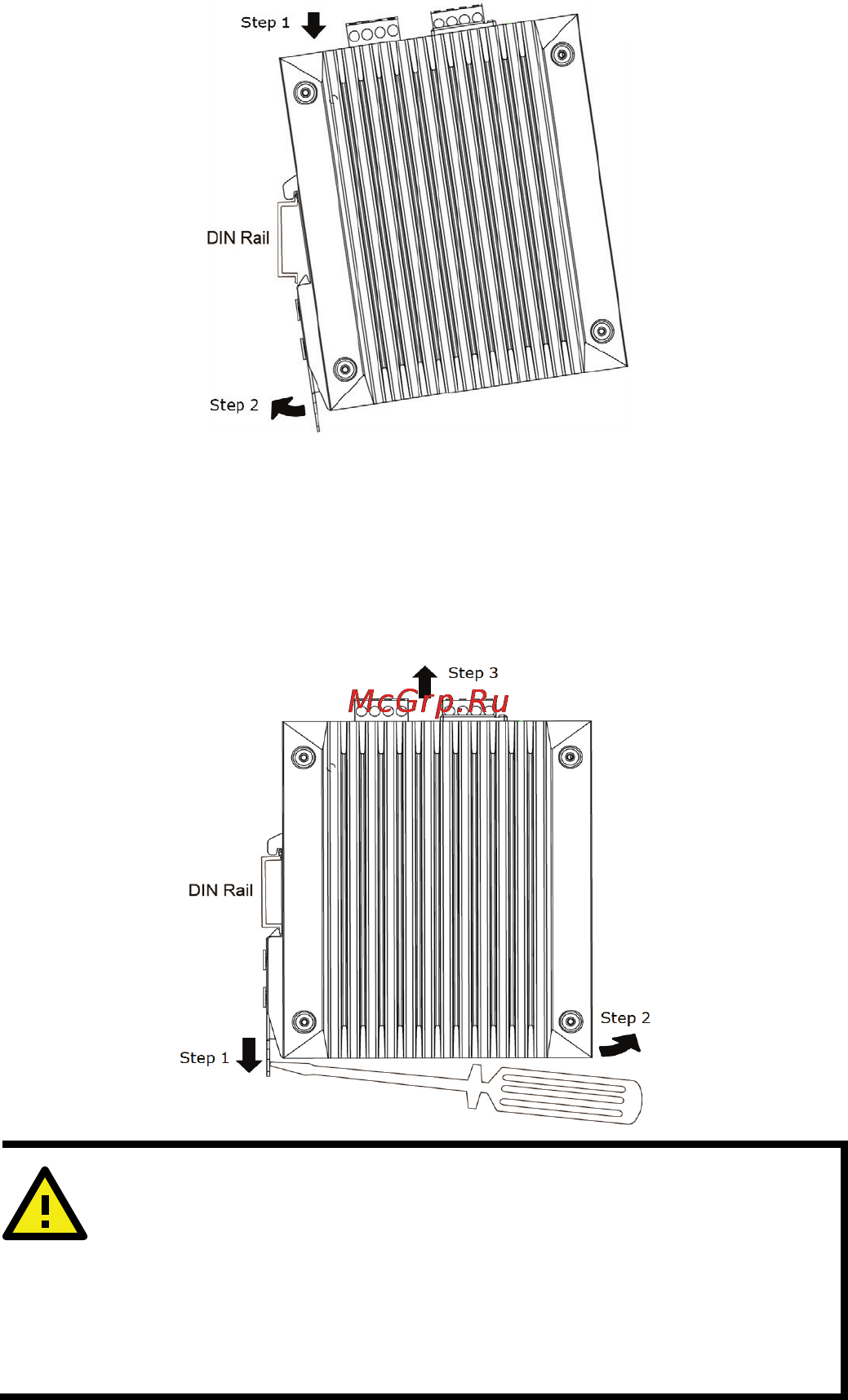

Installation

STEP 1—Insert the upper lip of the DIN rail into the DIN-rail mounting kit.

STEP 2—Press the EDS-G500E series towards the DIN rail until it snaps

into place.

Removal

STEP 1—Pull down the latch on the mounting kit with a screwdriver.

STEP 2 & 3—Slightly pull the EDS-G500E series forward and lift up to

remove it from the DIN rail.

ATTENTION

1. These devices are open-

type devices that are to be installed

in an enclosure with tool removable cover or door that

suitable for the environment.

2. This equipment is suitable for use in Class I, Division 2,

Groups A, B, C, and D or non-hazardous locations only.
