PT-7528 Series Advanced Settings

4-38

Type Models Supported

Type 1 EDS-400A series, EDS-505A/508A/510A/G509, EDS-P506A-4PoE/P510/P510A-8PoE,

EDS-600 series, IKS-G6524/G6824, ICS-G7000 series

Type 2 EDS-516A/518A, EDS-728/828, IKS-6726/6726-8PoE/6728

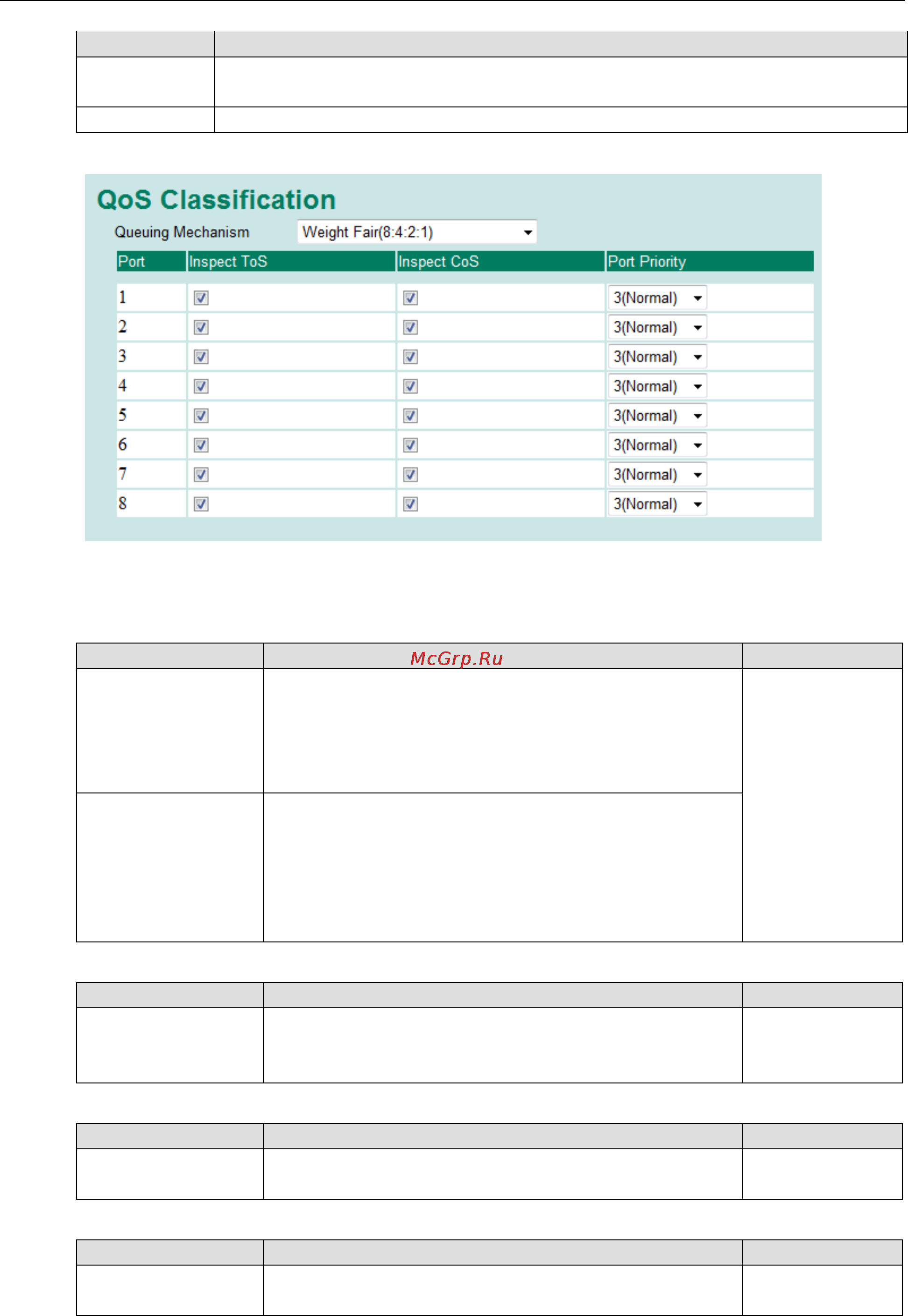

Type1

The Moxa switch supports inspection of layer 3 TOS and/or layer 2 CoS tag information to determine how to

classify traffic packets.

Queuing Mechanism

Setting Description Factory Default

Weight Fair The Moxa switch has 4 priority queues. In the weight fair

scheme, an 8, 4, 2, 1 weighting is applied to the four pr

iorities.

This approach prevents the lower priority frames from being

starved of opportunity for transmission with only a slight delay

to the higher priority frames.

Weight Fair

Strict In the Strict-priority scheme, all top-priority frames egress a

port until that priority’s queue is empty, and then the next

lower priority queue’s frames egress. This approach can cause

the lower priorities to be starved of opportunity for transmitting

any frames but ensures that all high priority frames will egress

the switch as soon as possible.

Inspect TOS

Setting Description Factory Default

Enable/Disable Enables or disables the Moxa switch for inspecting Type of

Service (TOS) bits in the IPV4 frame to determine the priority of

each frame.

Enabled

Inspect COS

Setting Description Factory Default

Enable/Disable

Enables or disables the Moxa switch for inspecting 802.1p COS

tags in the MAC frame to determine the priority of each frame.

Enabled

Inspect Port Priority

Setting Description Factory Default

Port priority The port priority has 4 priority queues. Low, normal, medium,

high priority queue option is applied to each port.

3(Normal)
