PT-7528 Series Advanced Settings
4-58

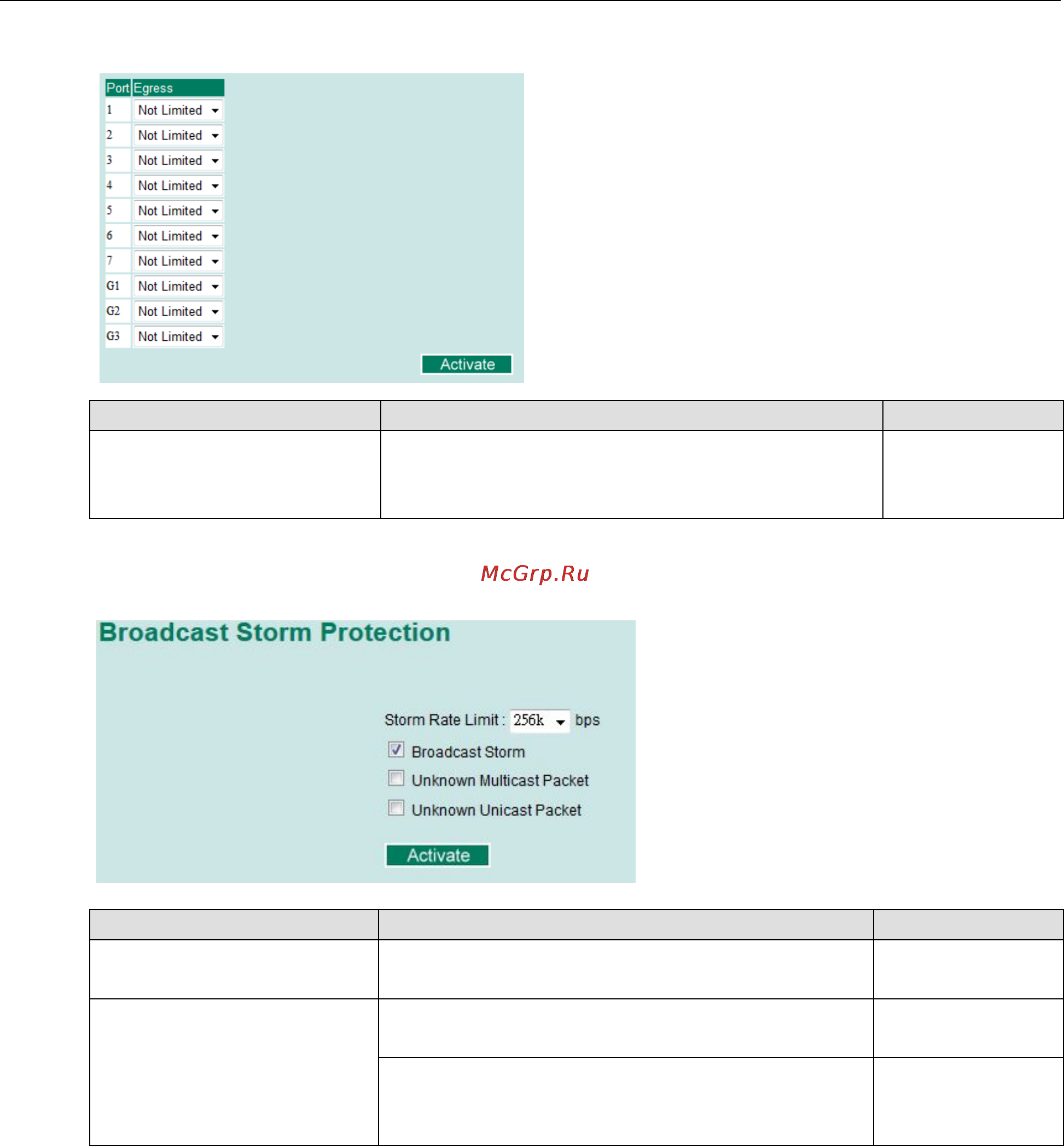

Egress Rate Limit
Setting Description Factory Default
Egress rate
Select the ingress rate limit (% of max. throughput) for
all packets from the following options: Not Limited
, 3%,
5%, 10%, 15%, 25%, 35%, 50%, 65%, 85%
Not Limited
Type 2
Broadcast Storm Protection
Setting Description Factory Default
Storm Rate Limit Select the storm rate limit from the following options:
64k, 128k, 256k, 512k, 1M, 2M, 4M, 8M, 16M, or 32M.
256bps
Enable/Disable This enables or disables Broadcast Storm Protection for
unknown broadcast packet globally
Enable
This enables or disables Broadcast Storm Protection for
unknown multicast packets and unicast packets
globally
Disable
