PT-7528 Series Advanced Settings
4-40
Inspect COS
Setting Description Factory Default
Enable/Disable Enables or disables the Moxa switch for inspectin
g 802.1p COS
tags in the MAC frame to determine the priority of each frame.
Enabled
NOTE
The priority of an ingress frame is determined in the following order:
1. Port Highest Priority
2. Inspect TOS
3. Inspect CoS

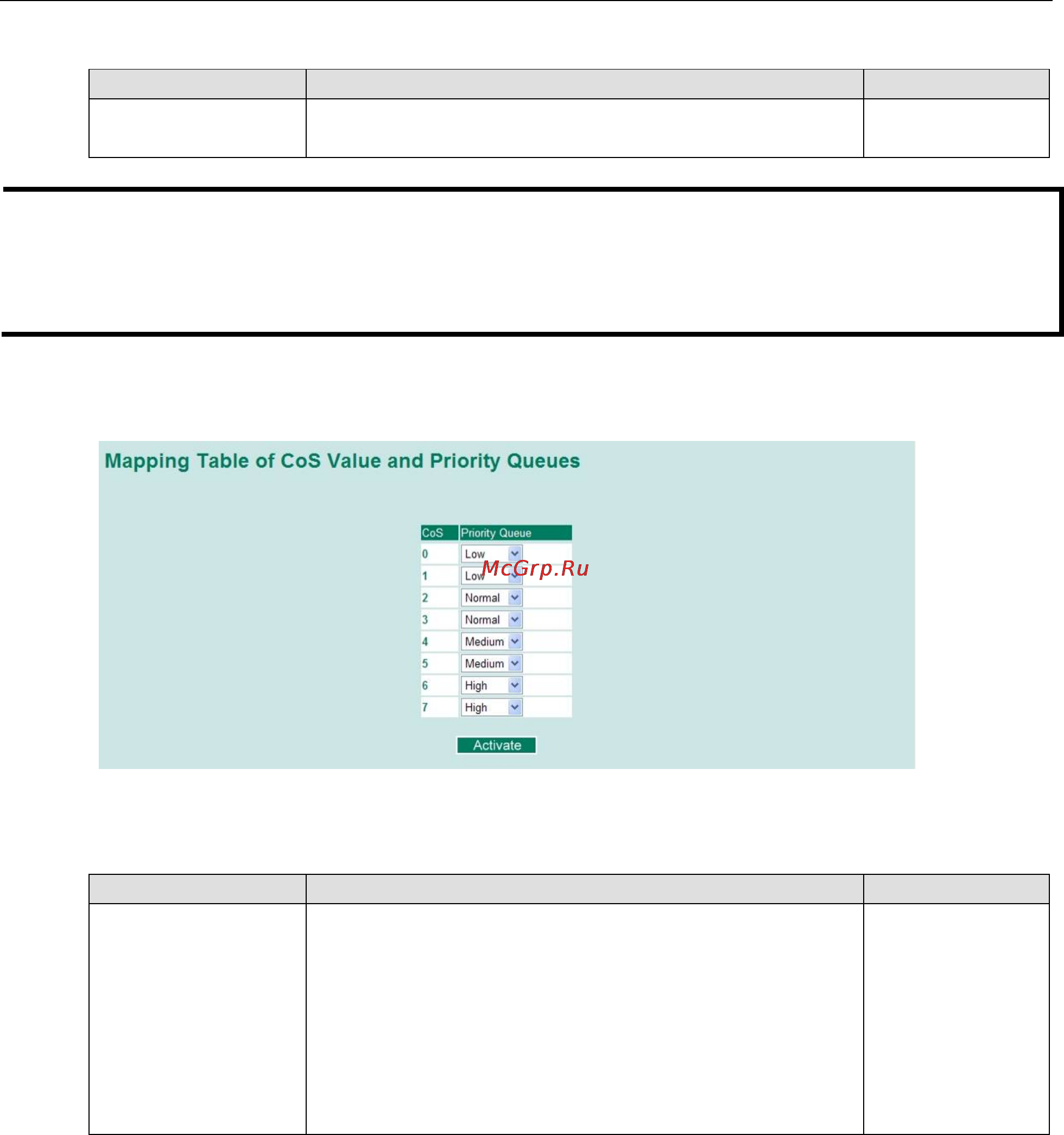

CoS Mapping
CoS Value and Priority Queues
Setting Description Factory Default
Low/Normal/
Medium/High
Maps different CoS values to 4 different egress queues. 0: Low
1: Low
2: Normal
3: Normal
4: Medium
5: Medium
6: High
7: High
