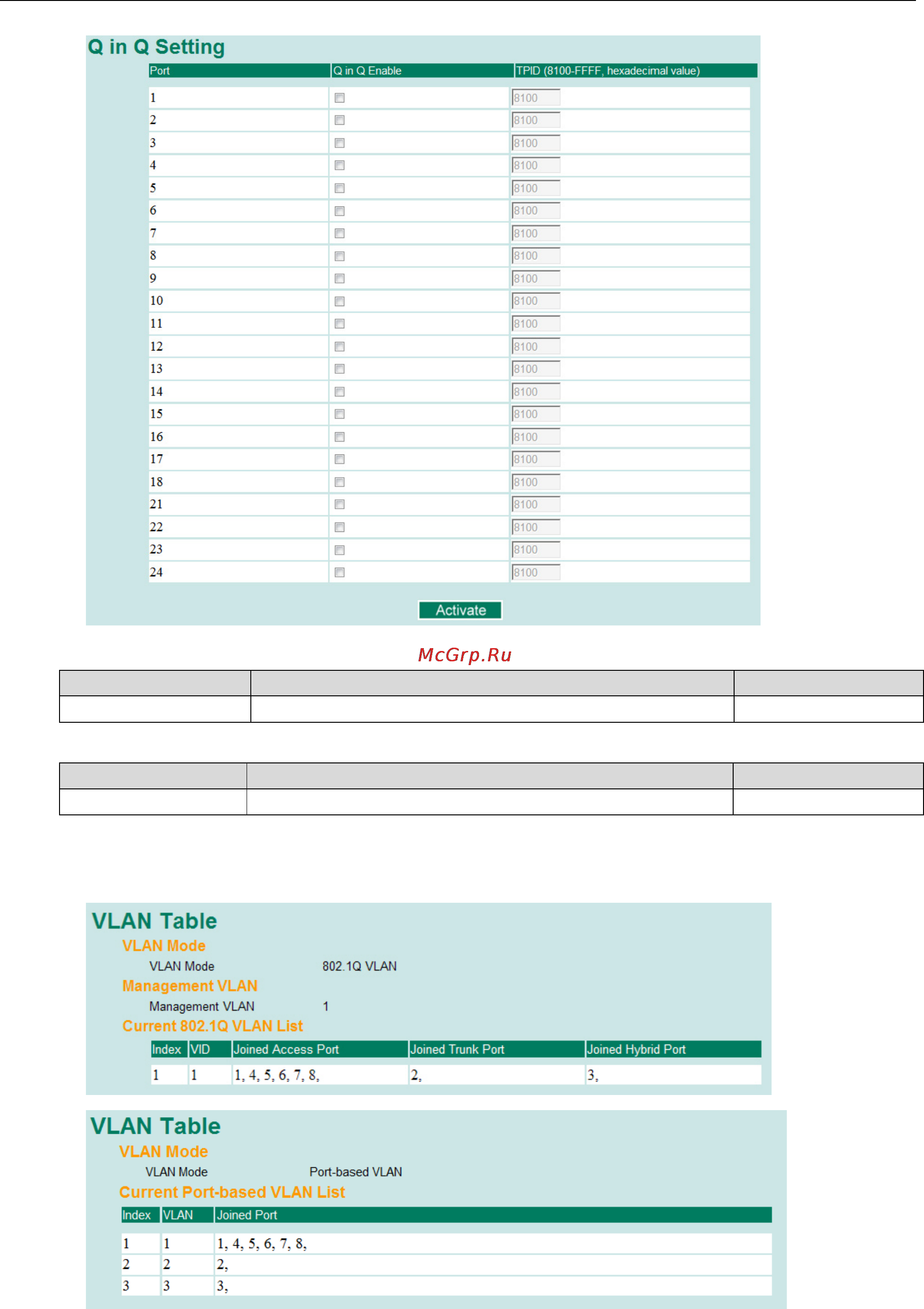

PT-7528 Series Advanced Settings
4-47
QinQ Enable
Setting Description Factory Default
Enable/Disable Enable VLAN QinQ function Disable
TPID
Setting Description Factory Default
8100 to FFFF Assign the TPID of the second VLAN tag 8100
VLAN Table
Use the 802.1Q VLAN table to review the VLAN groups that were created, Joined Access Ports, Trunk
Ports, and Hybrid Ports, and use the Port-based VLAN table to review the VLAN group and Joined Ports.
