PT-7528 Series Advanced Settings
4-59

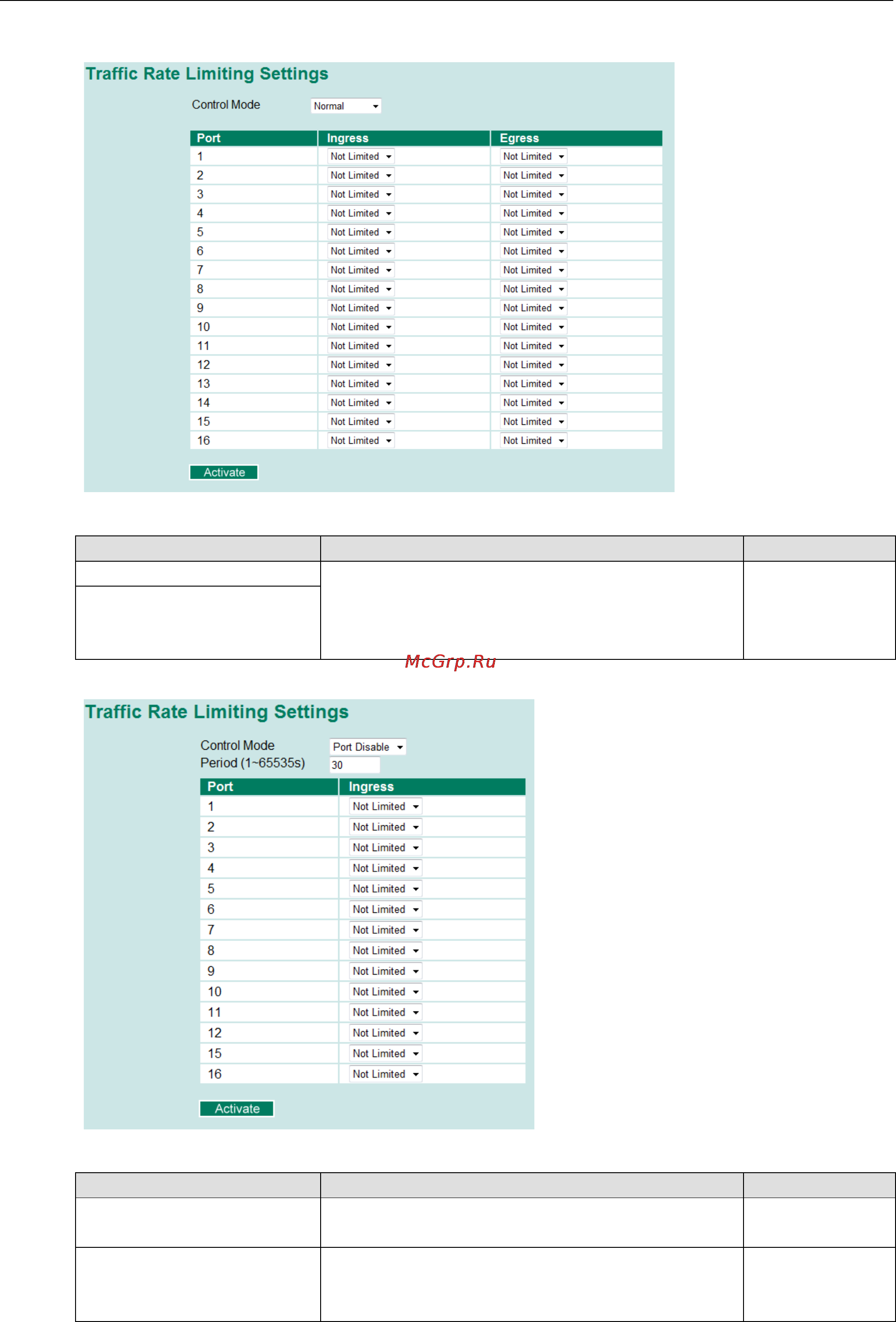

Traffic Rate Limiting Settings
Ingress and Egress Rate Limit - Normal
Setting Description Factory Default
Ingress rate Select the ingress/egress rate limit (% of max.
throughput) for all packets from the following options:
Not Limited, 3%, 5%, 10%, 15%, 25%, 35%, 50%,
65%, 85%
Not Limited
Egress rate
Ingress Rate Limit – Port Disable
Setting
Description
Factory Default
Period (1~65535 seconds) When the ingress packets exceed the ingress rate limit,
the port will be disabled for a certain period.
30 seconds
Ingress (frame per second) Select the ingress rate (fps) limit for all packets from the
following options: Not Limited, 4464, 7441, 14881,
22322, 37203, 52084, 74405
Not Limited
