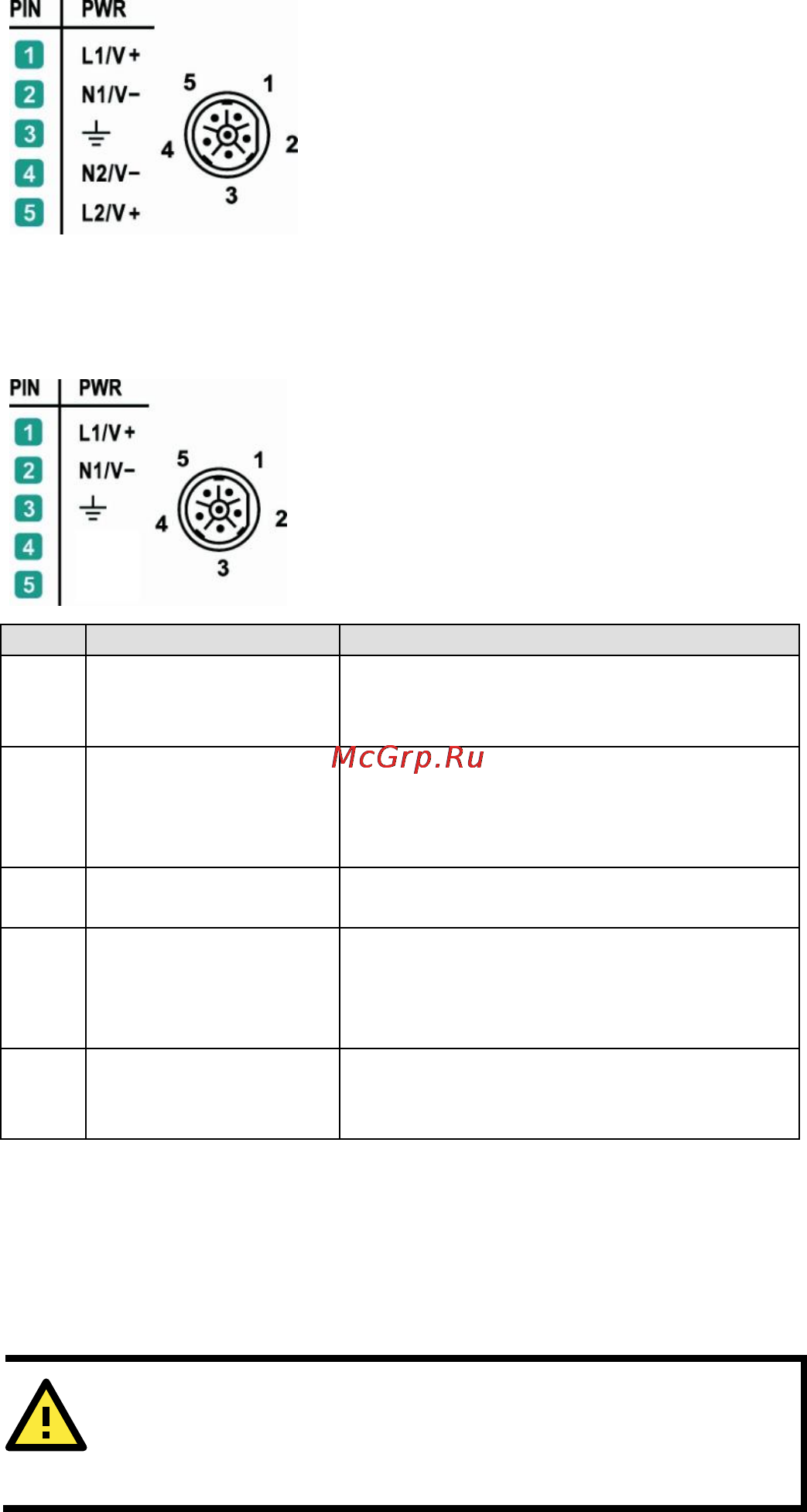

Pinouts for the power input port on the TN-5508A/5510A

(non-PoE series).

Pinouts for the power input port on the

TN-5508A/5510A-PoE series

Description

Usage

PWR1 Live / DC +

Connect “PWR1 Live / DC +” to the

positive (+) terminal when using a DC

power source.

PWR1 Neutral / DC -

Connect “PWR1 Neutral / DC -” to the

negative (-) terminal when using a DC

power source. The negative inputs for the

two power supplies are N1/V- and N2/V-.

Chassis Ground

Connect the “Chassis Ground” to the

equipment ground bus for DC inputs.

PWR2 Neutral / DC -

Connect “PWR2 Neutral / DC -” to the

negative (-) terminal when using a DC

power source. The negative inputs for the

two power supplies are N1/V- and N2/V-.

PWR2 Live / DC +

Connect “PWR2 Live / DC +” to the

positive (+) terminal when using a DC

power source.

STEP 1:

Plug your power cord connector to the power input port of the

TN-5508A/5510A switch.

STEP 2:

Screw the nut on your power cord connector to the power input connector

on the switch to ensure a tight connection.

ATTENTION

Before connecting the TN-5508A/5510A to the power input,

make sure the power source voltage is stable.
