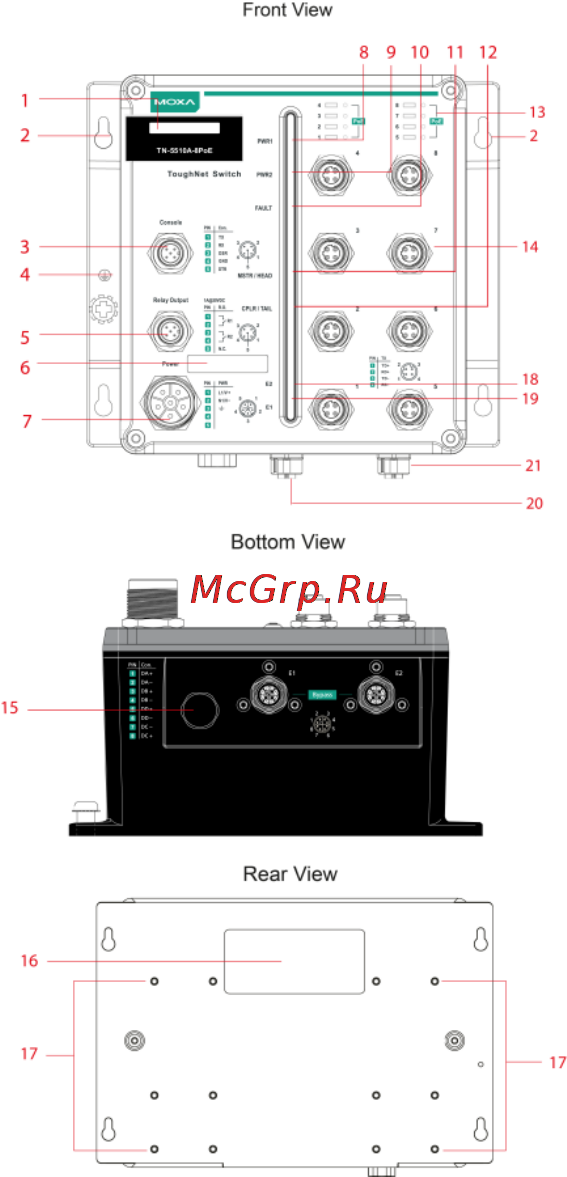

TN-5508A-8PoE/5510A-8PoE Panel Layouts

1. Model name

2. Screw holes for panel mounting kit

3. Console port

4. Grounding screw

5. Relay output port

6. Power input voltage range indication

7. Power input port (male 5-pin shielded M23 connector)

8. PWR1 LED: for power input 1

9. PWR2 LED: for power input 2

10. FAULT LED

11. MSTR/HEAD LED: for ring master or chain head

12. CPLR/TAIL LED: for ring coupler or chain tail

13. TP port’s 10/100 Mbps LED

14. 10/100BaseT(X) port (M12 D-coded 4-pin female connector)

15. Waterproof vent

16. Product label

17. 12 Screw holes for DIN-Rail mounting kit

18. E2 LED: Down-side E2 Gigabit port's 10/100/1000 Mbps LED

19. E1 LED: Down-side E1 Gigabit port's 10/100/1000 Mbps LED

20. Gigabit Ethernet port E1 (corresponding to port 9 in the TN-5510A

User's Manual)

21. Gigabit Ethernet port E2 (corresponding to port 10 in the TN-5510A

User's Manual)
