TN-5510A-8PoE Series

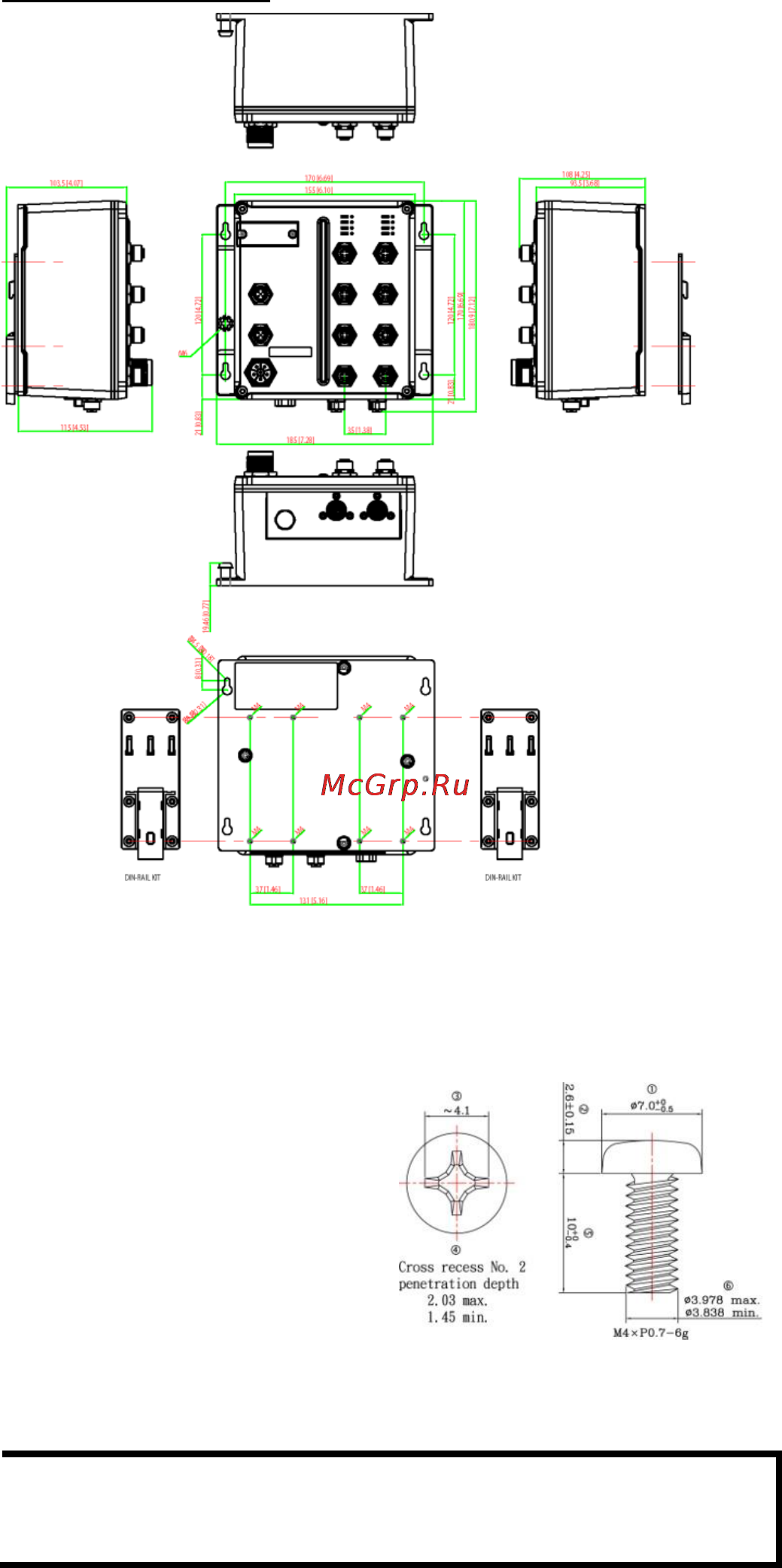

Panel/Wall Mounting

STEP 1:

Mounting the TN-5508A/5510A to a wall requires 4 screws. Use the

ToughNet switch as a guide to mark the correct positions of the 4 screws.

STEP 2:

Use the 4 screws in the panel

mounting kit. If you would like to use

your own screws, make sure the

screw head is between 6.0 mm

and 7.0 mm in diameter and the

shaft is less than 4.0 mm in

diameter, as shown at the right.

Do not screw the screws in all the way—leave a space of about 2 mm to

allow room for sliding the ToughNet switch between the wall and the

screws.

NOTE

Before tightening the screws into the wall, make sure the screw

head and shaft size are suitable by inserting the screw through

one of the keyhole-shaped apertures of the ToughNet switch.
