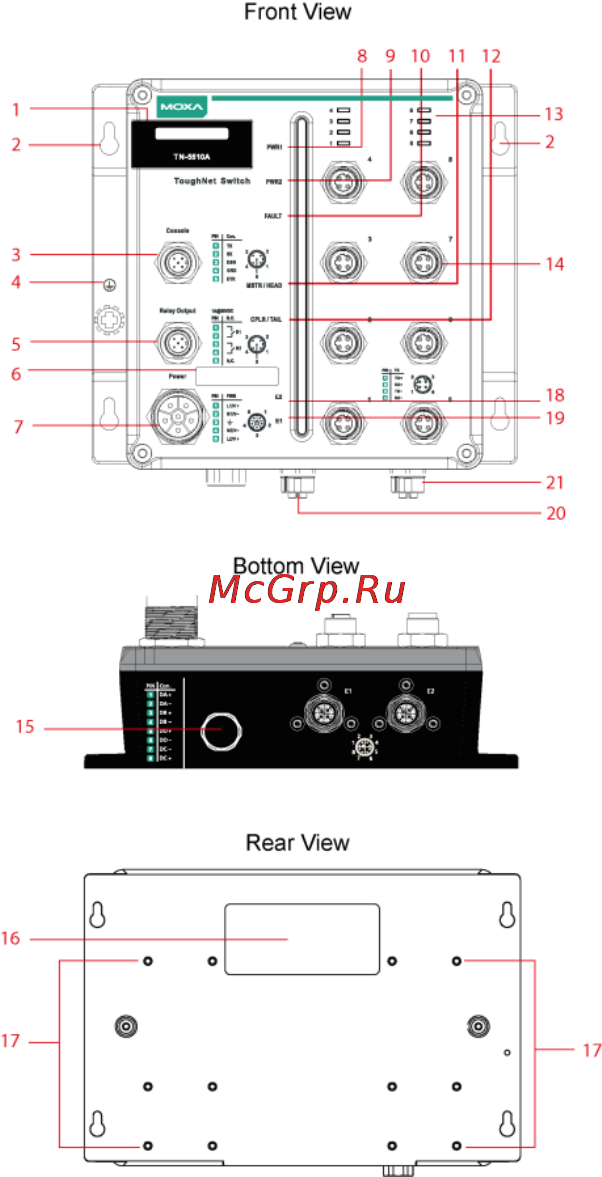

TN-5508A/5510A Panel Layouts

1. Model name.

2. Screw holes for panel mounting kit.

3. Console port.

4. Grounding screw.

5. Relay output port.

6. Power input voltage range indication.

7. Power input port (male 5-pin shielded M23 connector).

8. PWR1 LED: for power input 1.

9. PWR2 LED: for power input 2.

10. FAULT LED.

11. MSTR/HEAD LED: for ring master or chain head.

12. CPLR/TAIL LED: for ring coupler or chain tail.

13. TP port’s 10/100 Mbps LED.

14. 10/100BaseT(X) port (M12 D-coded 4-pin female connector)

15. Waterproof vent.

16. Product label.

17. 12 Screw holes for DIN-Rail mounting kit.

18. E2 LED: Not used by the TN-5508A series.

19. E1 LED: Not used by the TN-5508A series.

20. Gigabit Ethernet port E1 (corresponding to port 9 in the TN-5510A

User's Manual).

21. Gigabit Ethernet port E2 (corresponding to port 10 in the TN-5510A

User's Manual).
