9 Place the Fresco onto the wall bracket and carefully slide

the Fresco into place (see figure 23).

10 Using a 6mm Allen tool, attach a washer and cap nut onto

each pin. Do not fully tighten the cap nuts (see figure 23).

11 Make the signal connections from the amplifier (see

‘Operation’, pages 4).

12 Rotate the Fresco to point at the listening position and

tighten the cap nuts (see figure 24).

13 Rotate the Fresco’s logo medallion, by removing the grill

cloth cover, gently pressing the medallion from behind

and turning it to the correct orientation (see figure 25).

12 Mounting the Fresco On A Wall or Ceiling

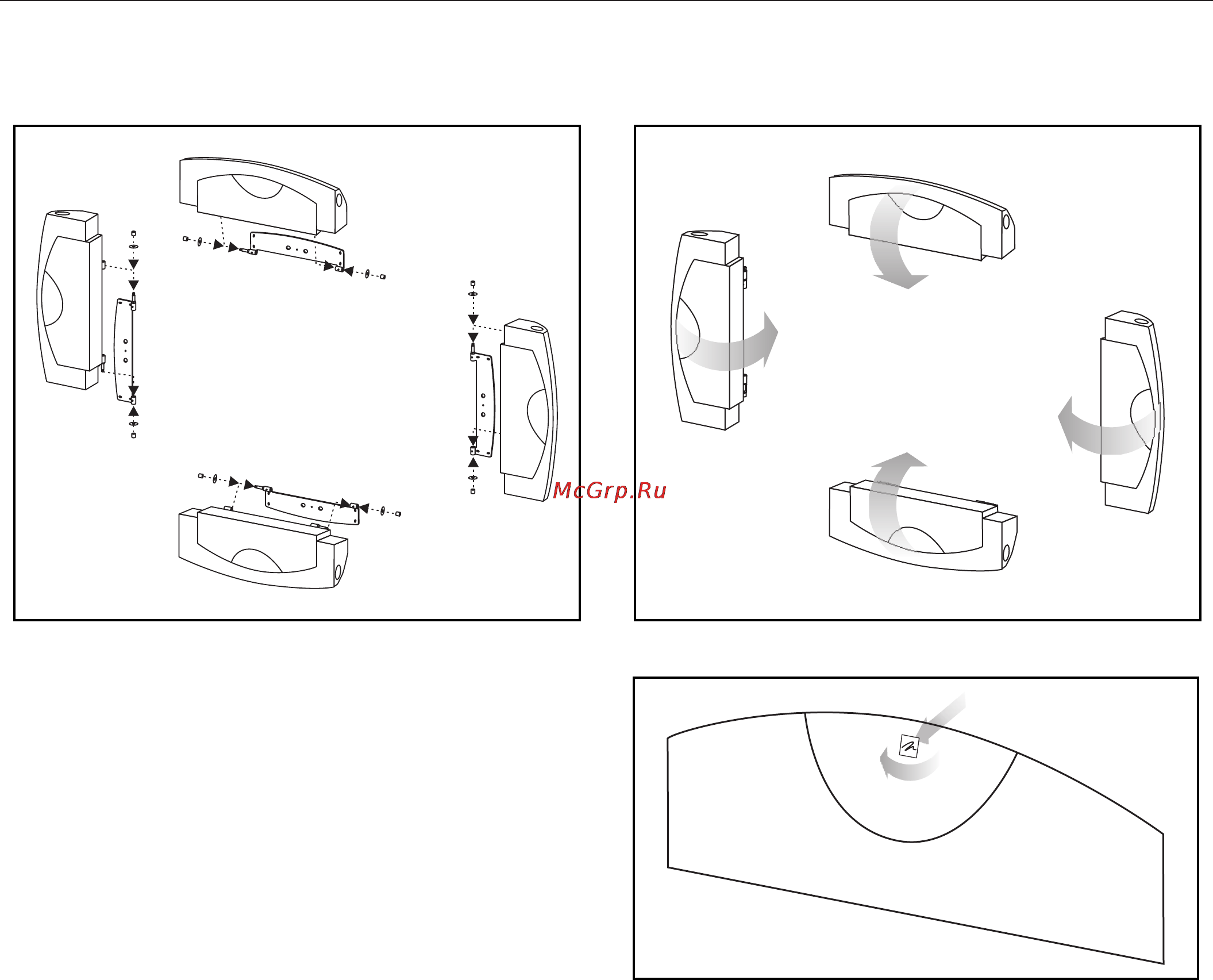

Figure 23. Install the Fresco and the washers and cap nuts. Figure 24. Rotate the Fresco into position and tighten the cap nuts.

Figure 25. Rotate the Fresco’s logo medallion so it is correctly orientated.
