MartinLogan Fresco [9/20] Installing the fresco

Required hardware (included):

(5) wall anchors

(5) 1" Phillips head wood screws

Required tools (included):

6mm Allen tool

Required tools (not included):

Level

Electric drill and

4" and

8" drill bits

Phillips screwdriver

1 Hold the Fresco at the desired location. Examine the mount-

ing location to assure that the wall is free of obstructions.

Test the direction of rotation to assure that the speaker

can rotate toward your listening position. If the speaker

rotates away from your listening position, please refer to

'Which Direction Should It Rotate?' (page 5) and ‘Changing

the Direction of Rotation’ (page 7).

2 NOTE: These instructions describe the position of the

wall bracket with the Fresco mounted flush against a

wall (not rotated on its bracket).

NOTE: The center point of the wall-bracket is not the

same as the center of the Fresco. These directions

describe the location of the center of the wall-bracket,

which you will need to know in order to mount the

speaker at your desired location.

Determine where the center point of the wall bracket

should be marked (see figures 16 and 17).

Will the Fresco remain flat against the wall? If so, it can

be installed flush against an object such as a plasma

screen (see figure18).

Will the Fresco be rotated to point towards the listening

position? If so you need to leave space between the

nearest object to allow clearance for the speaker to pivot

(see figure 18). At least 6.75” (17.2cm) of clearance will

allow the Fresco to pivot within its full range of motion.

Less space is needed if the Fresco does not need to fully

rotate. As recommended above, before drilling any holes,

hold the Fresco at its desired location and rotate it into

place to assure you have adequate clearance.

Installing the Fresco

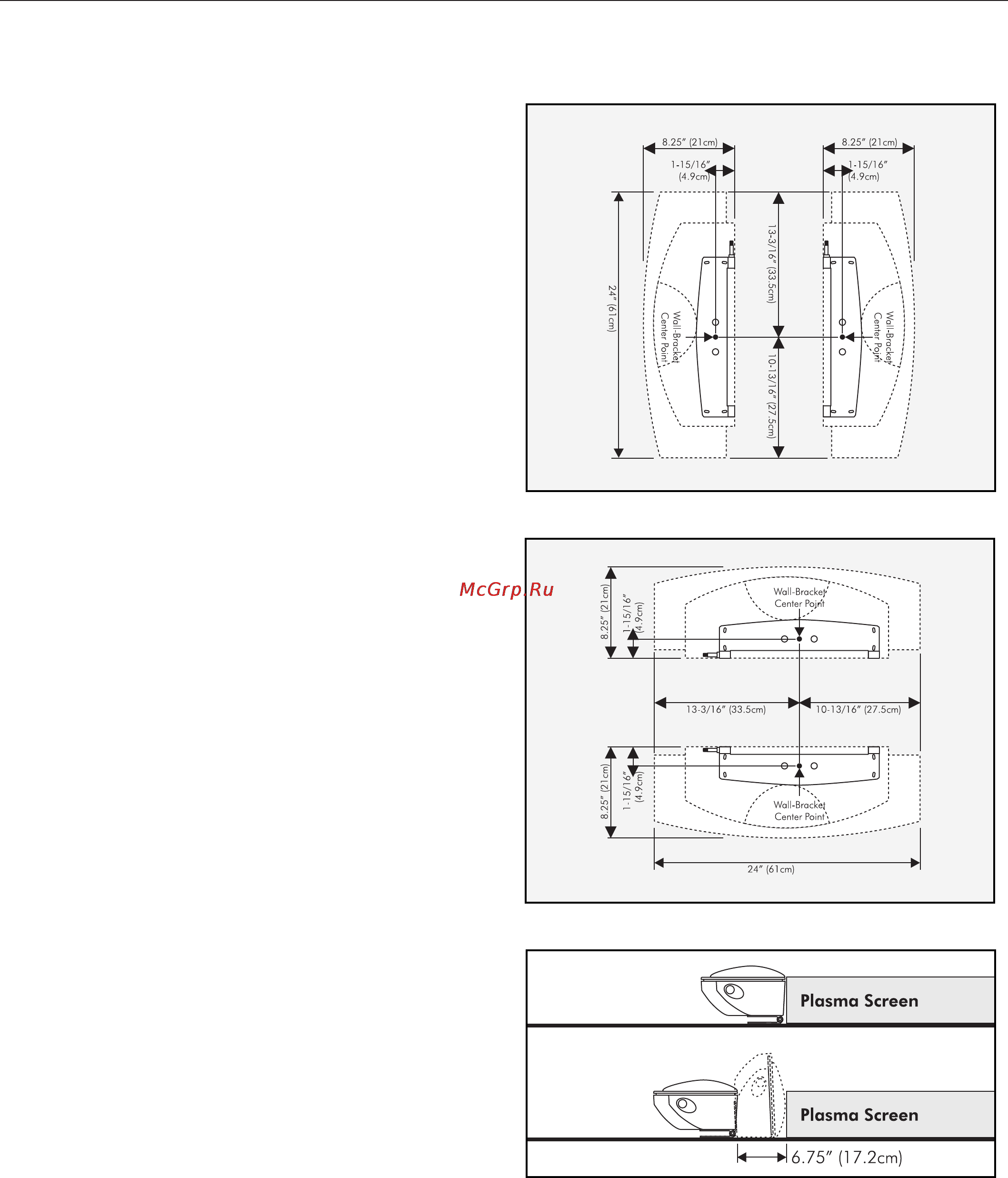

Figure 16. Determining the wall brackets center point in a vertical installation.

Figure 17. Determining the wall brackets center point in a horizontal installation.

Right

Rotation

Down

Rotation

Left

Rotation

Figure 18. Clearance requirements to allow rotation of the Fresco.

Mounting the Fresco On A Wall or Ceiling 9
