MartinLogan Fresco [8/20] Installing the bracket assembly

8 Mounting the Fresco On A Wall or Ceiling

Required hardware (included):

(6) M4 screws

Required tools (included):

2.5mm Allen tool

1 Prepare a flat surface with padding and sheets to pro-

tect the speaker as you work on it. Remove the Fresco's

grill cloth and carefully place the Fresco face down on

the work surface, using books or pieces of cardboard

to keep the speaker from rocking.

2 Using the 6mm Allen tool, loosen the 2 cap nuts (see fig-

ure 12).

3 Rotate/open the wall bracket away from the cabinet

bracket (see figure 13).

4 Align the 6 holes in the Fresco's wall mounting bracket

with the holes on the back of the Fresco's cabinet.

Please note that the wall bracket should lie flat against

the Fresco cabinet with the hinges along the flat,

straight edge of the cabinet (see figure 14).

5 Using the 2.5MM Allen tool, install the 6 screws that

attach the cabinet bracket and firmly tighten them (see

figure 15).

Installing the Bracket Assembly

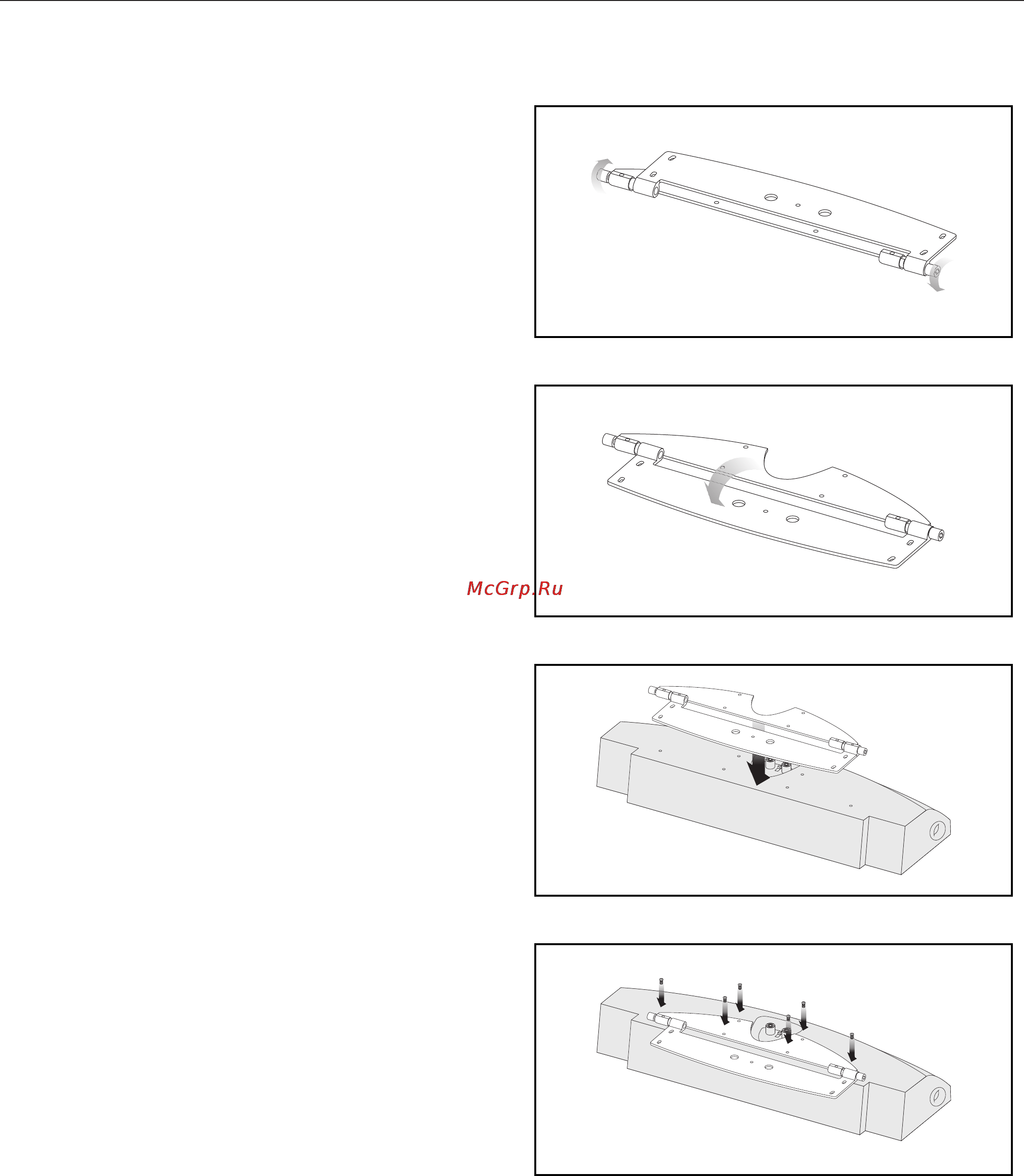

Figure 12. Loose the 2 cap nuts.

Figure 13. Rotate/open the wall bracket away from the cabinet bracket.

Figure 14. Align the 6 holes on the mounting bracket with those of the Fresco.

Figure 15. Install 6 screws.
