Mounting the Fresco On A Wall or Ceiling 7

Changing the Direction of Rotation

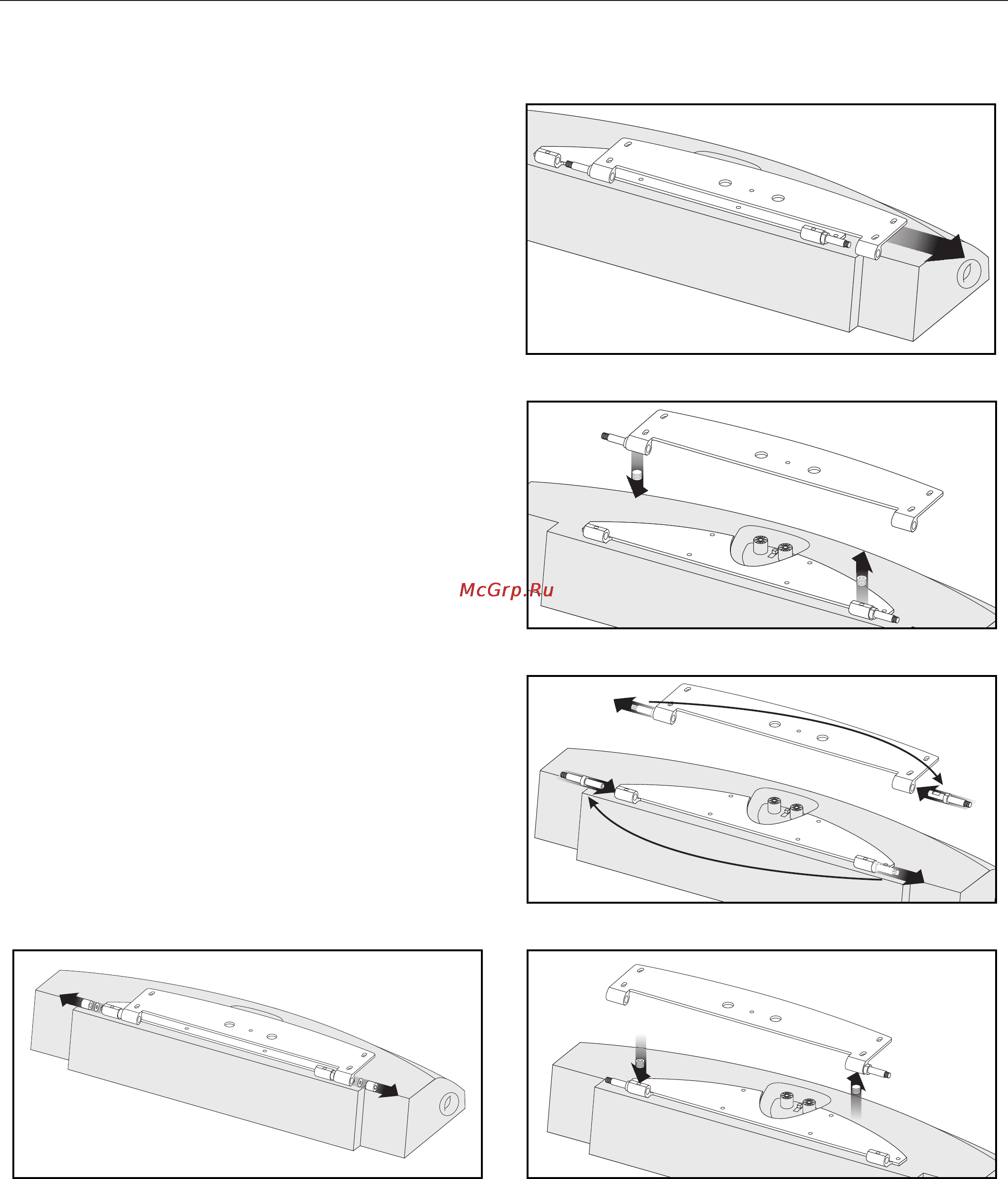

Figure 7. Remove the 2 cap nuts and washers from the hinges.

Figure 8. Remove the wall bracket from the cabinet bracket.

Figure 9. Remove the 2 set screws.

Figure 10. Change hinge pin locations.

Figure 11. Reinstall the two set screws to hold hinge pins in place.

Required tools (included):

2.5mm Allen tool, 6mm Allen tool

NOTE: This procedure can be performed either with the

bracket assembly installed on the Fresco cabinet or with the

bracket assembly uninstalled. For the purpose of illustrating

this procedure, the bracket assembly is depicted installed

on a cabinet.

1 Ignore this step if the bracket assembly is not installed on the

Fresco. Prepare a flat surface with padding and sheets to pro-

tect the speaker as you work on it. Remove the Fresco's grill

cover and carefully place the Fresco face down on the work

surface, using books or pieces of cardboard to keep the

speaker from rocking.

2 Using the 6mm Allen tool, remove the 2 cap nuts and wash-

ers from the hinges. Place them aside (see figure 7).

3 Carefully remove the wall bracket from the cabinet bracket

(see figure 8).

4 Using the 2.5mm Allen tool, carefully remove the 2 set screws

that hold the 2 hinge pins in place (see figure 9).

5 Move the wall bracket hinge pin to the outside of the

opposite hinge. Move the cabinet bracket hinge pin to

the outside of the opposite hinge (see figure 10).

6 Using the 2.5mm Allen tool, reinstall the 2 set screws to lock

the hinge pins in place. Make sure the set screw tightens

against the flat surface of the pin (see figure 11).

7 Reinstall the washers and cap nuts.
