6 Mounting the Fresco On A Wall or Ceiling

NOTE: Fresco’s bracket assembly consists of two main

parts: the wall bracket (attaches to the wall) and the cabinet

bracket (attaches to the Fresco). When correctly configured

the wall and cabinet brackets should each have one pin

installed—the wall bracket with an upward pointing pin in

the upper hinge, and the cabinet bracket with a downward

pointing pin in the lower hinge (see figures 5 and 6).

NOTE: When correctly installed in a vertical orientation, the

Fresco’s cabinet bracket (installed on the cabinet) should

slide down, onto the wall bracket (installed on the wall).

Each Fresco should be installed so that it can rotate to

point towards your listening position (see figure 3). Hold

each Fresco near it's desired location and try pivoting it to

assure that each speaker is correctly configured.

Preparing for Horizontal Installation

NOTE: Fresco’s bracket assembly consists of two main

parts: the wall bracket (attaches to the wall) and the cabinet

bracket (attaches to the Fresco). When correctly configured

each bracket should have one pin installed—the wall

bracket with a pin installed in the left hinge, pointing to

the left and the cabinet bracket with a pin installed in the

right hinge, pointing to the right (see figures 5 and 6).

NOTE: When the Fresco is correctly installed in a horizontal

orientation, gravity will pull on the speaker trying to rotate

down. The Fresco bracket assembly is designed in such a

way that the force of gravity will tighten the left cap nut and

prevent the speaker from rotating.

Each Fresco should be installed so that it can rotate to

point towards your listening position (see figure 4). Hold

each Fresco near it's desired location and try pivoting it to

assure that each speaker is correctly configured.

Preparing For Vertical Installation

INSTALLATION

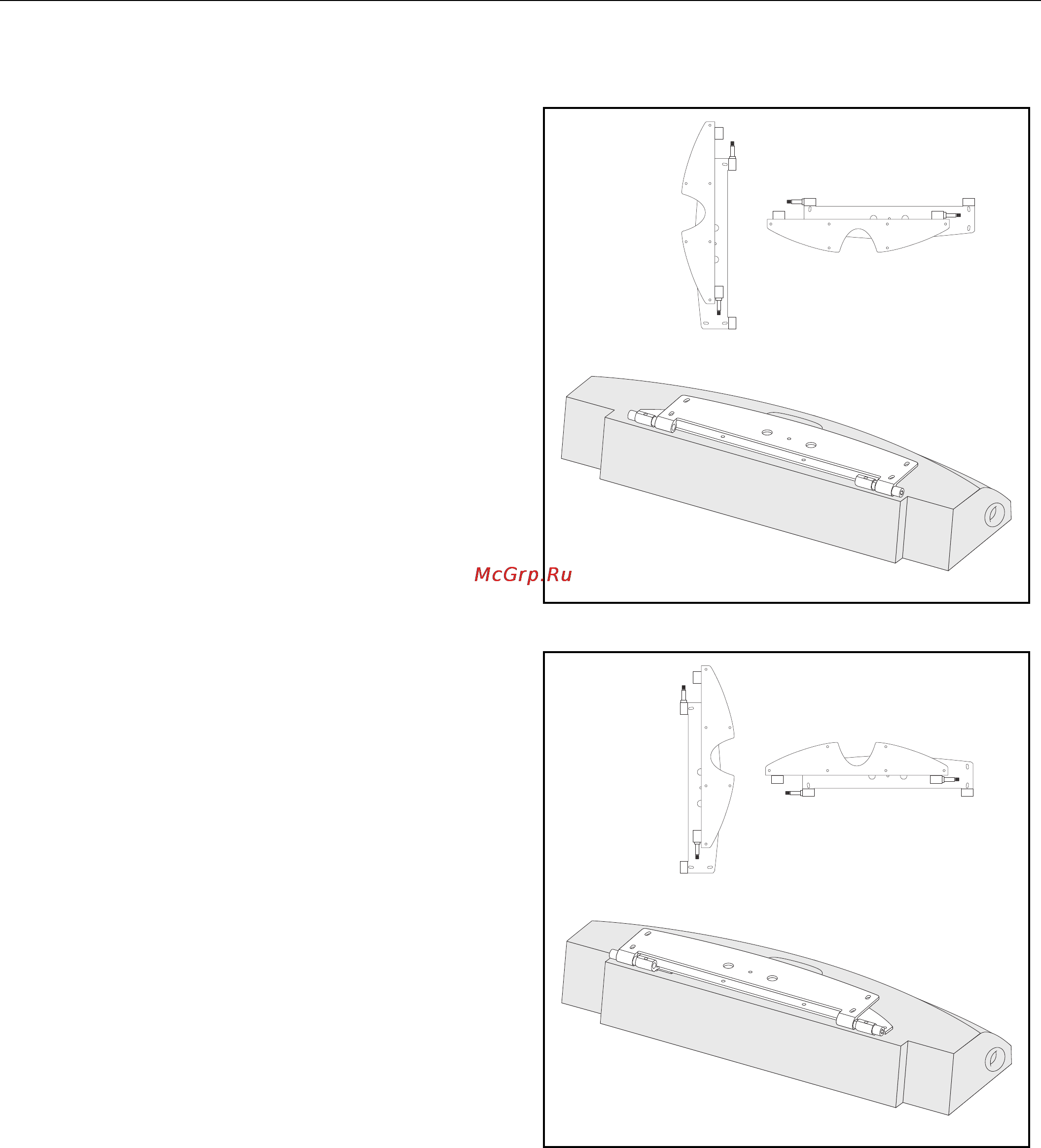

Figure 5. Fresco’s bracket assembly configured for right/up rotation

Figure 6. Fresco’s bracket assembly configured for left/down rotation

Horizontal

(Up Rotation)

Vertical

(Right Rotation)

Horizontal

(Down Rotation)

Vertical

(Left Rotation)
