NOTE: MartinLogan recommends using 5 wall anchors to

secure each Fresco to a wall. During the installation, if any

of the screw/wall anchor positions are over a stud, it is

recommended to screw directly into the stud.

NOTE: To assure that your Fresco is safely wall mounted,

these instructions must be carefully followed. Study them

thoroughly before installing your Fresco's.

NOTE: The following instructions assume the mounting

surface is of standard wood frame and standard sheet rock

construction. If you wish to mount the Fresco to another

type of material, you should consult a bonded contractor.

WARNING! Installing the Fresco on a wall requires

only 1 person, but an assistant will be helpful.

The bracket assembly shipped with the Fresco

loudspeaker is designed for use only with the

Fresco. Use with other appliances may result in

instability causing possible injury. To prevent injury,

this apparatus must be securely attached to the

wall in accordance with the installation instructions.

Which Way Should It Rotate?

The bracket assembly supplied with the Fresco allows the

speaker to mount flat against a wall and pivot up to 90°.

Depending on the installation locations, the Fresco on-wall

bracket will need to be modified to allow either right/up or

left/down rotation (see figure 3 and 4). The configuration of

Fresco’s bracket assembly is identical for right and up

rotation and is identical for left and down rotation.

Mounting the Fresco On A Wall or Ceiling 5

MOUNTING THE FRESCO ON A WALL OR CEILING

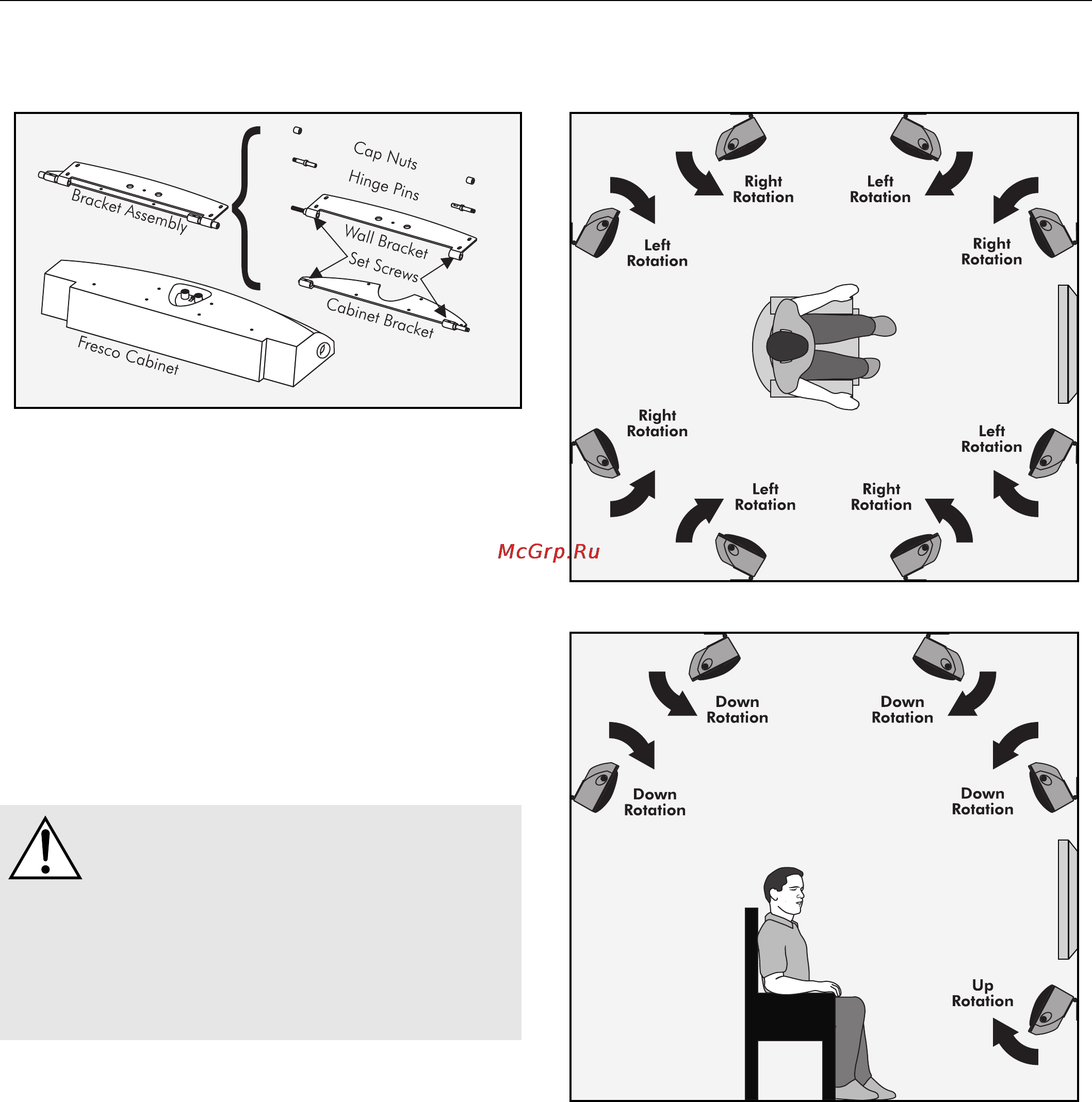

Figure 3. Vertical Installation. Rotation direction for various installation locations.

Figure 2. The parts of the Fresco bracket assembly.

Figure 4. Horizontal Installation. Rotation direction for various installation locations.
