9 Place the Fresco i onto the wall bracket and carefully

slide the Fresco i into place (see figure 23).

10 Using a 6mm Allen tool, attach a washer and cap nut

onto each pin. Do not fully tighten the cap nuts (see

figure 23).

11 Make the signal connections from the amplifier (see ‘

Operation’, pages 4).

12 Rotate the Fresco i to point at the listening position and

tighten the cap nuts (see figure 24).

13 Rotate the Fresco i’s logo medallion, by removing the

grill cloth cover, gently pressing the medallion from

behind and turning it to the correct orientation (see

figure 25).

12 Mounting the Fresco i On A Wall or Ceiling

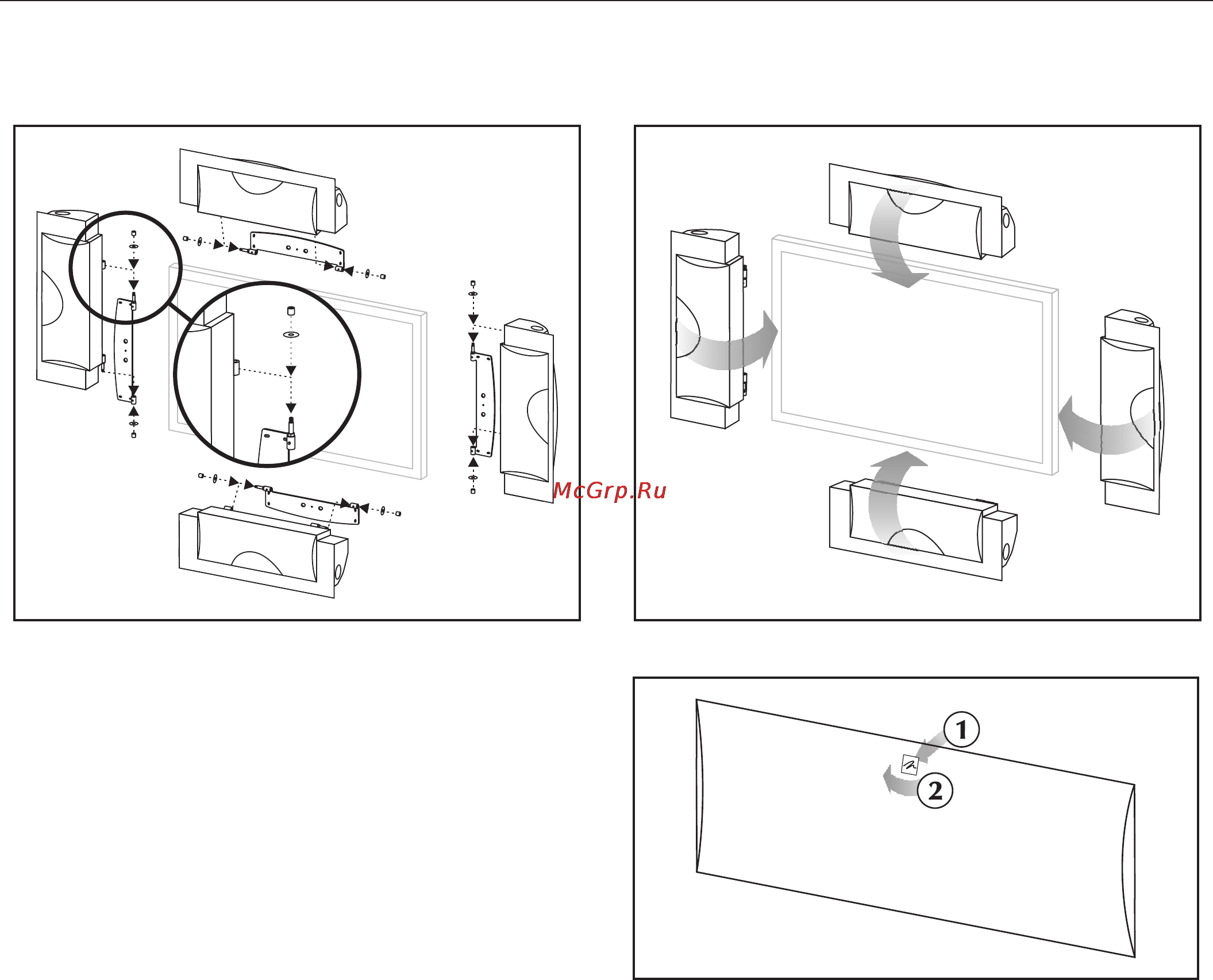

Figure 23. Install the Fresco i and the washers and cap nuts. Figure 24. Rotate the Fresco i into position and tighten the cap nuts.

Figure 25. Rotate the Fresco i’s logo medallion so it is correctly orientated.
