6 Mounting the Fresco i On A Wall or Ceiling
NOTE: Fresco i’s bracket assembly consists of two main
parts: the wall bracket (attaches to the wall) and the
cabinet bracket (attaches to the Fresco i). When correctly
configured the wall and cabinet brackets should each
have one pin installed—the wall bracket with an upward
pointing pin in the upper hinge, and the cabinet bracket
with a downward pointing pin in the lower hinge (see
figures 5 and 6).
NOTE: When correctly installed in a vertical orientation,
the Fresco i’s cabinet bracket (installed on the cabinet)
should slide down, onto the wall bracket (installed on the
wall).
Each Fresco i should be installed so that it can rotate to
point towards your listening position (see figure 3). Hold
each Fresco i near its desired location and try pivoting it
to assure that each speaker is correctly configured.
Preparing for Horizontal
Installation
NOTE: Fresco i’s bracket assembly consists of two main
parts: the wall bracket (attaches to the wall) and the
cabinet bracket (attaches to the Fresco i). When correctly
configured each bracket should have one pin installed
—the wall bracket with a pin installed in the left hinge,
pointing to the left and the cabinet bracket with a pin
installed in the right hinge, pointing to the right (see
figures 5 and 6).
NOTE: When the Fresco i is correctly installed in a
horizontal orientation, gravity will pull on the speaker
trying to rotate down. The Fresco i bracket assembly
is designed in such a way that the force of gravity will
tighten the left cap nut and prevent the speaker from
rotating.
Each Fresco i should be installed so that it can rotate to
point towards your listening position (see figure 4). Hold
each Fresco i near its desired location and try pivoting it
to assure that each speaker is correctly configured.
Preparing For Vertical Installation
INSTALLATION

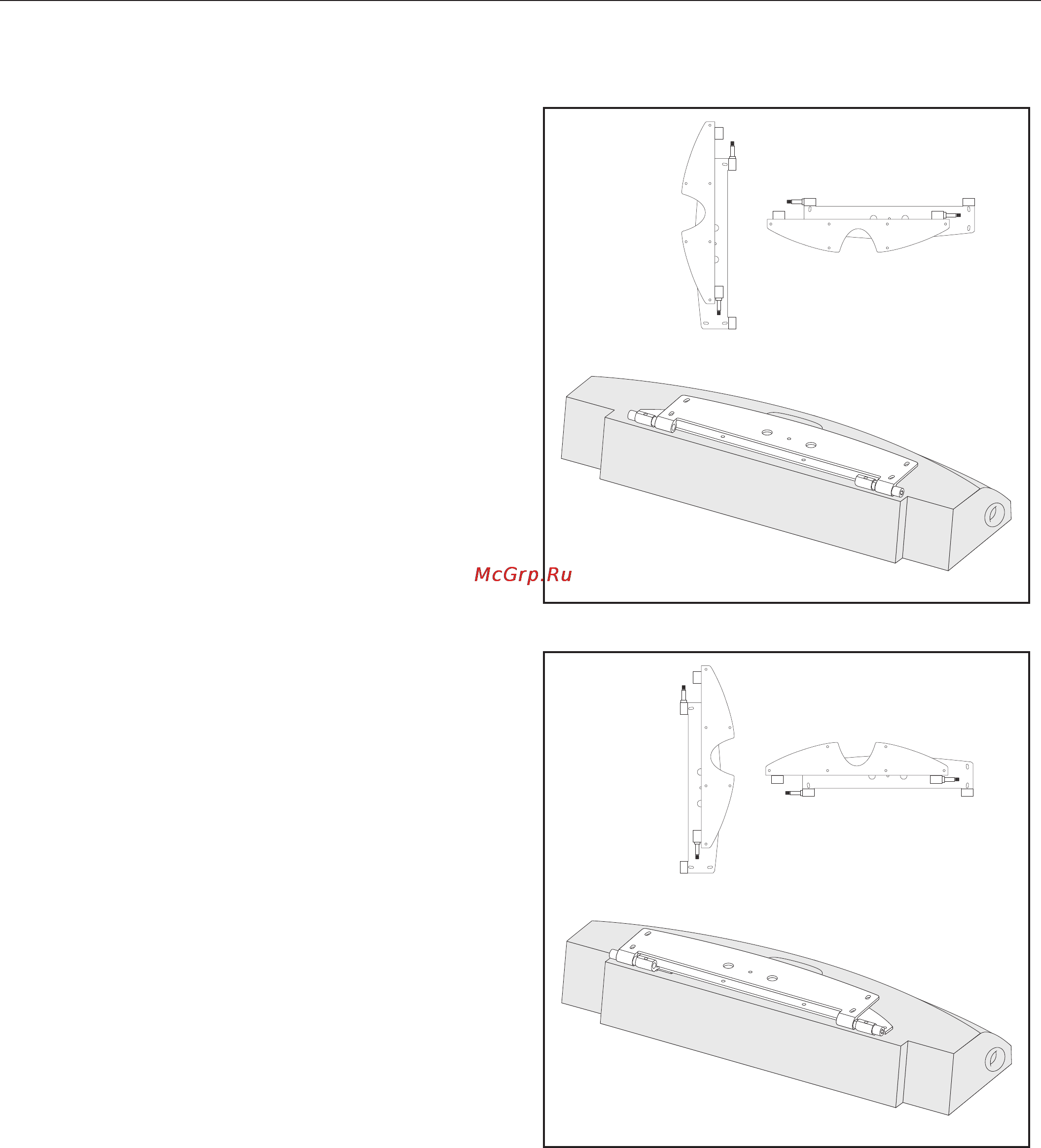

Figure 5. Fresco i’s bracket assembly configured for right/up rotation
Figure 6. Fresco i’s bracket assembly configured for left/down rotation
Horizontal
(Up Rotation)
Vertical
(Right Rotation)
Horizontal
(Down Rotation)
Vertical
(Left Rotation)
