NOTE: MartinLogan recommends using 5 wall anchors

to secure each Fresco i to a wall. During the installation,

if any of the screw/wall anchor positions are over a stud,

it is recommended to screw directly into the stud.

NOTE: To assure that your Fresco i is safely wall

mounted, these instructions must be carefully followed.

Study them thoroughly before installing your Fresco i's.

NOTE: The following instructions assume the mounting

surface is standard wood frame and standard sheet rock

construction. If you wish to mount the Fresco i to another

type of material, you should consult a bonded contractor.

WARNING! Although installing the Fresco i on a

wall requires 1 person, an assistant will be helpful.

The bracket assembly shipped with the Fresco i

loudspeaker is designed for use only with the

Fresco i. Use with other appliances may result in

instability causing possible injury. To prevent injury,

this apparatus must be securely attached to the

wall in accordance with the installation instructions.

Which Way Should It Rotate?

The bracket assembly supplied with the Fresco i allows the

speaker to mount flat against a wall and pivot up to 90°.

Depending on the installation locations, the Fresco i

on-wall bracket will need to be modified to allow either

counter-clockwise/up or clockwise/down rotation (see

figure 3 and 4). The configuration of Fresco i’s bracket

assembly is identical for counter-clockwise and up

rotation and is identical for clockwise and down rotation.

Mounting the Fresco i On A Wall or Ceiling 5

MOUNTING THE FRESCO I ON A WALL OR CEILING

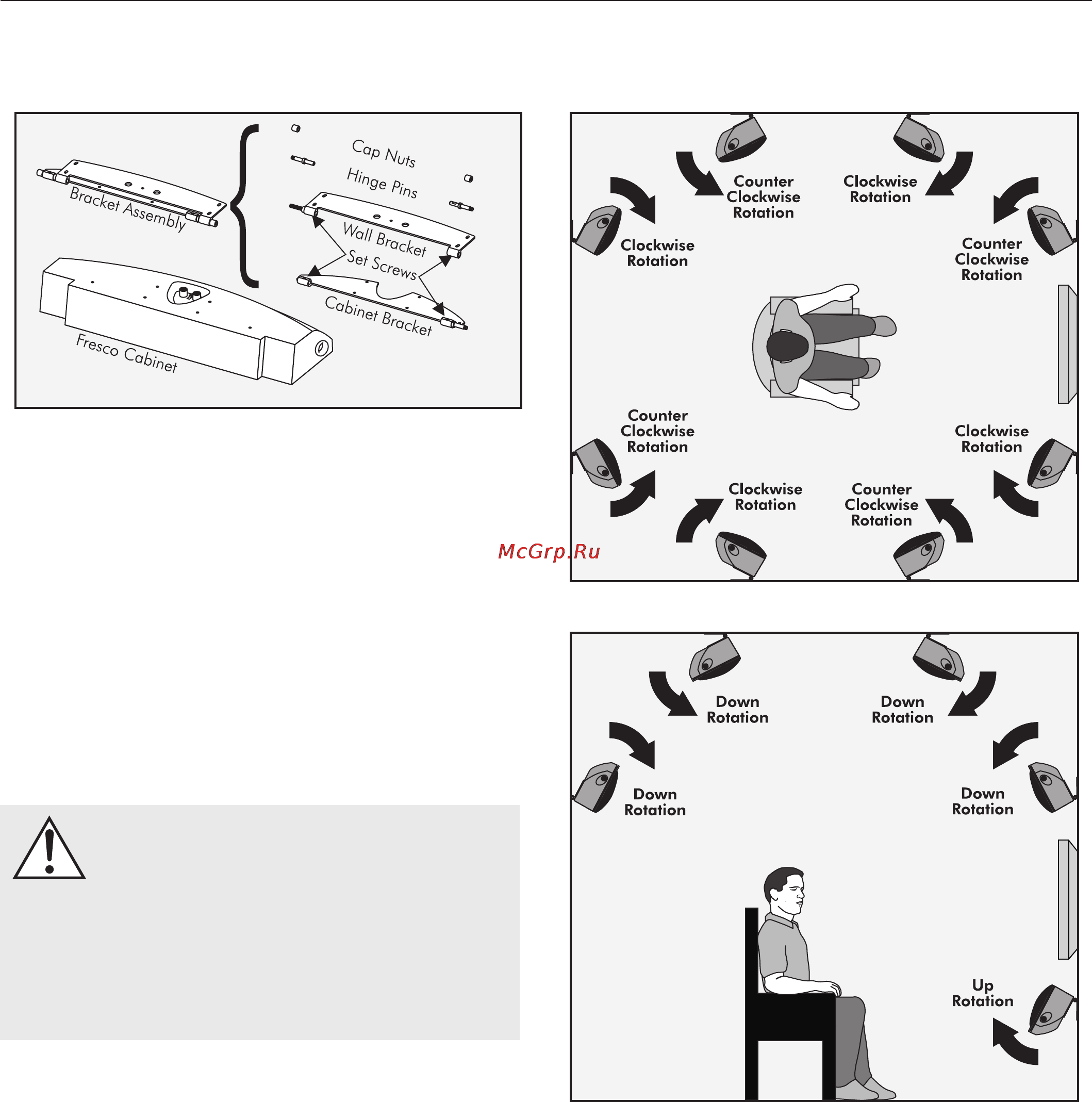

Figure 3. Vertical Installation. Rotation direction for various installation

Figure 2. The parts of the Fresco i bracket assembly.

Figure 4. Horizontal Installation. Rotation direction for various installation
