MartinLogan Fresco i [7/20] Changing the direction of rotation

Mounting the Fresco i On A Wall or Ceiling 7

Changing the Direction of Rotation

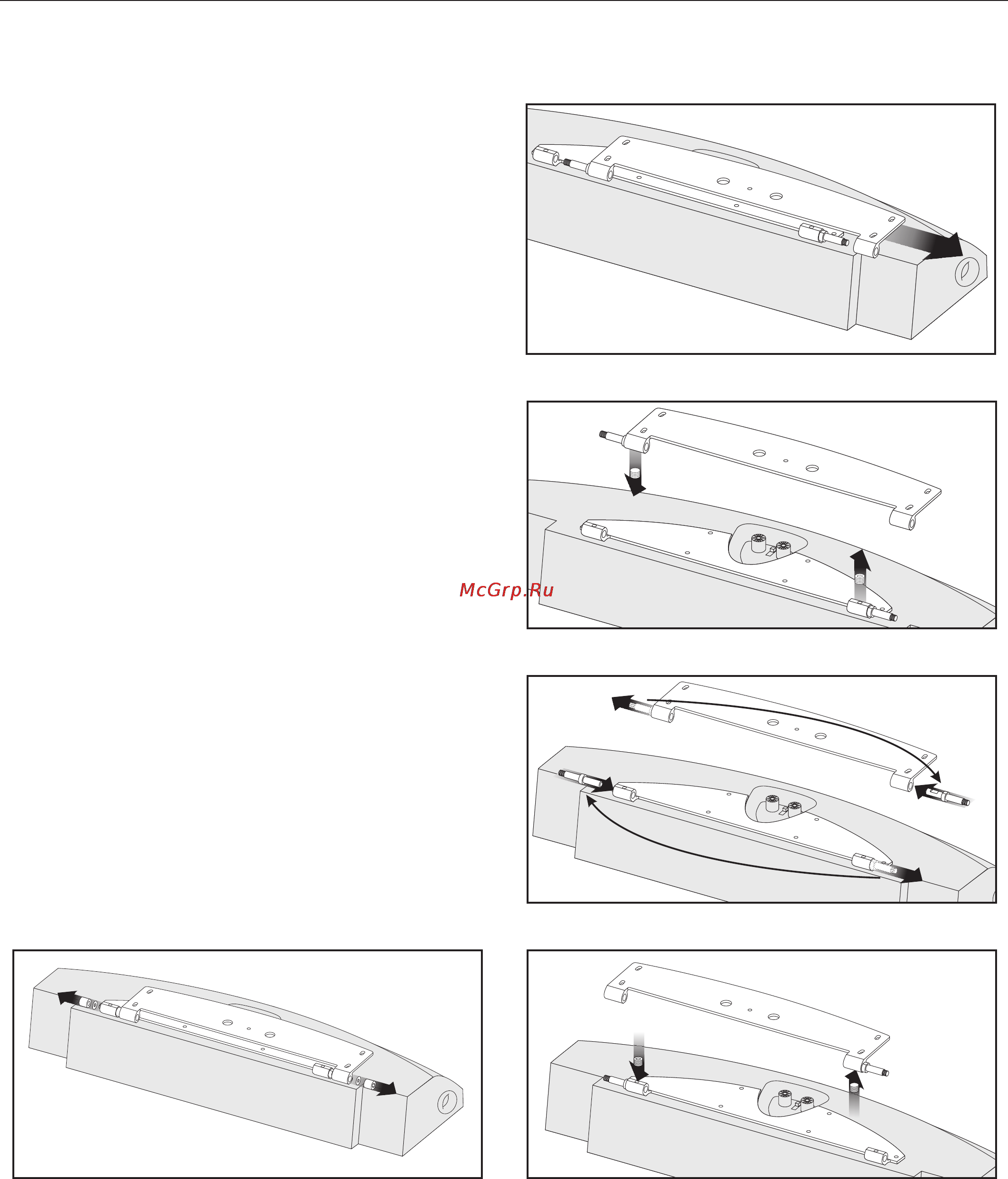

Figure 7. Remove the 2 cap nuts and washers from the hinges.

Figure 8. Remove the wall bracket from the cabinet bracket.

Figure 9. Remove the 2 set screws.

Figure 10. Change hinge pin locations.

Figure 11. Reinstall the two set screws to hold hinge pins in place.

Required tools (included):

2.5mm Allen tool, 6mm Allen tool

NOTE: This procedure can be performed either with

the bracket assembly installed on the Fresco i cabinet or

with the bracket assembly uninstalled. For the purpose

of illustrating this procedure, the bracket assembly is

depicted installed on a cabinet.

1 Ignore this step if the bracket assembly is not installed

on the Fresco i. Prepare a flat surface with padding

and sheets to protect the speaker as you work on it.

Remove the Fresco i's grill cover and carefully place

the Fresco i face down on the work surface, using

books or pieces of cardboard to keep the speaker

from rocking.

2 Using the 6mm Allen tool, remove the 2 cap nuts and

washers from the hinges. Place them aside (see figure 7).

3 Carefully remove the wall bracket from the cabinet

bracket (see figure 8).

4 Using the 2.5mm Allen tool, carefully remove the 2 set

screws that hold the 2 hinge pins in place (see figure 9).

5 Move the wall bracket hinge pin to the outside of the

opposite hinge. Move the cabinet bracket hinge pin to

the outside of the opposite hinge (see figure 10).

6 Using the 2.5mm Allen tool, reinstall the 2 set screws

to lock the hinge pins in place. Make sure the set

screw tightens against the flat surface of the pin (see

figure 11).

7 Reinstall the washers and cap nuts.
