MartinLogan Fresco i [8/20] Installing the bracket assembly

8 Mounting the Fresco i On A Wall or Ceiling

Required hardware (included):

(6) M4 screws

Required tools (included):

2.5mm Allen tool

1 Prepare a flat surface with padding and sheets to

protect the speaker as you work on it. Remove the

Fresco i's grill cloth and carefully place the Fresco i

face down on the work surface.

2 Using the 6mm Allen tool, loosen the 2 cap nuts (see

figure 12).

3 Rotate/open the wall bracket away from the cabinet

bracket (see figure 13).

4 Align the 6 holes in the Fresco i's wall mounting

bracket with the holes on the back of the Fresco i's

cabinet. Please note that the wall bracket should lie

flat against the Fresco i cabinet with the hinges along

the flat, straight edge of the cabinet (see figure 14).

5 Using the 2.5MM Allen tool, install the 6 screws that

attach the cabinet bracket and firmly tighten them (see

figure 15).

Installing the Bracket Assembly

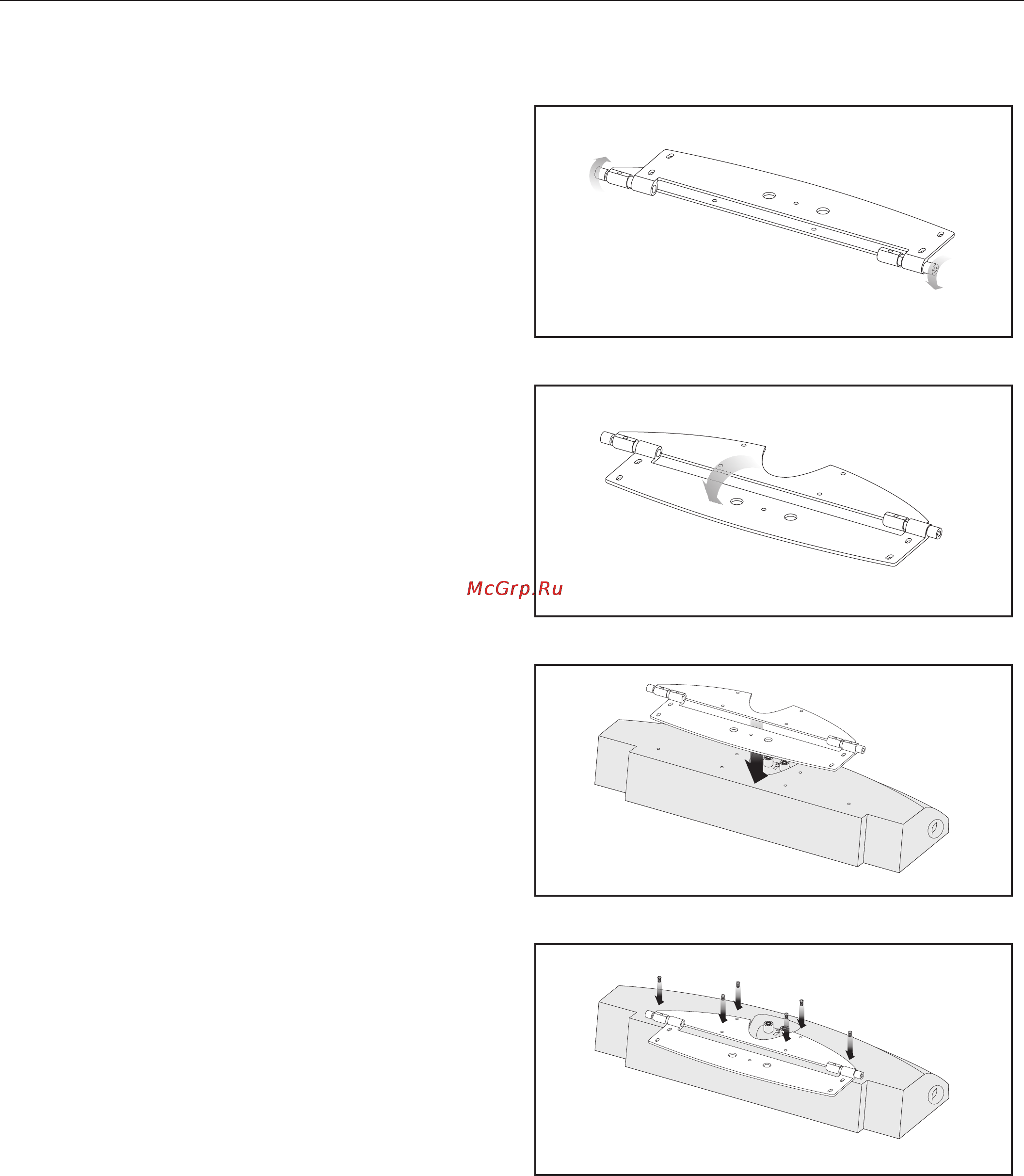

Figure 12. Loose the 2 cap nuts.

Figure 13. Rotate/open the wall bracket away from the cabinet bracket.

Figure 14. Align the 6 holes on the mounting bracket with those of the Fresco

Figure 15. Install 6 screws.
