AWK-1121/1127 Getting Started
2-2
First-time Installation and Configuration
Before installing the AWK-1121/1127, make sure that all items in the Package Checklist are in the box. You will
need access to a notebook computer or PC equipped with an Ethernet port. The AWK-1121/1127 has a default
IP address that must be used when connecting to the device for the first time.
• Step 1: Select the power source.
The AWK-1121/1127 may be powered by a DC power input or PoE (Power over Ethernet, PoE model only).
• Step 2: Connect the AWK-1121/1127 to a notebook or PC.
Since the AWK-1121/1127 supports MDI/MDI-X auto-sensing, either a straight-through or crossover cable
may be used to connect to a computer. The LAN port LED indicator will light up when a connection is
established.
• Step 3: Set up the computer’s IP address.
Choose an IP address on the same subnet as the AWK-1121/1127. Since the AWK-1121/1127’s default IP
address is 192.168.127.253, and the subnet mask is 255.255.255.0, you should set the IP address of
the computer to 192.168.127.xxx.
NOTE
After you
select Maintenance Load Factory Defaults and click the Activate button, the
AWK
-1121/1127 will be reset to factory default settings and the IP address will be reset to
192.168.127.253
.

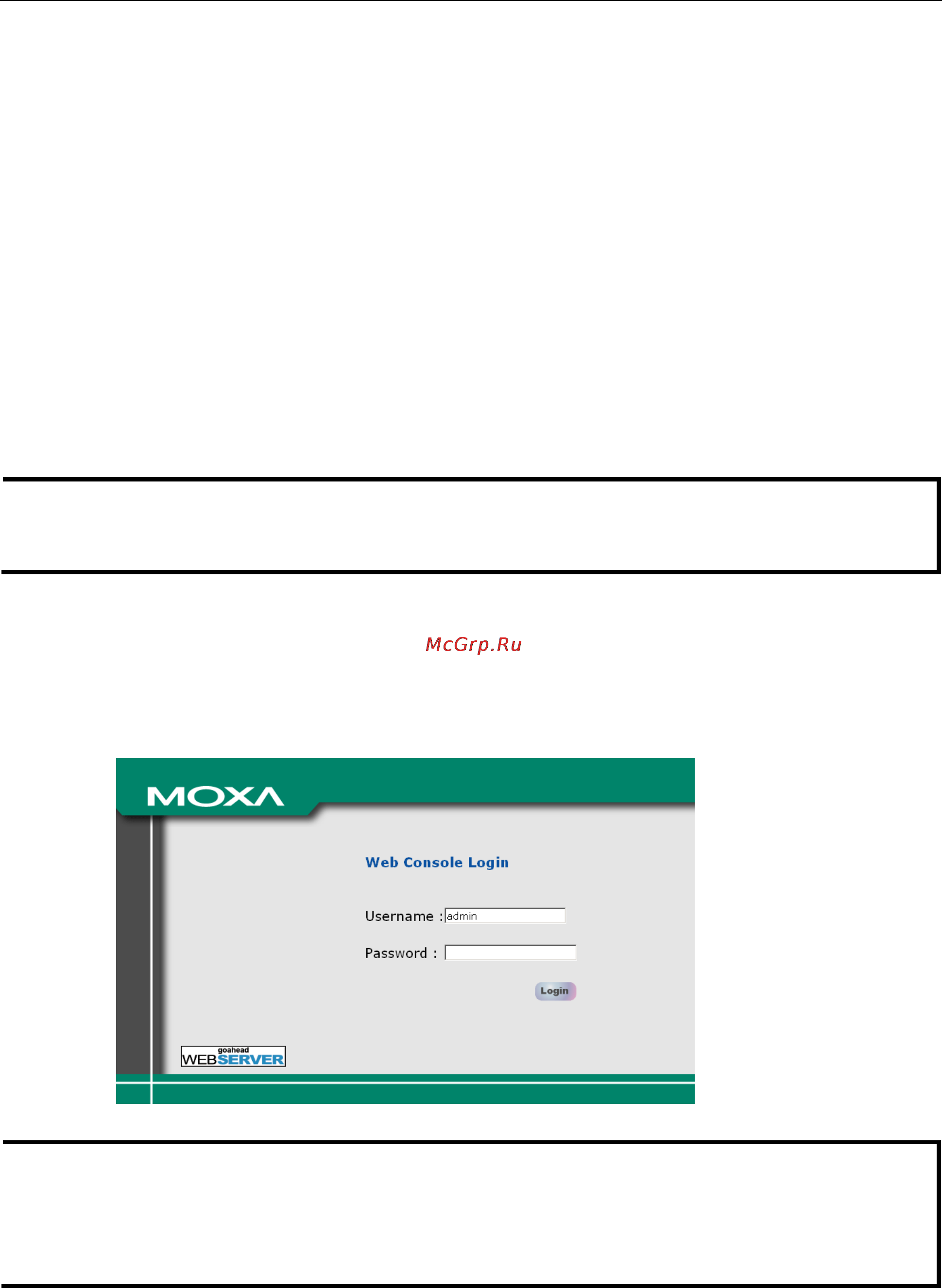

• Step 4: Use the web-based manager to configure the AWK-1121/1127
Open your computer’s web browser and type http://192.168.127.253 in the address field to access the
homepage of the web-based Network Manager. Before the homepage opens, you will need to enter the user
name and password as shown in the following figure. For first-time configuration, enter the default user
name and password and then click on the Login button:
NOTE
Default user name and password:
User Name: admin
Password: root
For security reasons, we strongly recommend changing the default password. To do so,
select
Maintenance
Password, and then follow the on-screen instructions to change the password.
