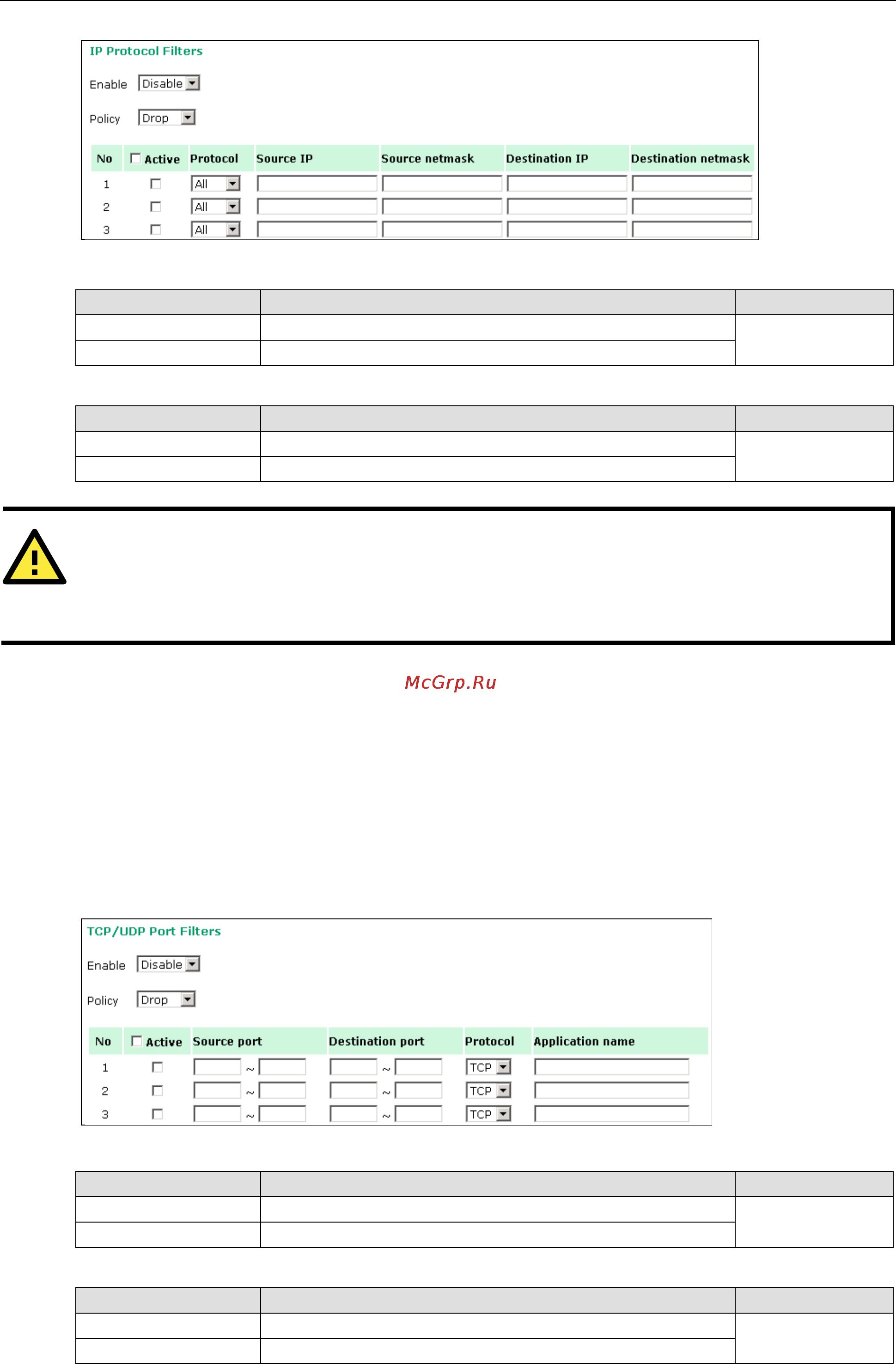

AWK-1121/1127 Web Console Configuration
3-18
Enable
Setting Description Factory Default
Enable Enables IP protocol filter Disable
Disable Disables IP protocol filter
Policy
Setting Description Factory Default
Accept
Only the packets fitting the entities on the list can be allowed
Drop
Drop Any packet fitting the entities on the list will be denied
ATTENTION
Be careful when you enable the filter function:
Drop
+ “no entity on list is activated” = all packets are allowed.
Accept
+ “no entity on list is activated” = all packets are denied.
TCP/UDP Port Filter
The AWK-1121/1127’s TCP/UDP port filter is a policy-based filter that can allow or filter out TCP/UDP-based
packets with a specified source or destination port.
The AWK-1121/1127 provides 8 entities for setting the range of source/destination ports of a specific protocol.
In addition to selecting TCP or UDP protocol, you can set either the source port, destination port, or both. The
end port can be left empty if only a single port is specified. Of course, the end port cannot be larger then the
start port.
The Application name is a text string that describes the corresponding entity with up to 31 characters.
Remember to check the Active check box for each entity to activate the setting.
Enable
Setting Description Factory Default
Enable Enables TCP/UDP port filter Disable
Disable Disables TCP/UDP port filter
Policy
Setting Description Factory Default
Accept
Only the packets fitting the entities on list can be allowed.
Drop
Drop Any packet fitting the entities on list will be denied.
