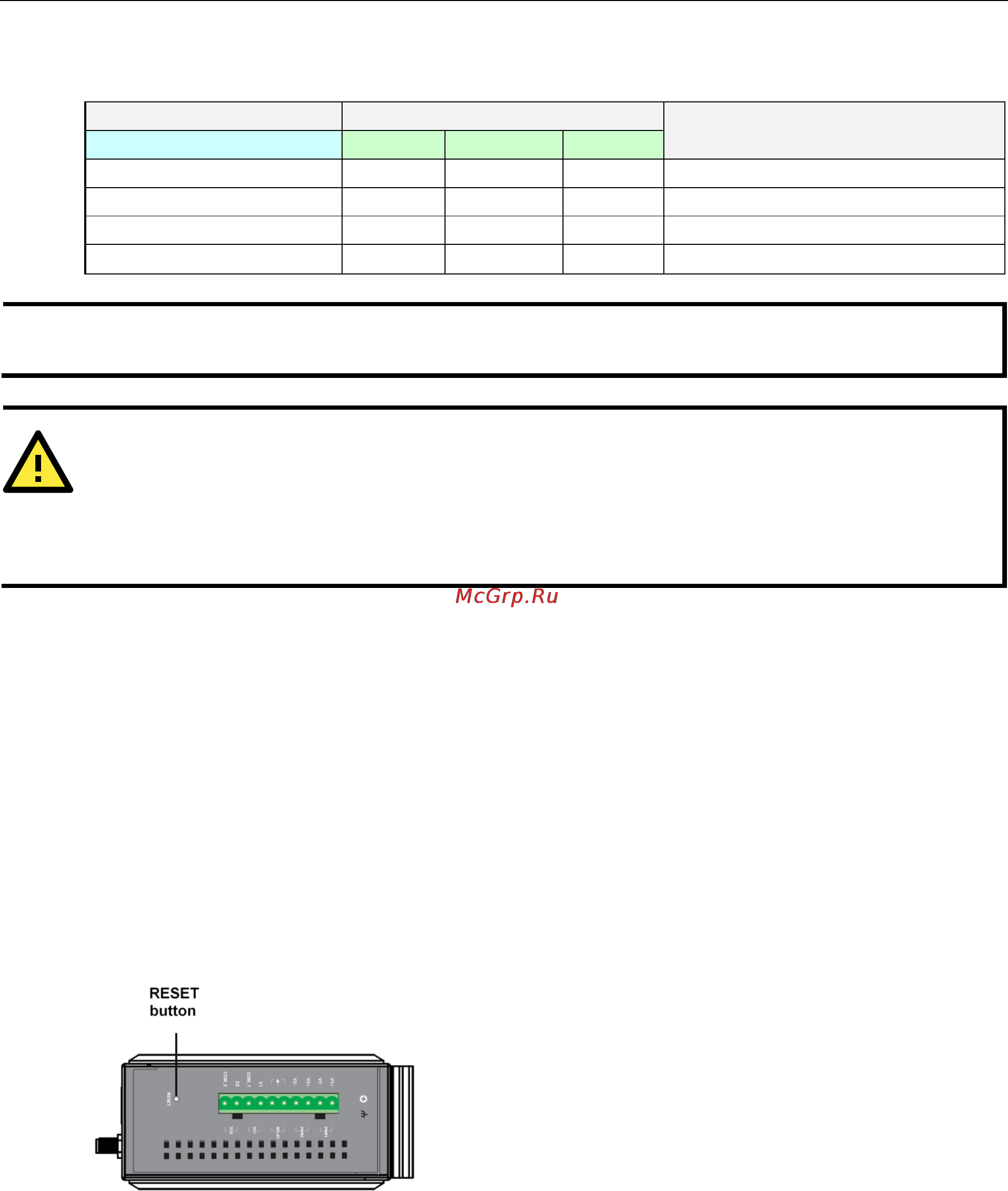

AirWorks AWK-3121-RTG Introduction
1-6
The following table summarizes how to read the device’s wireless settings from the LED displays. More
information is available in Chapter 3 in the “Basic Wireless Settings” section.
Basic Wireless Settings LEDs
Note
Operation mode CLIENT BRIDGE SIGNAL
AP off off – AP mode
Client/Client-Router
on
off
0
Client mode: no association
Client/Client-Router on off 1 Client mode: associated, poor signal
Client/Client-Router on off 2-5 Client mode: associated, good signal
NOTE
The current firmware version of the
AWK-3121-RTG does not support Bridge, and consequently the
BRIDGE
LED is
not functional.
ATTENTION
If t
he FAULT, SIGNAL, CLIENT, and WLAN LEDs light up simultaneously and blink at one-second intervals
,
then
the system has failed to boot up. This may be due to improper operation or factors beyond your control
,
such as an unexpected shutdown during
a firmware update. Instructions on how to recover the firmware
can
be found in Chapter 6 in the
“Firmware Recovery” section.
Beeper
The beeper emits two short beeps when the system is ready.
Reset Button
The RESET button is located on the top panel of the AWK-3121-RTG. You can reboot the AWK-3121-RTG or
reset it to factory default settings by pressing the RESET button with a pointed object such as an unfolded
paper clip.
• System reboot: Hold the RESET button down for under 5 seconds and then release.
• Reset to factory default: Hold the RESET button down for over 5 seconds until the STATE LED starts
blinking green. Release the button to reset the AWK-3121-RTG.
