AirWorks AWK-3121-RTG Introduction
1-7
Relay (Digital Output)

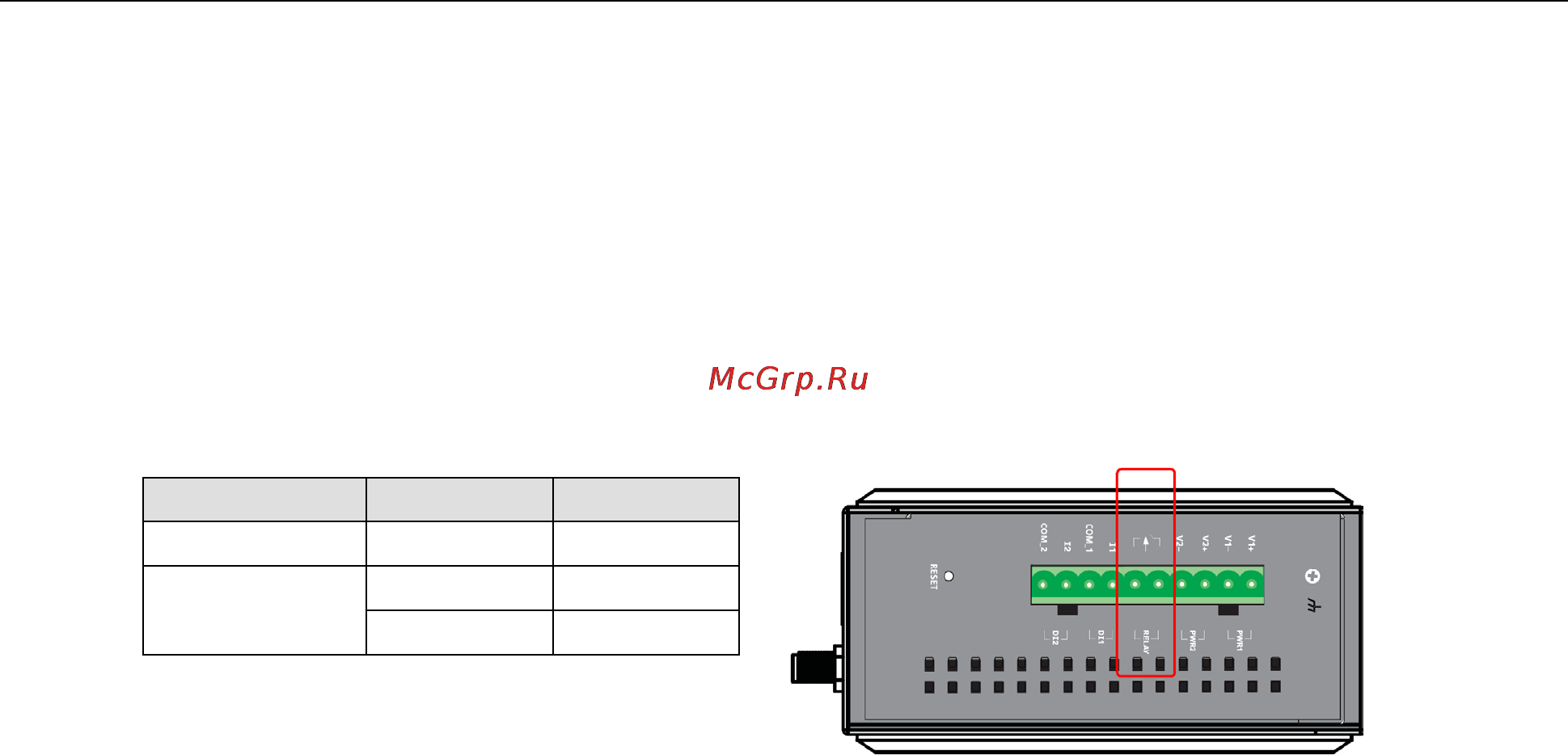

The AWK-3121-RTG has one relay output consisting of the 2 terminal block contacts on the top panel, as shown
below. These relay contacts are used to forward system failures and user-configured events.
The 2 wires attached to the relay contacts form an open circuit when a user-configured event is triggered. If a
user-configured event does not occur, the relay circuit will remain closed. For safety reasons, the relay circuit
is kept open when the AWK-3121-RTG is not powered up.
Summary of the AWK-3121-RTG’s Relay Status
Power Status Event Relay
Off – Open
On
Yes Open
No Short
