Moxa AWK-6222-EU-T [11/15] Waterproof rj45 plug optional

- 11 -

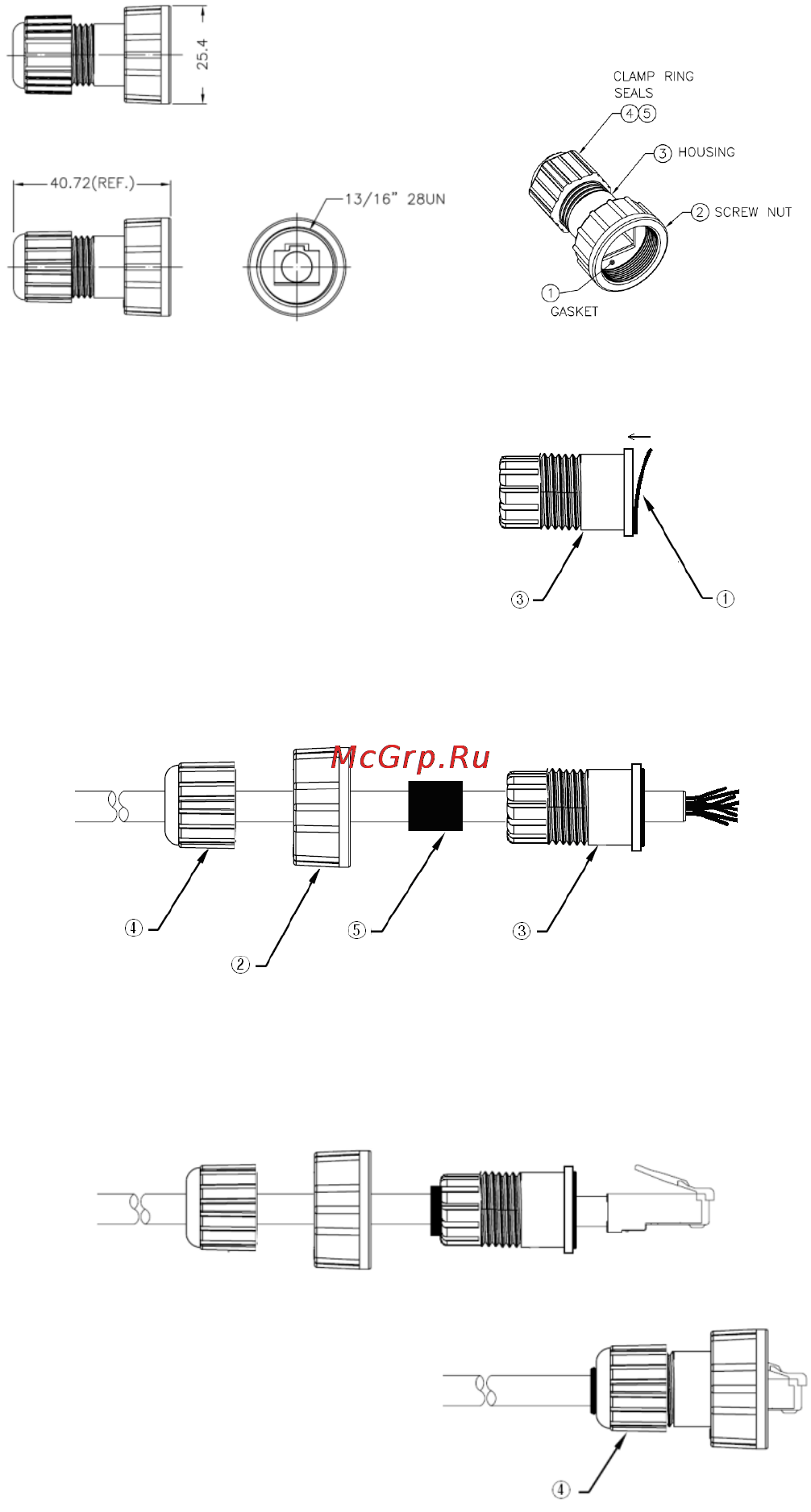

Waterproof RJ45 Plug (Optional)

Dimensions (unit: mm)

Installation

STEP 1:

Attach the gasket

① to the

housing

③

STEP 2:

Insert the cable (ex. CAT5e) through the clamp ring ④, screw nut ②, seal

⑤ and housing ③, as follows:

STEP 3:

Crimp the modular RJ plug to the cable. Note that the use of a snagless

cover shield or a strain-relief boot is not recommended here. Then,

assemble the seals and the housing (③ and ⑤).

STEP 4:

Tightly screw the clamp ring

④ to

the housing and check to make sure

that the plug is securely fastened.

(NOTE: F

or a tighter connection,

you can connect the RJ

-45 plug to

the AWK-6222 before STEP 4.)
