Moxa CP-104EL-A-DB9M [19/111] Pci express boards software installation
![Moxa CP-104EL-A-DB9M [19/111] Pci express boards software installation](/views2/1198517/page19/bg13.png)
PCI Express Boards Software Installation
3-3

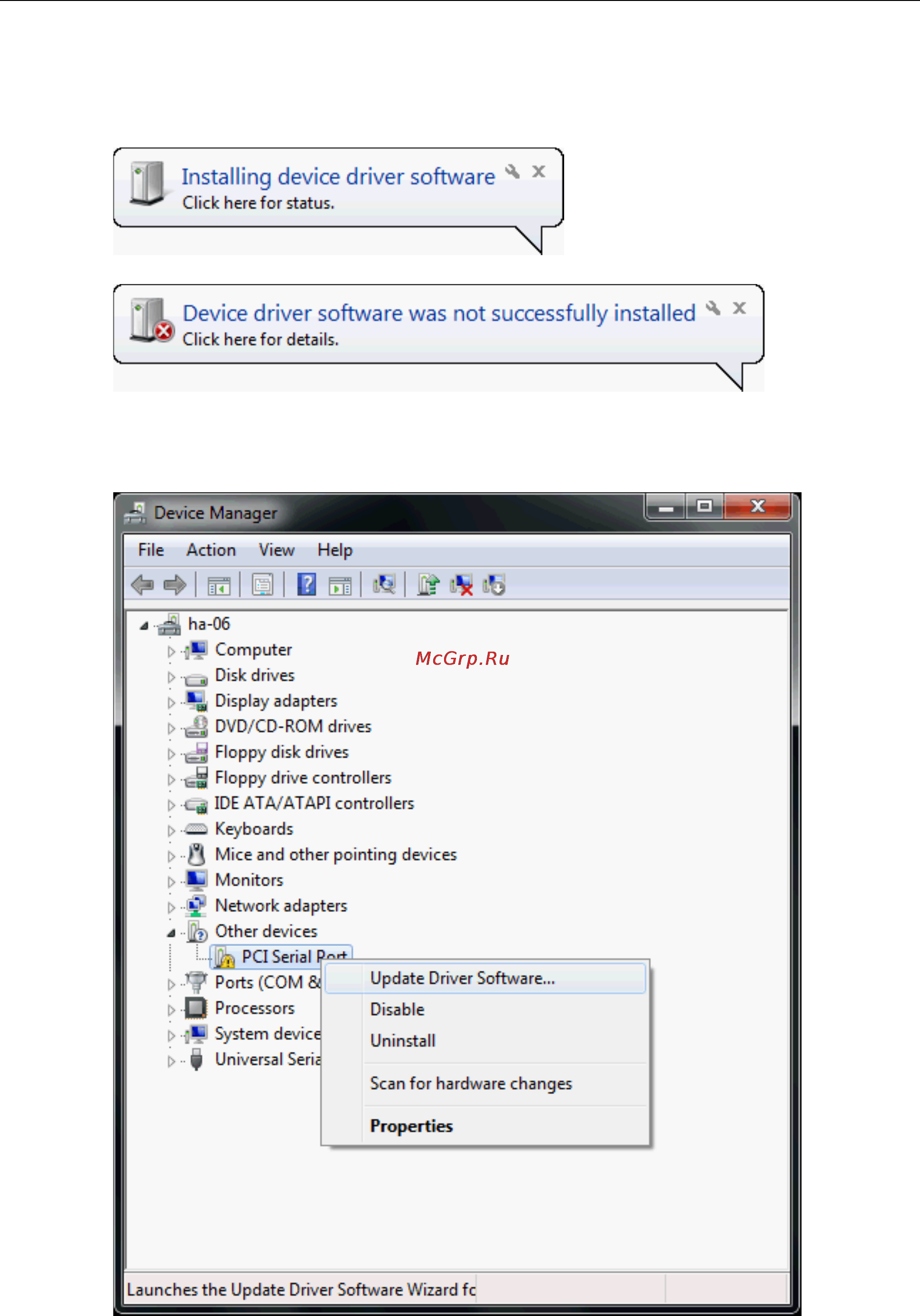

1. After plugging the board into an expansion slot and powering on your PC, Windows 7 will automatically
detect the new board, and a pop-up window* that states, “Device driver software was not successfully
installed,” will appear in the lower right corner of your computer screen.
*The pop-up message will not appear in Windows 8.
2. Go to Device Manager/Other devices to install the PCI Serial Port driver. Right click on the PCI Serial
port. Windows will offer to connect to the Windows update site to search for a driver. Select Update Driver
Software….
