PCI Express Boards Pin Assignments

6-3

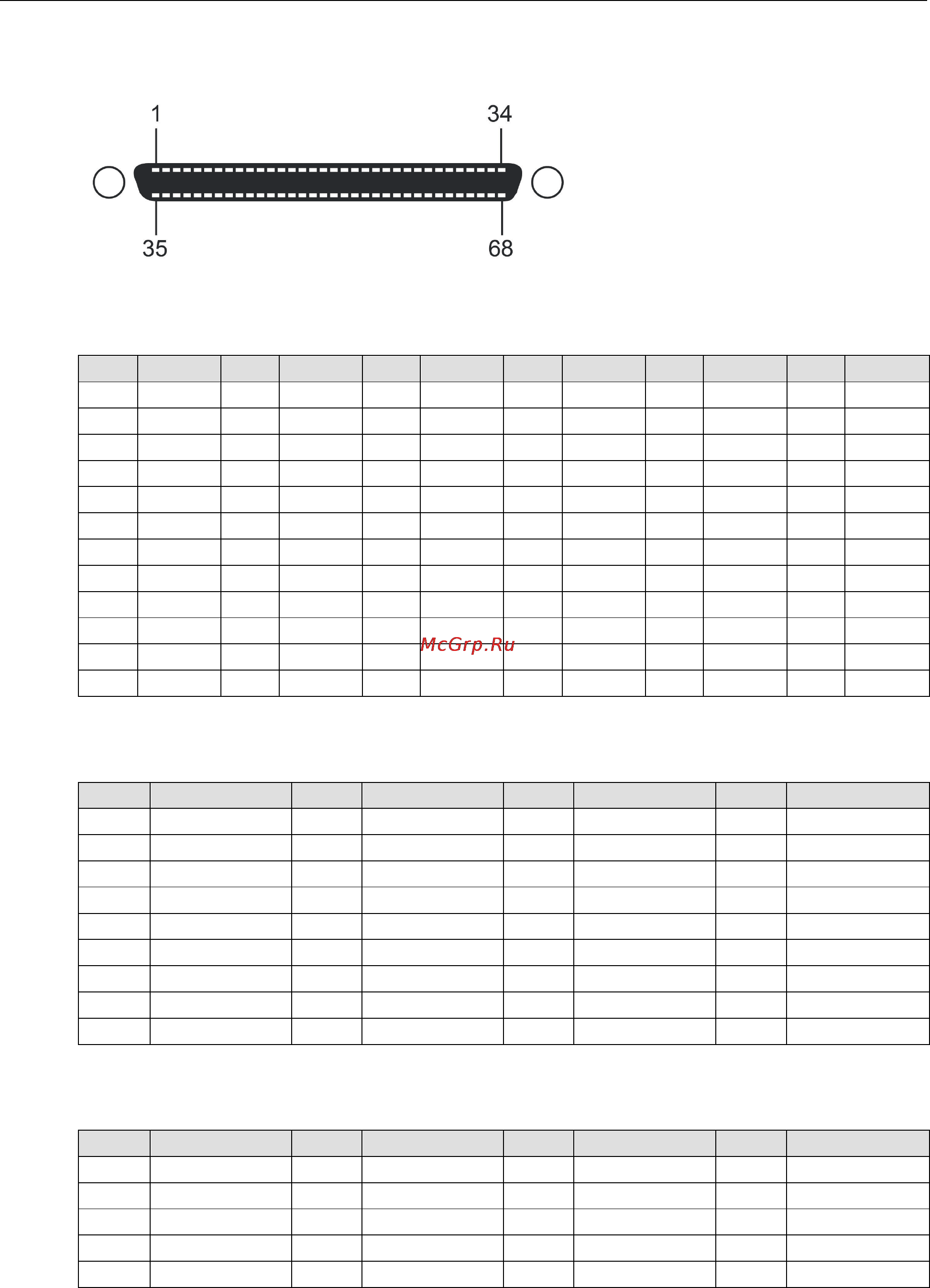

Board Side Pin Assignments-Female SCSI VHDCI68

RS-232

Pin Signal Pin Signal Pin Signal Pin Signal Pin Signal Pin Signal

1 RxD6 13 DCD4 25 TxD2 37 RI7 49 RI5 61 TxD1

2 CTS6 14 RTS4 26 GND 38 RTS7 50 CTS5 62 DSR1

3 RI6 15 RI4 27 TxD0 39 DCD7 51 RxD5 63 DTR1

4 RTS6 16 CTS4 28 DSR0 40 DTR7 52 RxD3 64 DCD1

5 DCD6 17 RxD4 29 DTR0 41 DSR7 53 CTS3 65 RTS1

6 DTR6 18 RxD2 30 DCD0 42 TxD7 54 RI3 66 RI1

7 DSR6 19 CTS2 31 RTS0 43 GND 55 RTS3 67 CTS1

8 TxD6 20 RI2 32 RI0 44 TxD5 56 DCD3 68 RxD1

GND

RTS2

CTS0

DSR5

DTR3

10 TxD4 22 DCD2 34 RxD0 46 DTR5 58 DSR3

11 DSR4 23 DTR2 35 RxD7 47 DCD5 59 TxD3

12 DTR4 24 DSR2 36 CTS7 48 RTS5 60 GND

RS-422 and 4-wire RS-485

Pin Signal Pin Signal Pin Signal Pin Signal

1 TxD6+(B) 18 TxD2+(B) 35 TxD7+(B) 52 TxD3+(B)

5 TxD6-(A) 22 TxD2-(A) 39 TxD7-(A) 56 TxD3-(A)

6 RxD6-(A) 23 RxD2-(A) 40 RxD7-(A) 57 RxD3-(A)

8 RxD6+(B) 25 RxD2+(B) 42 RxD7+(B) 59 RxD3+(B)

9 GND 26 GND 43 GND 60 GND

10 RxD4+(B) 27 RxD0+(B) 44 RxD5+(B) 61 RxD1+(B)

12 RxD4-(A) 29 RxD0-(A) 46 RxD5-(A) 63 RxD1-(A)

13 TxD4-(A) 30 TxD0-(A) 47 TxD5-(A) 64 TxD1-(A)

17 TxD4+(B) 34 TxD0+(B) 51 TxD5+(B) 68 TxD1+(B)

2-wire RS-485

Pin Signal Pin Signal Pin Signal Pin Signal

6 D6-(A) 23 D2-(A) 40 D7-(A) 57 D3-(A)

D6+(B)

D2+(B)

D7+(B)

D3+(B)

9 GND 26 GND 43 GND 60 GND

10 D4+(B) 27 D0+(B) 44 D5+(B) 61 D1+(B)

12 D4-(A) 29 D0-(A) 46 D5-(A) 63 D1-(A)
