PCI Express Boards Software Installation
3-8

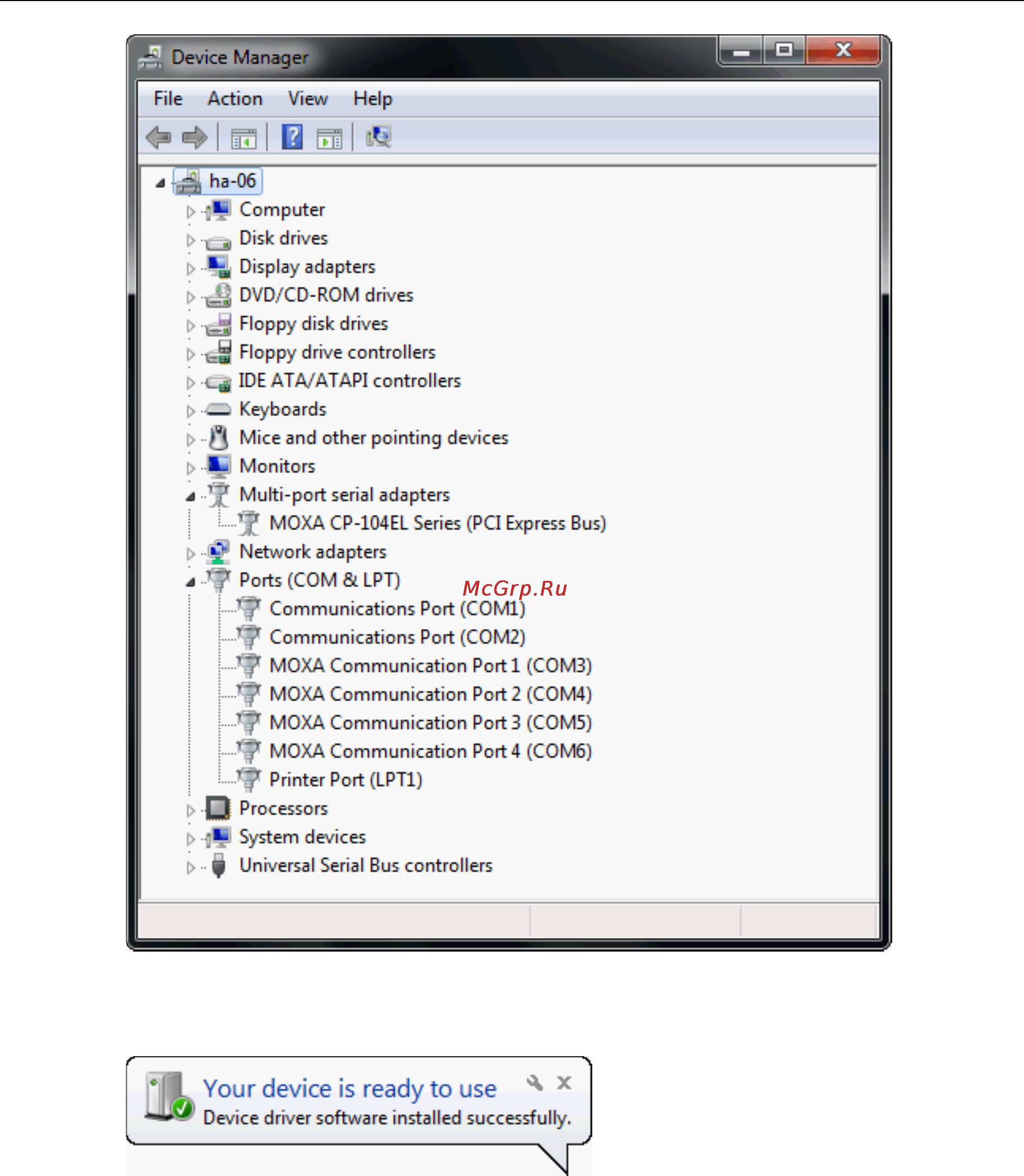

11. In Windows 7, a message stating Your device is ready to use will pop up* to inform you that the
hardware was installed successfully.
*The pop-up message will not appear in Windows 8.
