PCI Express Boards Software Installation
3-16
4. Select Search for driver software in this location, select Include subfolders, and then click Browse.
If the system is a 32-bit (x86) platform, navigate to the \CP-114EL Series\Software\Windows
2008_Vista\x86 folder on the CD. If the system is a 64-bit (x64) platform, navigate to the \CP-114EL
Series\Software\Windows 2008_Vista\x64 folder on the CD, and then click Next to continue.

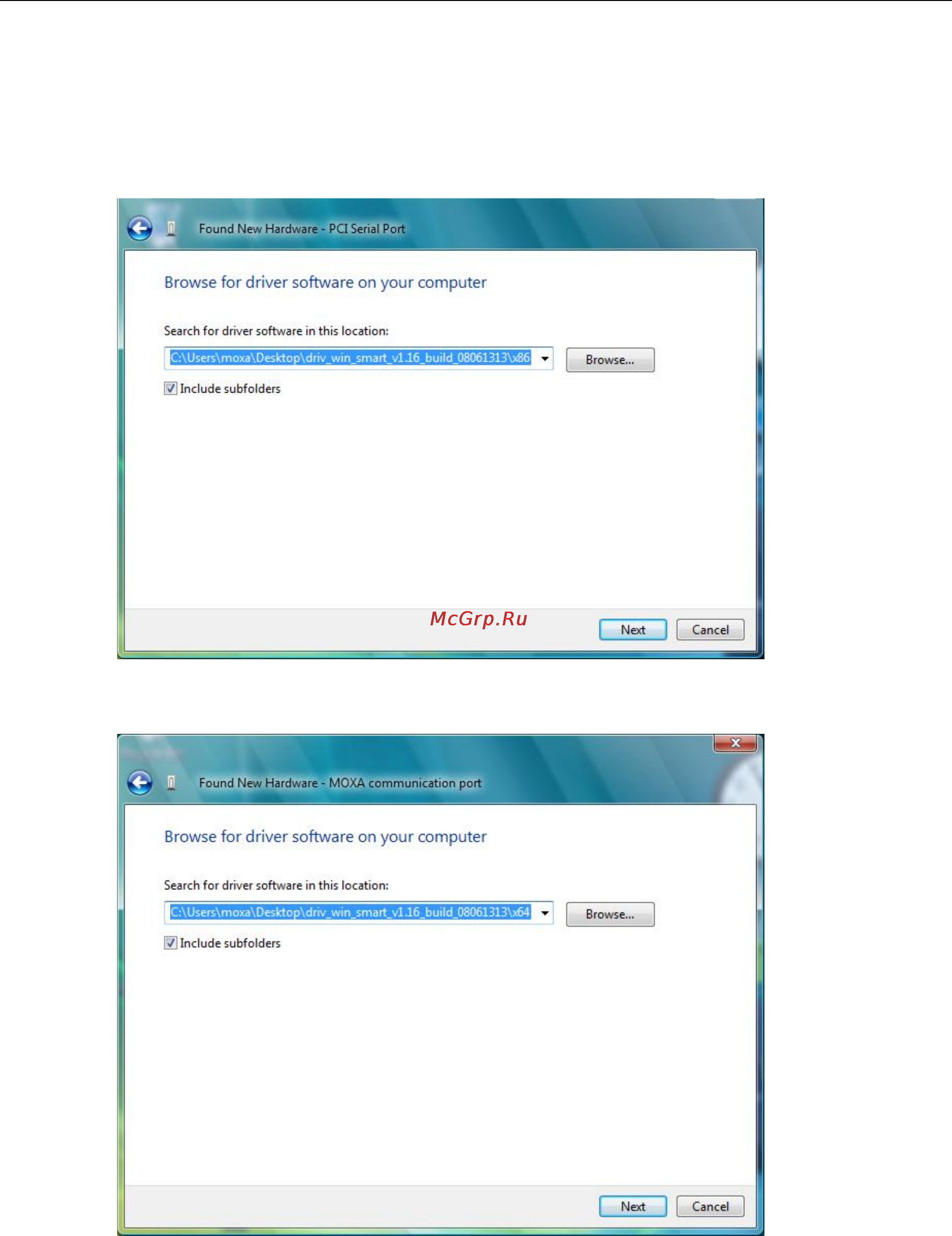

The following figure shows the path for x86.
The following figure shows the path for x64.
