PCI Express Boards Software Installation
3-21
Configuring the Ports
After the driver has been installed, use Device Manager to configure the CP-114EL serial ports.

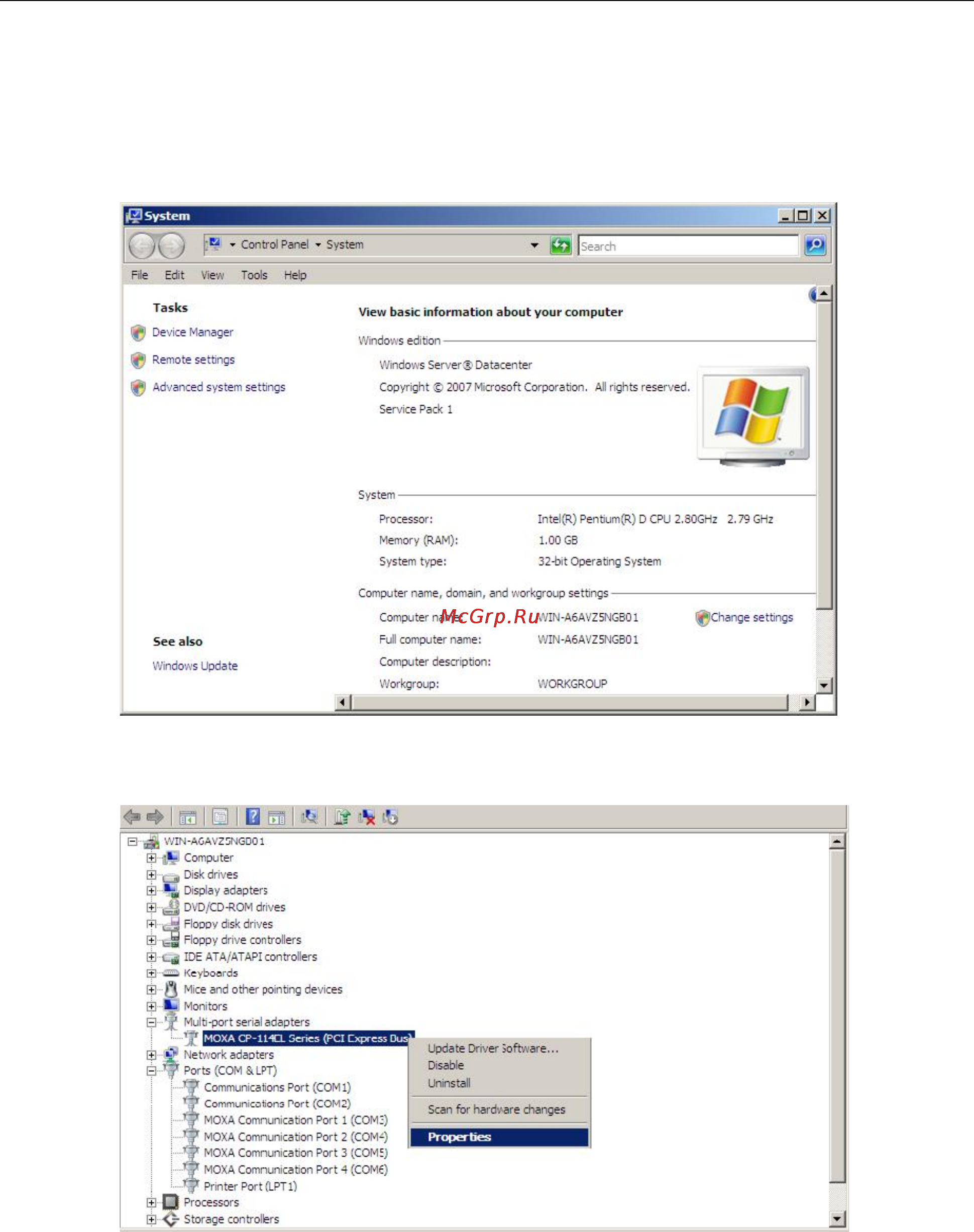

1. Click Start Settings Control Panel System, select the Hardware tab, and then click Device
Manager.
2. Expand the Multi-port serial adapters tab, right click MOXA CP-114EL Series (PCI Express Bus),
and then click Properties to open the board’s configuration panel.
