PCI Express Boards Software Installation
3-43

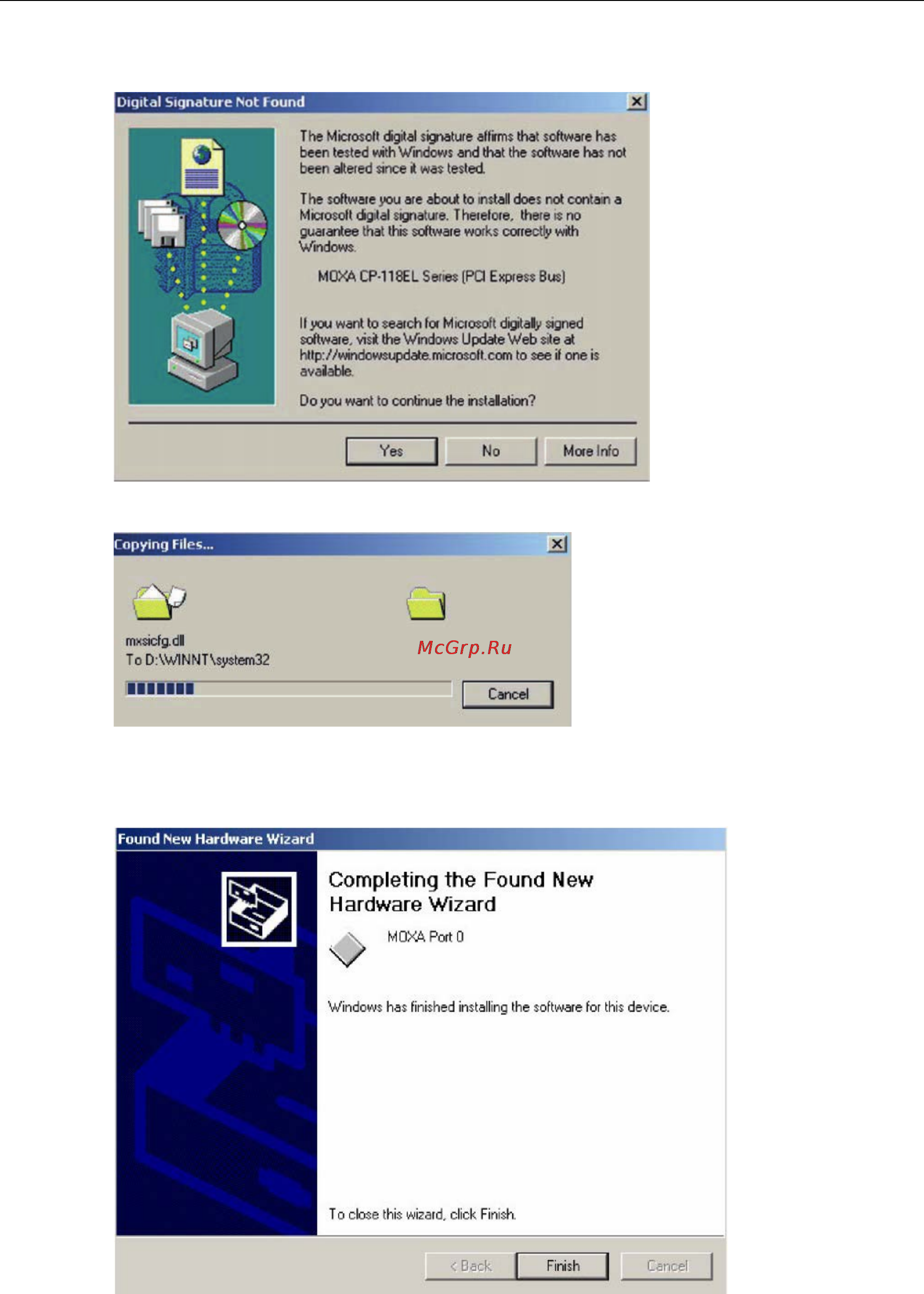

15. The next window that opens cautions you that although this software has not passed Windows Logo testing,
the driver has been tested and shown that it can support the Windows OS. Click Yes to proceed.
16. Wait while the files are copied to your hard drive.
17. After all files have been copied to the system, the Completing the Found New Hardware Wizard
window will open to indicate that it has finished installing Port 0. Click Finish to proceed with the rest of
the installation.
