PCI Express Boards Software Installation
3-32

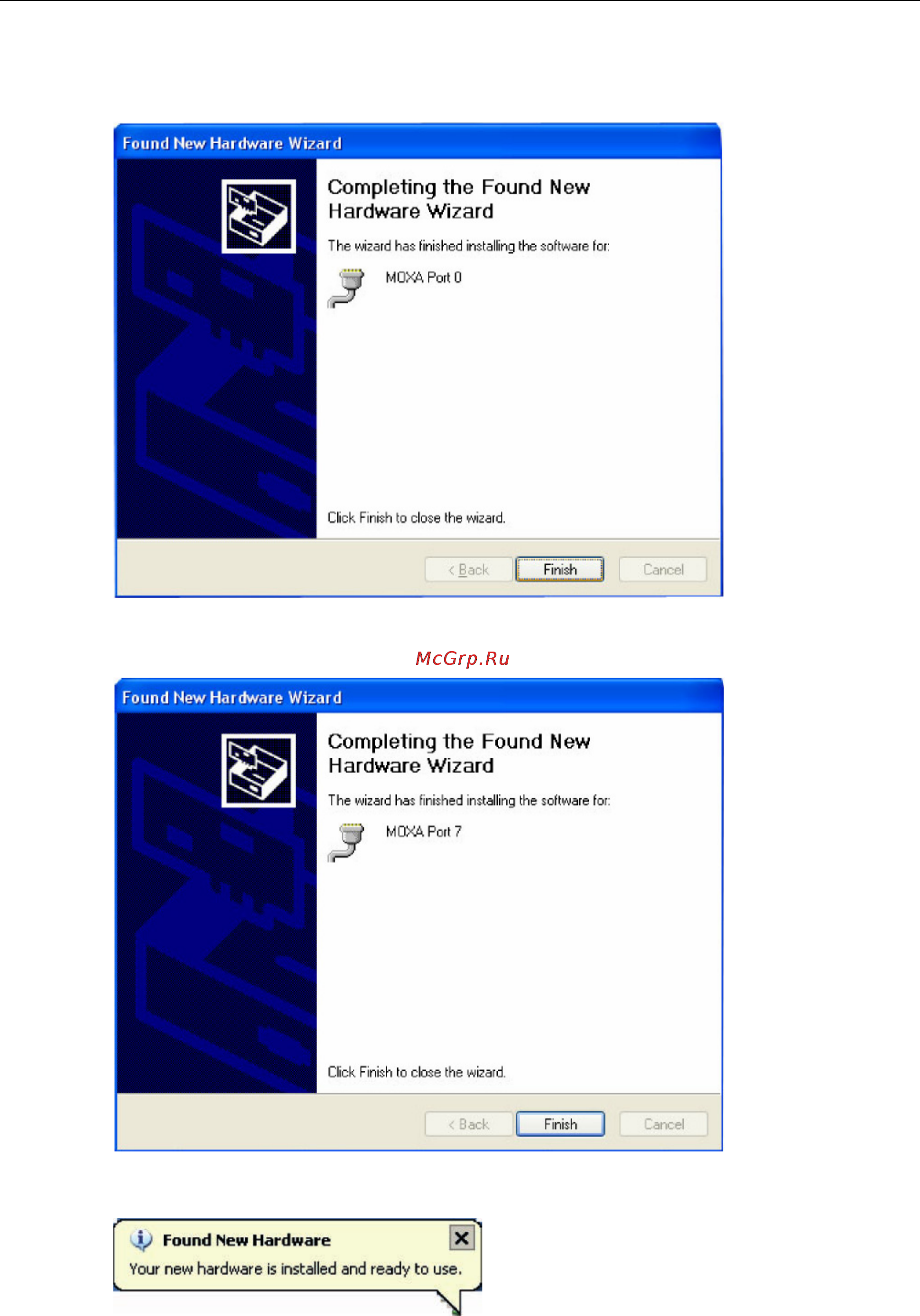

13. After all files have been copied to the system, the Completing the Found New Hardware Wizard
window will open to indicate that it has finished installing Port 0. Click Finish to proceed with the rest of
the installation.
14. Repeat Step 7 through Step 11 for each of the remaining seven ports. The last port to be installed will be
Moxa Port 7, as shown in the following figure.
15. The Found New Hardware balloon will reappear to inform you that the hardware was installed
successfully.
