DA-682A Win7 Software Installing Moxa Software
4-11

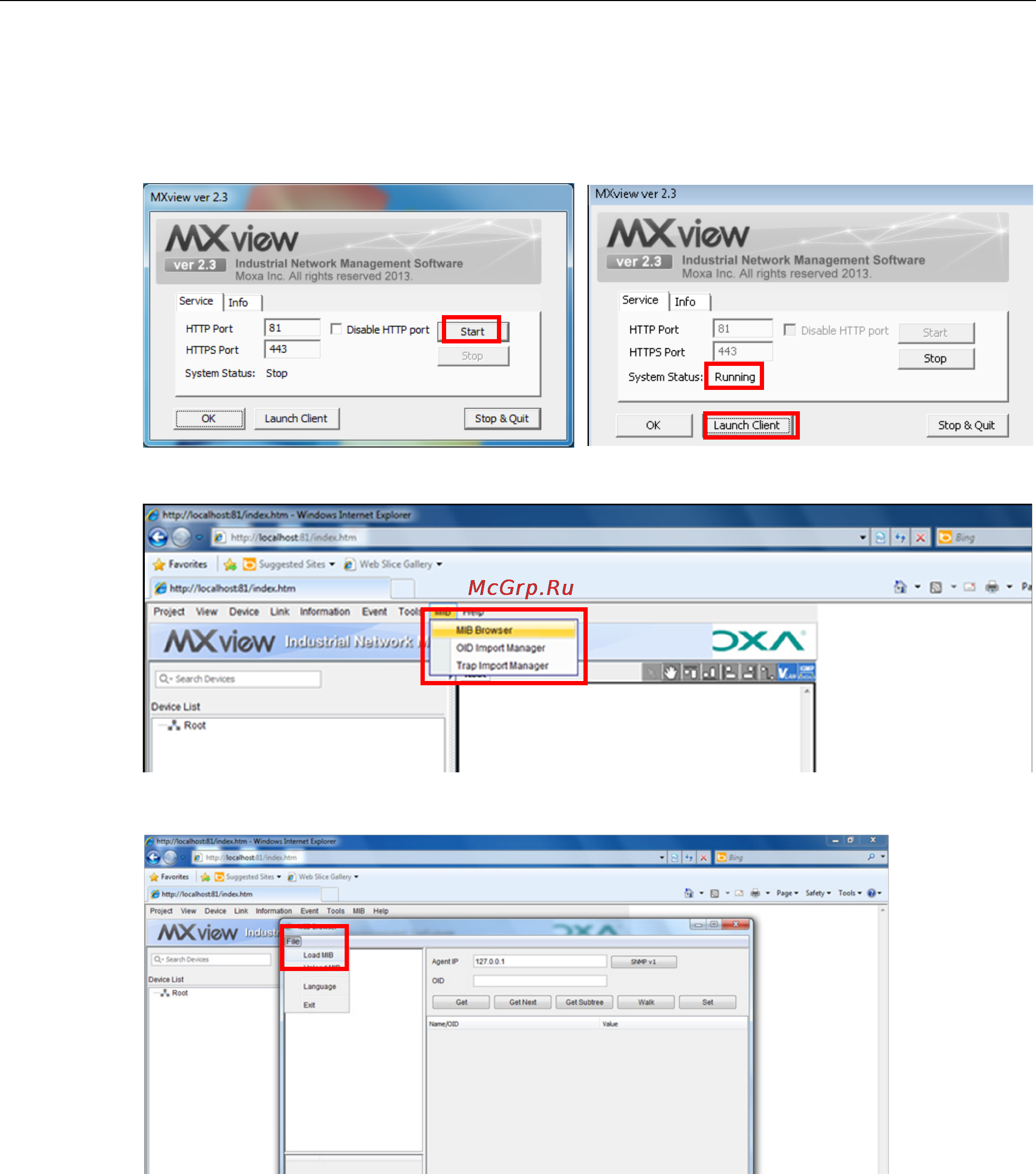

1. Click the MxView Service shortcut on the desktop.
2. Click Start, wait for the System Status indicator to show Running, and then select Launch Client.
When the MXview Setup Wizard appears, click Cancel to skip the setup process and directly open the
MXview interface.
3. Select MIB-->MIB Browser.
4. After the MIB browser has opened, select File from the browser’s upper left corner, and then Load MIB.
