Инструкция по эксплуатации Страница: 30

Moxa DA-682A-C7-W7E [30/53] Da 682a win7 software installing moxa software

DA-682A Win7 Software Installing Moxa Software

4-16

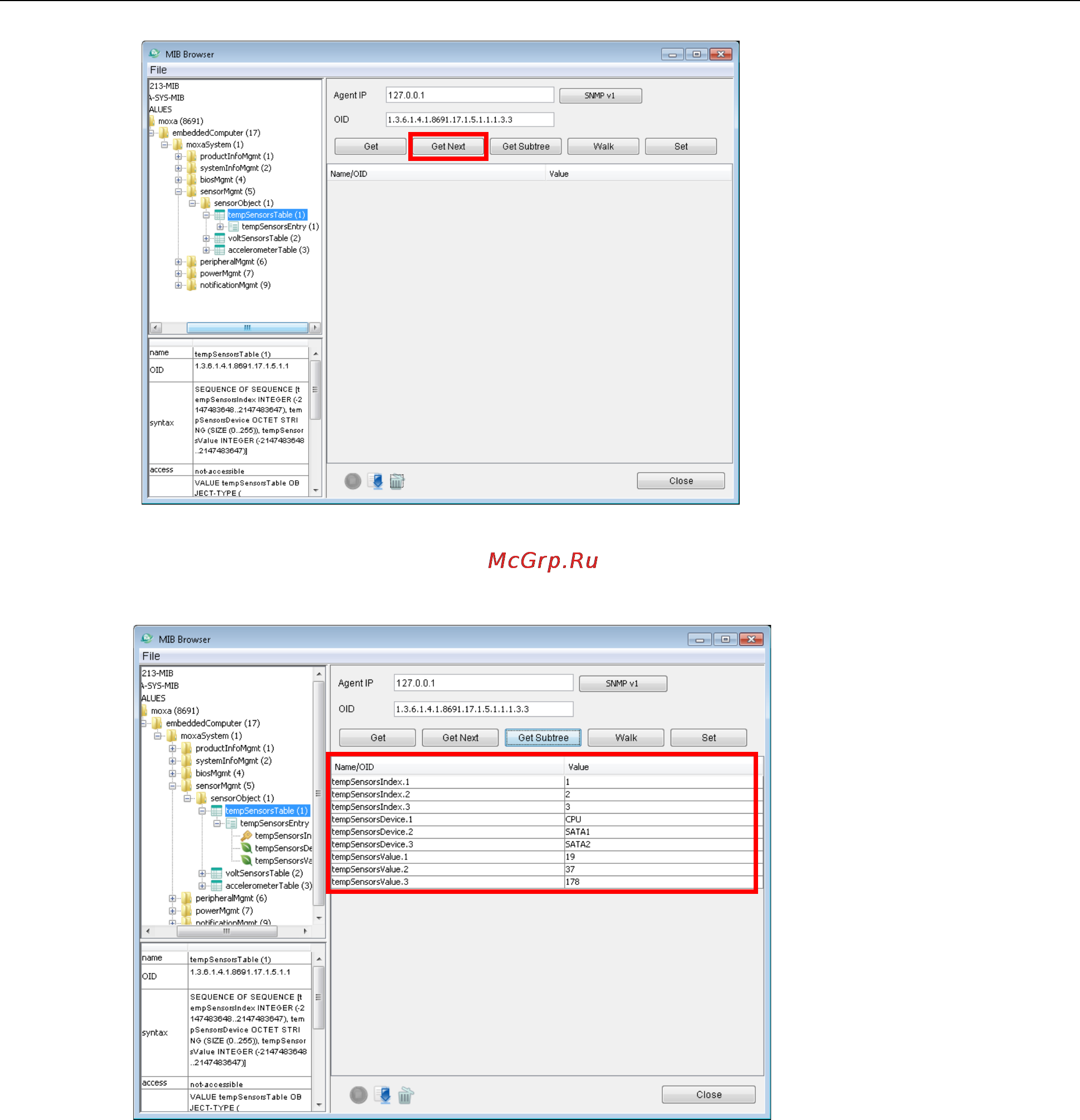

3. All of the T-sensor information should now be displayed in the MIB browser; if it is not, then there is a

problem with your SNMP/Synmap configuration or a malfunction in the T-sensor. The temperatures are all

displayed in Celsius.
